SDS009R

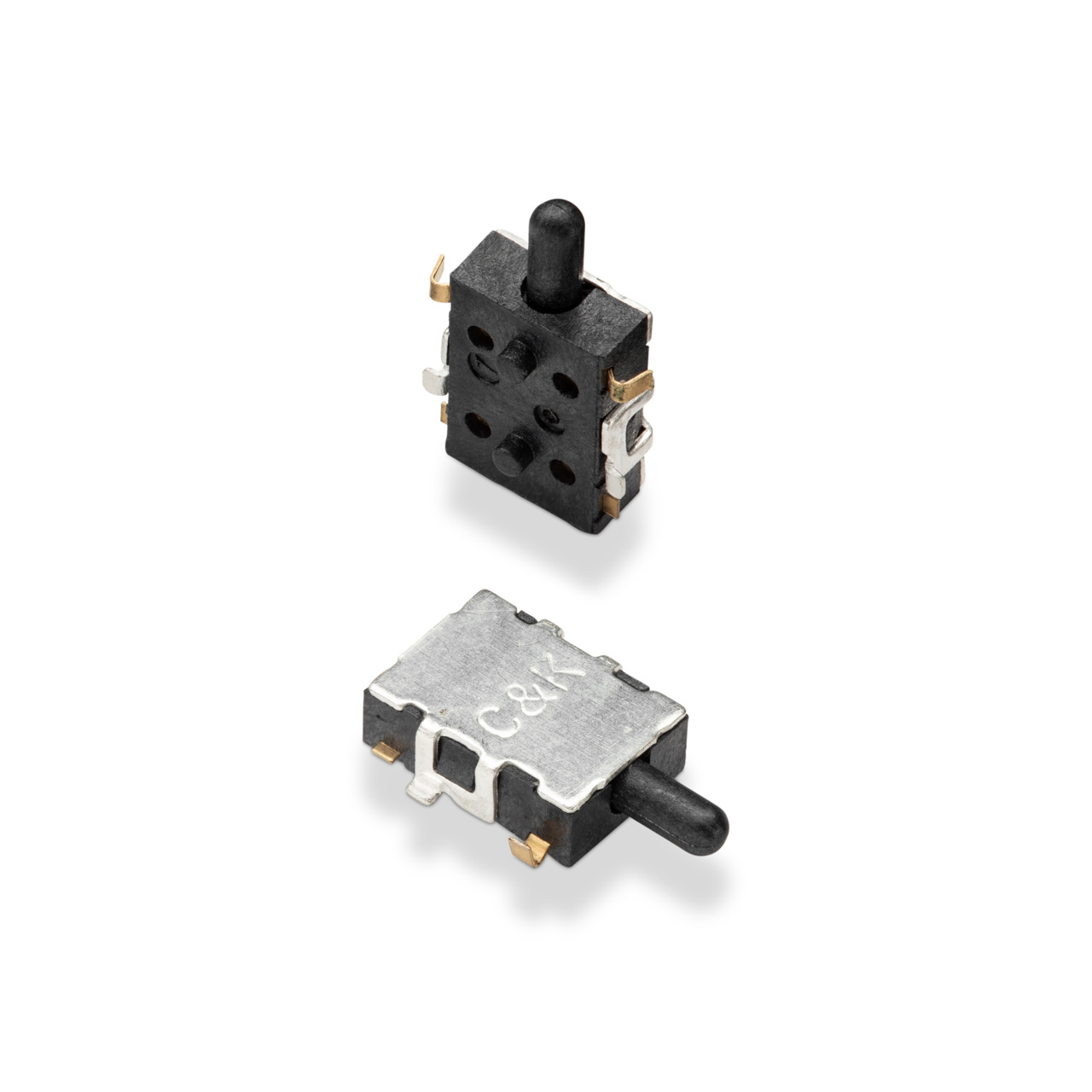

SWITCH SDS009R | Series: SDS
SDS series are side actuated detect switches, manufactured to have a low actuation force (75g maximum) and a low-profile package that sits just 2mm from the PCB. Perfect for consumer electronics, medical devices, and ATCA or MicroTCA devices, the long-lasting SDS series also have a 2mm overtravel, making them ideal for detector applications.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Maximum Current | 100 mA |
Contact Plating | Gold |
Electrical Travel | Min 0.36 mm / Nominal 0.56 mm / Max 0.76 mm |
Electrical Life Cycles | 50000 |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Mounting Type | Post |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | J |
Operating Force | Max 0.75 N |
Activation Orientation | Side actuated |
Washing Process - Compatibility | Not Compatible |
- Low profile package sits just 2mm off PCB
- 2mm overtravel ideal for detector applications
- Low actuation force (75 grams max.)
- RoHS compliant and compatible
- Pick & place compatible, available in tape & reel packaging
- Ultra low current capabilities
SDS009R Applications
- Medical devices
- Consumer electronics
- PCB lock cam detect
- IoT devices
- ATCA and MicroTCA
