SD04H1BD

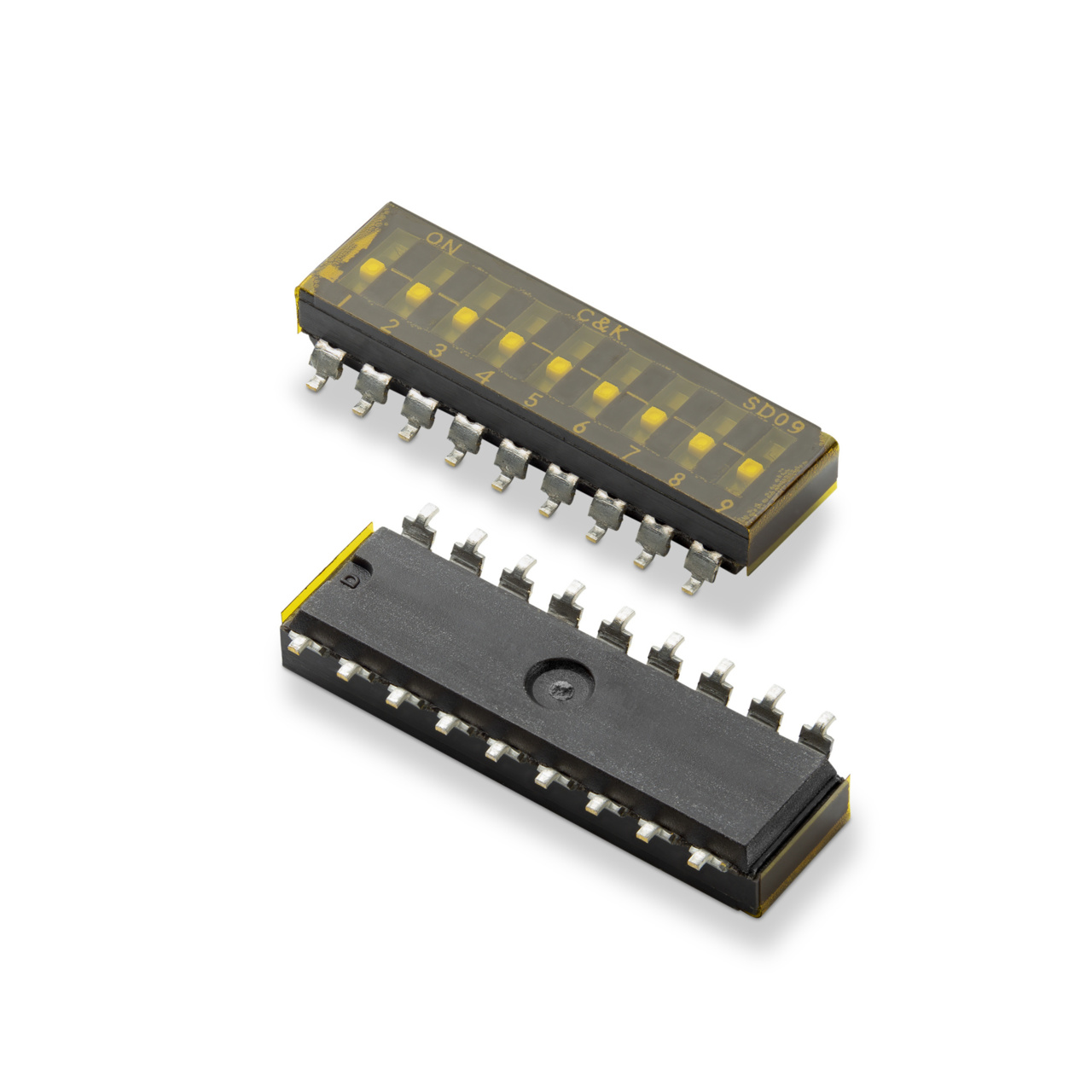

SWITCH SD04H1BD | Series: SD
The SD series are long lasting, high quality, low profile DIP switches that are available in thru-hole or surface mount models and with tape & reel packaging. The SD series’ low-profile design saves space and is perfect for power address switches for industrial controls, logic switching for computers, and various other function controls.
| Property | Value |
|---|---|
Activation Type | Maintain |
Rating - Maximum Current | 100 mA |
Mechanical Life Cycles | 2000 |
Terminals Type | Surface mount |
Terminals Plating | Lead free tin |
Electrical Rating - Activated - Voltage DC | Max 50 Volt |
Contact Plating | Gold |
Terminals Complementary Information | THT |
Illumination | Not applicable |
Activation Orientation | Top actuated |
Operating Force | Max 7.1 N |
Circuitry | SPST |
Electrical Life Cycles | 2000 |
- Thru-hole and surface mount models
- Tape & reel packaging available
- Sealed with top tape
- RoHS compliant
- Low profile design saves space
SD04H1BD Applications
- Address switch for industrial controls
- Logic switching for computers and peripherals
- Function controlling for numerous applications
