TDD01H0SB1R

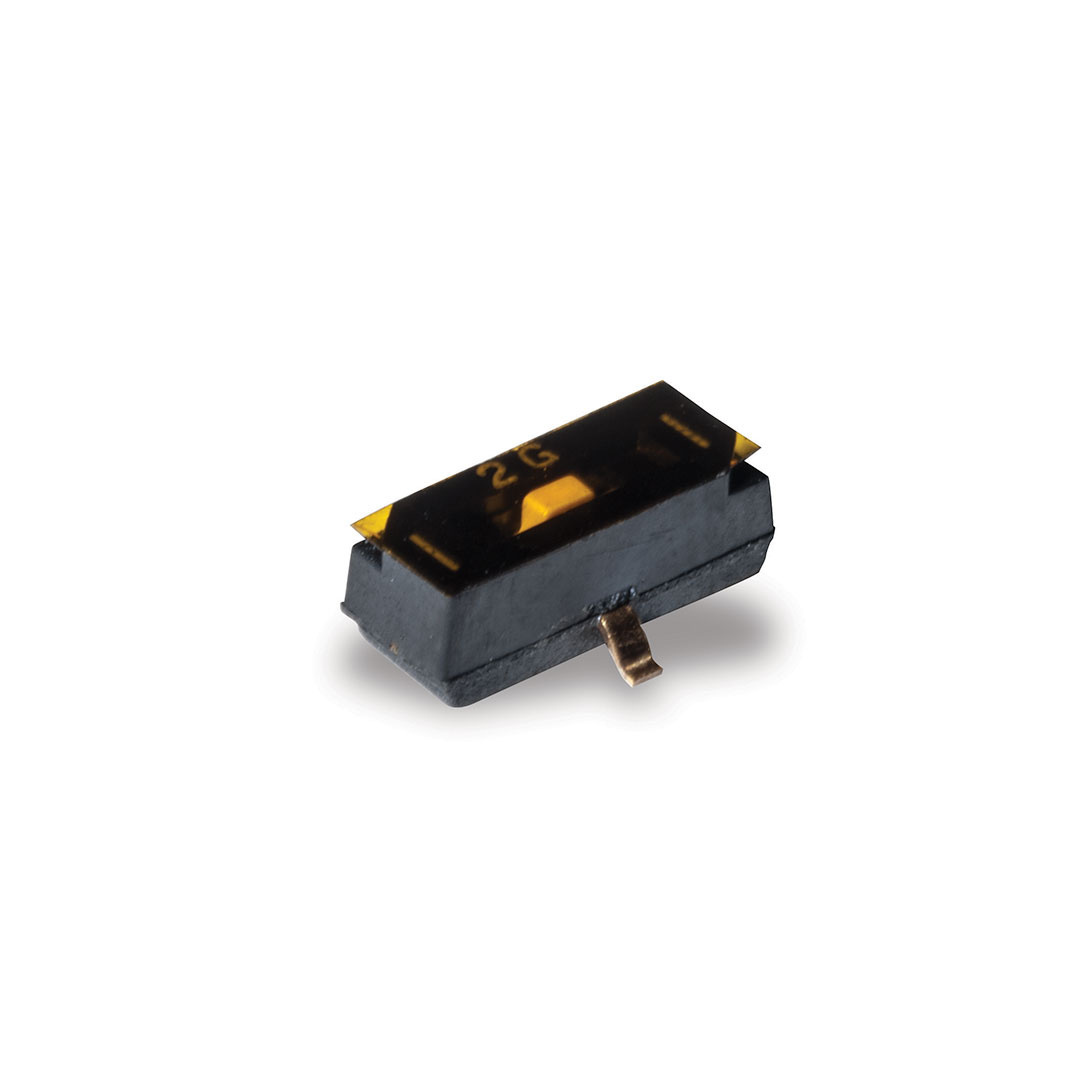

SWITCH TDD01H0SB1R | Series: TDD
Designers working on hand-held electronic devices, portable computers and instrumentation and control systems turn to TDD series jumper switches because of their reputation for being high quality and long lasting. The TDD series includes bifurcated contact for increased electrical reliability and are process sealed to still work perfectly during surface mount soldering or washable processing.
| Property | Value |
|---|---|
Circuitry | SPST |
Activation Type | Maintain |
Rating - Maximum Current | 100 mA |
Mechanical Life Cycles | 1000 |
Terminals Type | Surface mount |
Terminals Plating | Gold |
Electrical Rating - Activated - Voltage DC | Max 50 Volt |
Contact Plating | Gold |
Terminals Complementary Information | G |
Illumination | Not applicable |
Activation Orientation | Top actuated |
Operating Force | Max 4.9 N |
Electrical Life Cycles | 1000 |
- Bifurcated contact for increased electrical reliability
- Process sealed for surface mount soldering and washable processing
- RoHS compliant
TDD01H0SB1R Applications
- Hand-held electronic devices
- Portable computer and electronic devices
- Instrumentation and controls
- Inverters
