TDP04H1SBD1R

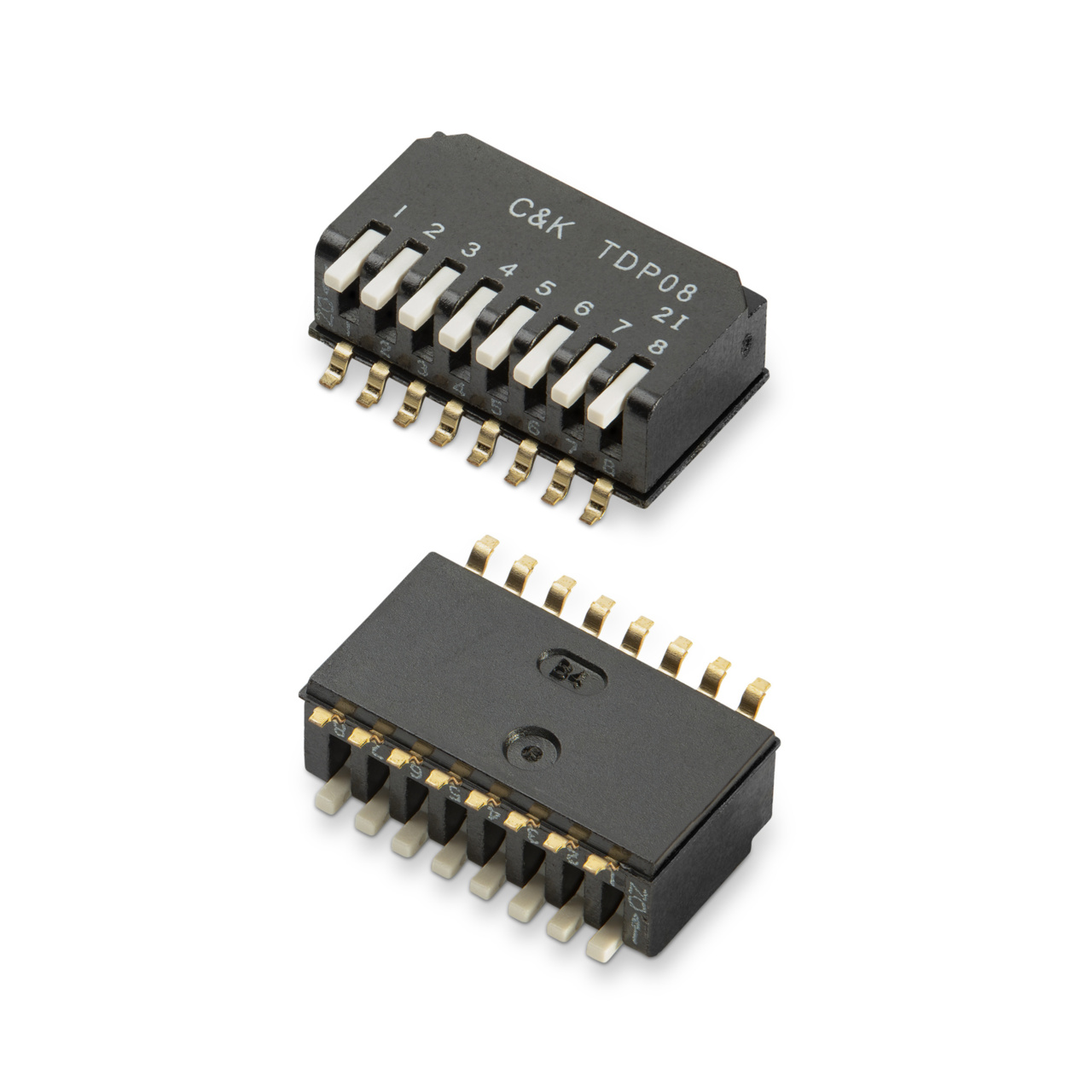

SWITCH TDP04H1SBD1R | Series: TDP
TDP series of ultra-miniature surface mount half-pitch side actuated DIP switches are used by designers in portable and hand held electronic devices as well as various instrumentation and control applications. The TDP series are attractive to designers because they are process sealed for surface mount soldering and washable processing and come with side actuation to allow for visual indication of the on/off position in horizontal applications.
| Property | Value |
|---|---|
Activation Type | Maintain |
Rating - Maximum Current | 100 mA |
Mechanical Life Cycles | 1000 |
Terminals Type | Surface mount |
Terminals Plating | Gold |
Electrical Rating - Activated - Voltage DC | Max 50 Volt |
Contact Plating | Gold |
Terminals Complementary Information | G |
Illumination | Not applicable |
Activation Orientation | Side actuated |
Operating Force | Max 4.9 N |
Circuitry | SPST |
Electrical Life Cycles | 1000 |
- World’s first ultra-miniature SMT half-pitch side-actuated DIP
- Side actuation allows visual indication of on/off position in horizontal applications
- Process sealed for surface mount soldering and washable processing
- RoHS compliant
- Lead free
TDP04H1SBD1R Applications
- Hand-held electronic devices
- Portable computer and electronic devices
- Instrumentation and controls
