8631ZBD2

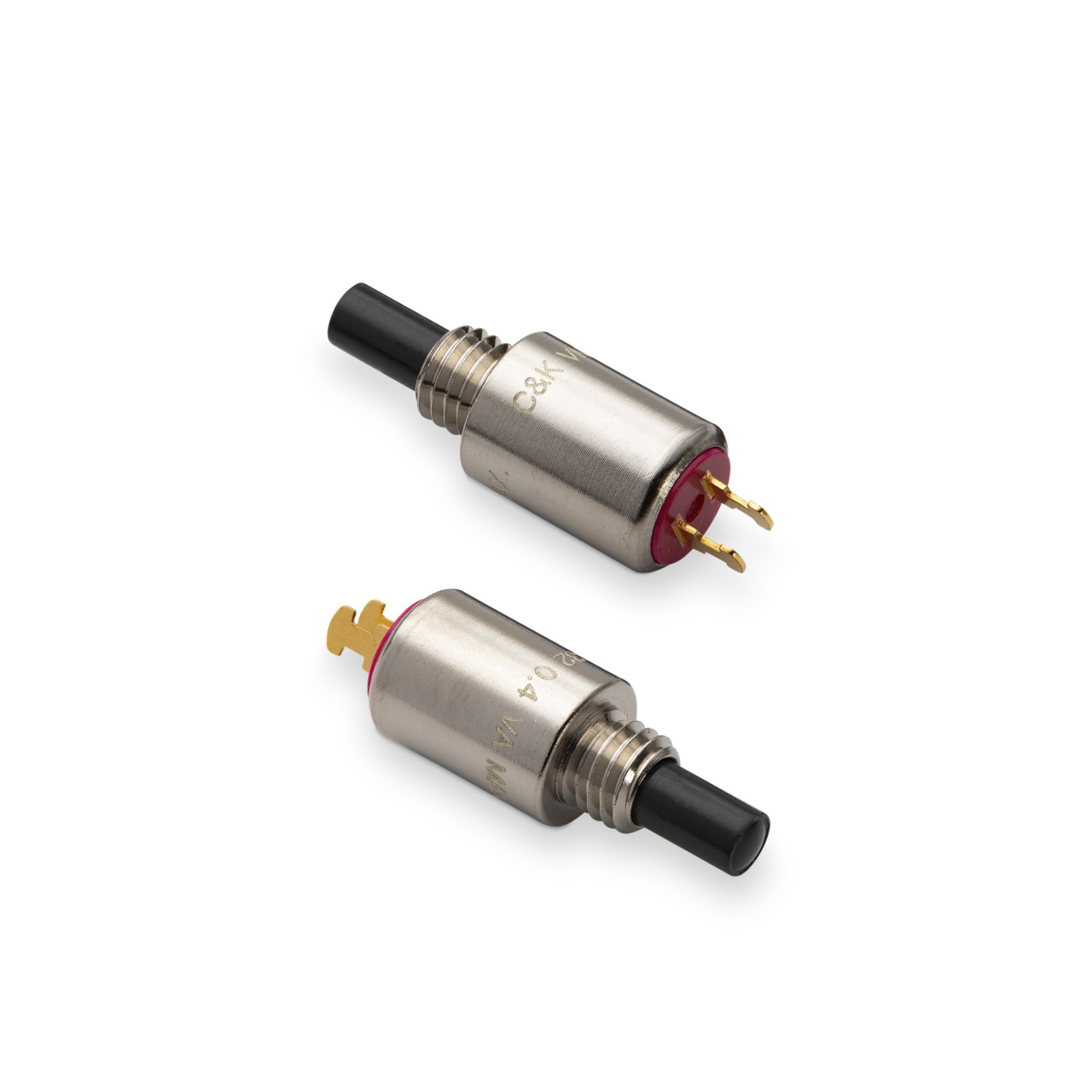

SWITCH 8631ZBD2 | Series: 8600
The 8600 series microminiature pushbutton switches are the perfect size for applications where space is limited. Commonly used in the networking, detection and telecommunications industry, the 8600 switches are available in closed models with optional overtravel.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Switch Function | Mom.-Off-Mom |
Rating - Maximum Current | 250 mA |
Operating Force | Nominal 1.4 N |
Mounting Method | Nut |
Seal | Epoxy |
Illumination | Not applicable |
Terminals Plating | Gold |
Contact Plating | Gold |
Actuator | Round Plunger, black |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Terminals Type | Solder Lugs |
- Available with overtravel
- RoHS compliant
- Normally closed models available
- Microminiature size ideal for applications where space is limited
8631ZBD2 Applications
- Telecommunications and networking equipment
- Computers and peripherals
- Detection
