8731SHZBE

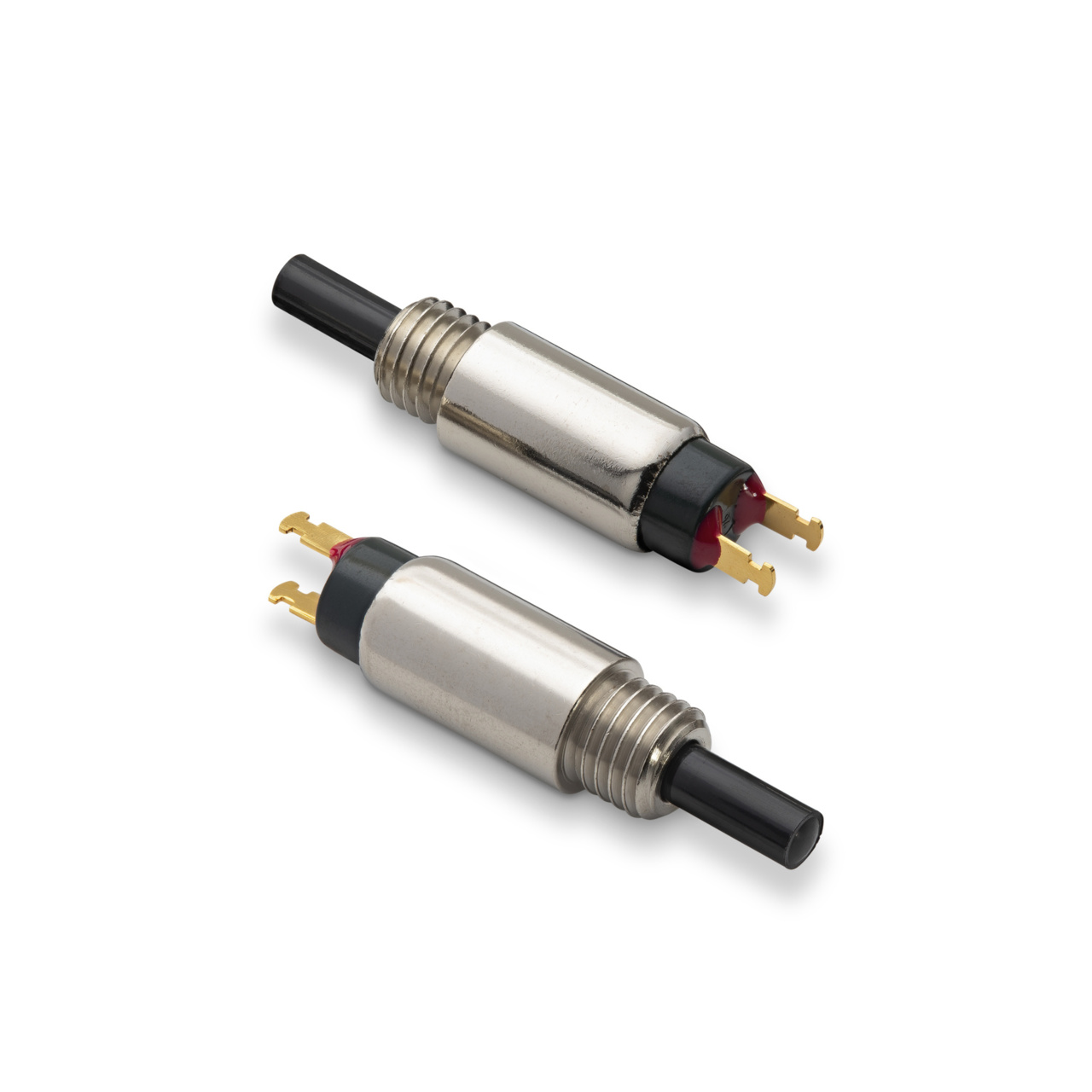

SWITCH 8731SHZBE | Series: 8700
Designers in the medical test equipment and telecommunications industries turn to the 8700 series of overtravel pushbutton switches when engineering their latest product applications. With a long electrical lifecycle of 100k cycles, a heavy-duty brass plunger and extended pre-travel or overtravel options, the 8700 series give designers the highly-responsive, long-lasting switches they need to succeed.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Switch Function | Off-None-Mom |
Rating - Maximum Current | 50 mA |
Operating Force | Nominal 1.31 N |
Electrical Life Cycles | 100000 |
Seal | Epoxy |
Illumination | Not applicable |
Terminals Plating | Gold |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Contact Plating | Gold |
Actuator | Round, Plunger 0.390inch high |
Terminals Type | Solder Lugs |
- Extended pre-travel or over-travel
- Heavy-duty brass plunger
- Long electrical life — 100K cycles
- RoHS compliant
8731SHZBE Applications
- Telecommunications
- High-end Instrumentation
- Medical & test equipment
- Detection
