AP0029

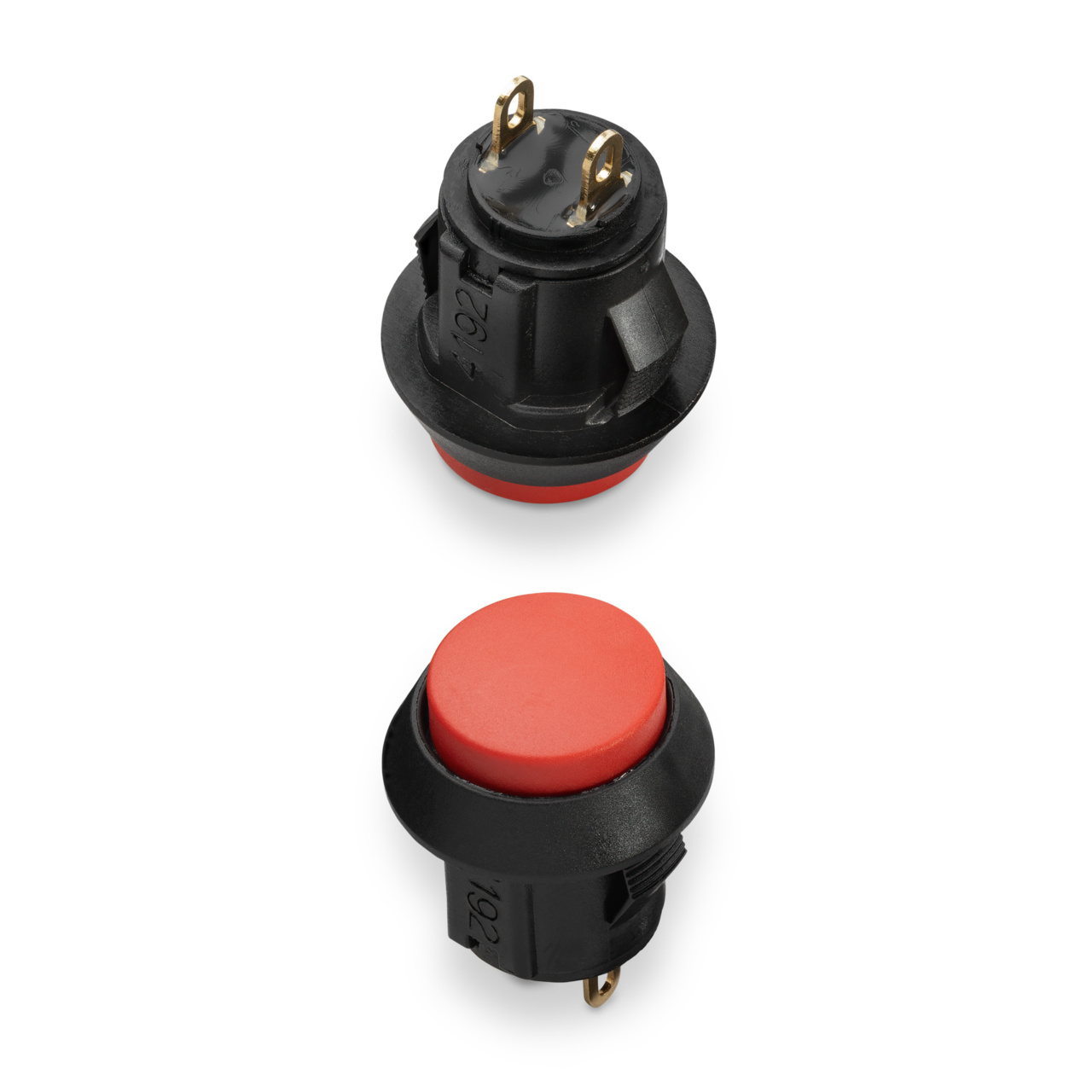

SWITCH AP0029 | Series: AP
AP series industrial pushbutton switches are found in industrial applications, because of their ability to withstand harsh environments. AP switches are IP67 sealed and come with optional illumination and multiple colored caps, ensuring they can match any design or style.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Switch Function | Off-Mom. |
Rating - Maximum Current | 200 mA |
Electrical Travel | Min 1.3 mm / Nominal 1.55 mm / Max 1.8 mm |
Mechanical Life Cycles | 1000000 |
Electrical Life Cycles | 500000 |
Seal | Epoxy |
Ingress Protection | IP 67 |
Terminals Plating | Gold over silver |
Electrical Rating - Activated - Voltage DC | Max 50 Volt |
Electrical Rating - Activated - Voltage AC | Max 125 Volt |
Contact Plating | Gold |
- IP67 sealed
- Illumination / non-illumination
- Multiple colored caps
- Threaded or snap-in mounting
- Caps available separately
- RoHS compliant
- 1,000,000 life cycle
AP0029 Applications
- Harsh environments
- Off-Road
- Industrial
- Medical
- Transportation
- Joystick control modules
- Gaming
- Military
