ATP16DL5312B4SE04G

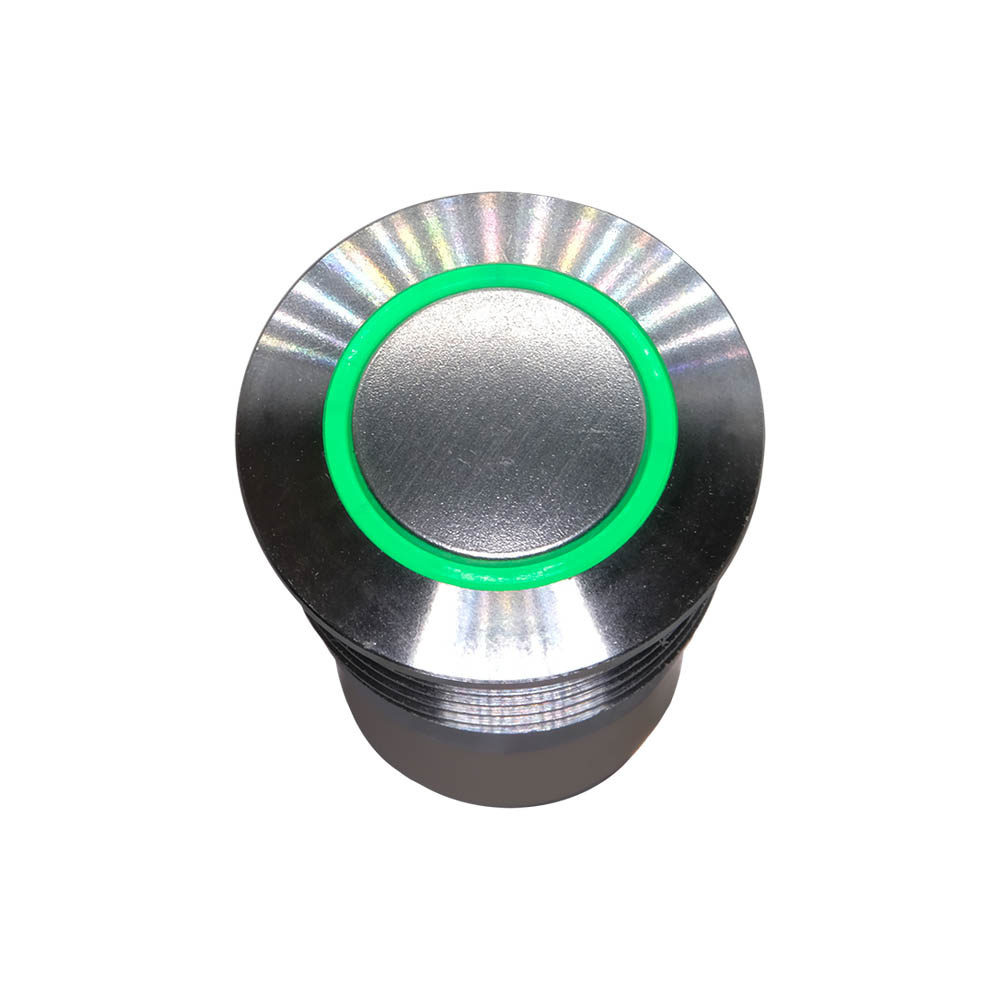

ATP16DL5312B4SE04G | Series: ATP16
ATP16 series offers anti-vandal sealed pushbutton switches. The new high-strength, lightweight switches are IP67 rated, ensuring their suitability for operation in harsh conditions and ability to withstand potential malicious damage. The 16 mm pushbuttons use a scratch-resistant actuator with housings made from robust stainless steel or AL Alloy making them particularly effective for use in remote and unsupervised locations where resilience to damage from vandalism is important, such as push-to-talk devices. Non-illuminated and illuminated pushbuttons are available to fit your application needs.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Permanent |
Rating - Maximum Current | 2 A |
Operating Force | Min 3 N / Nominal 4.5 N / Max 6 N |
Mechanical Life Cycles | 100000 |
Ingress Protection | IP 67 |
Illumination | Yes |
Light - Color | Red |
Light - Typical Forward Voltage | 12 |
Electrical Rating - Activated - Voltage DC | Max 36 Volt |
Contact Plating | Silver |
Actuator | Dome |
Activation Orientation | Top actuated |
Terminals Type | Solder Lugs |
- Momentary or Lock version
- IP67 sealed
- Rated at 2A / 36 Vdc
- Various colors of LED illuminate indicator
- RoHS compliant
- 1,000,000 life cycle
- Choices of actuator with ring or power logo
ATP16DL5312B4SE04G Applications
- Alarm, safety and security systems
- Intercom “push-to-talk” devices
- Automatic food and drink vending machines
- Parking lot ticket machines & ticket paying stations
- Industrial Instruments
