ATPS19SL5A06M0SA04G

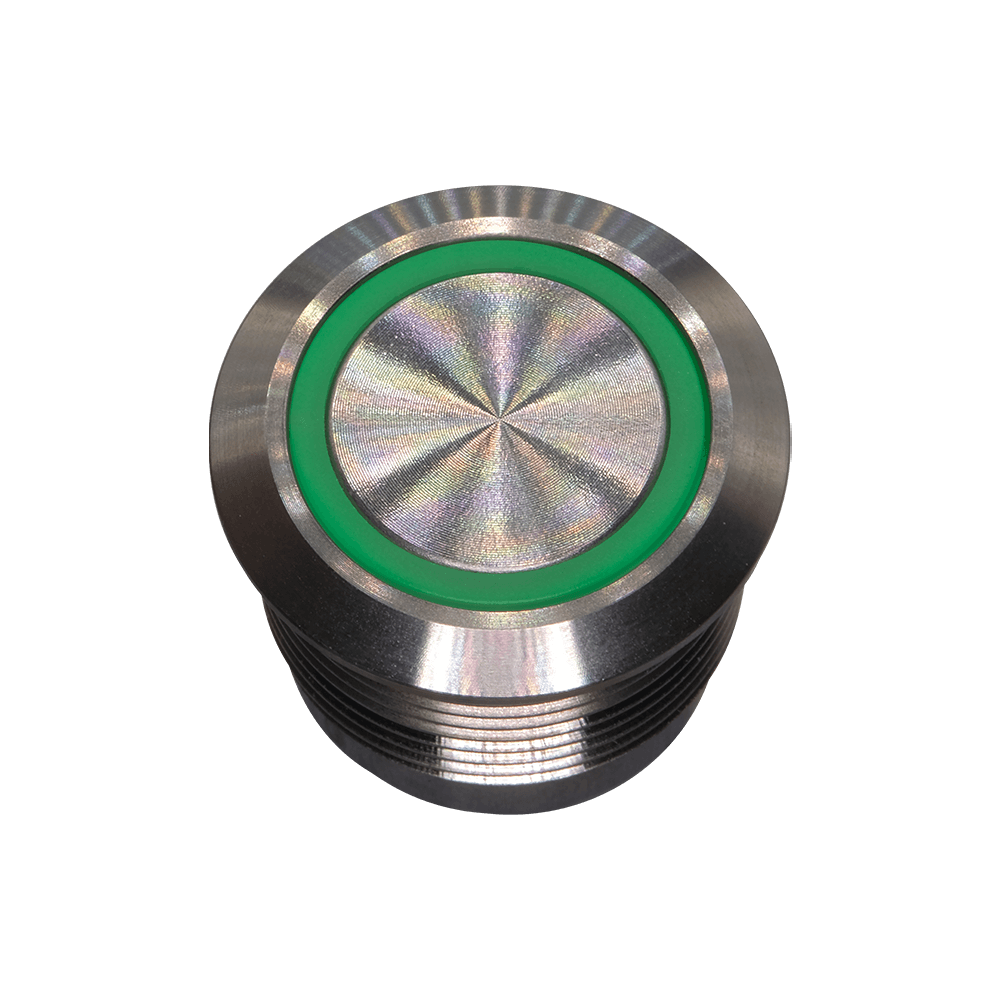

ATPS19SL5A06M0SA04G | Series: ATPS19
The ATPS19 series is designed to withstand deliberate damage and vandalism, which in turn can reduce the need for costly in-field repairs and product recalls. Besides being vandal proof, the new switches share many characteristics of other ATP switches in the range, including being lightweight, IP67-rated, and corrosion resistant. As the devices integrating this switch are often outdoors, the switch has been designed to withstand extreme environmental conditions and water exposure.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Maximum Current | 2 A |
Operating Force | Min 3 N / Nominal 4.5 N / Max 6 N |
Mechanical Life Cycles | 1000000 |
Electrical Life Cycles | 200000 |
Ingress Protection | IP 67 |
Illumination | Yes |
Light - Color | Red-Green |
Light - Typical Forward Voltage | 6 |
Terminals Plating | Gold |
Electrical Rating - Activated - Voltage DC | Max 36 Volt |
Contact Plating | Gold |
Activation Orientation | Top actuated |
Terminals Type | Solder Lugs |
- Momentary
- IP67 sealed & IK10 (Stainless steel bushing)
- Rated at 2A / 36 Vdc
- Various colors of LED illuminate indicator
- RoHS compliant
- 1,000,000 mechanical lifecycles
- Choices of actuator with ring or power logo
ATPS19SL5A06M0SA04G Applications
- Alarm, safety and security systems
- Intercom “push-to-talk” devices
- Automatic food and drink vending machines
- Parking lot ticket machines & ticket paying stations
- Industrial Instruments
