SERULRDAUOA
SERUL RD AU OA | Series: DIGITAST

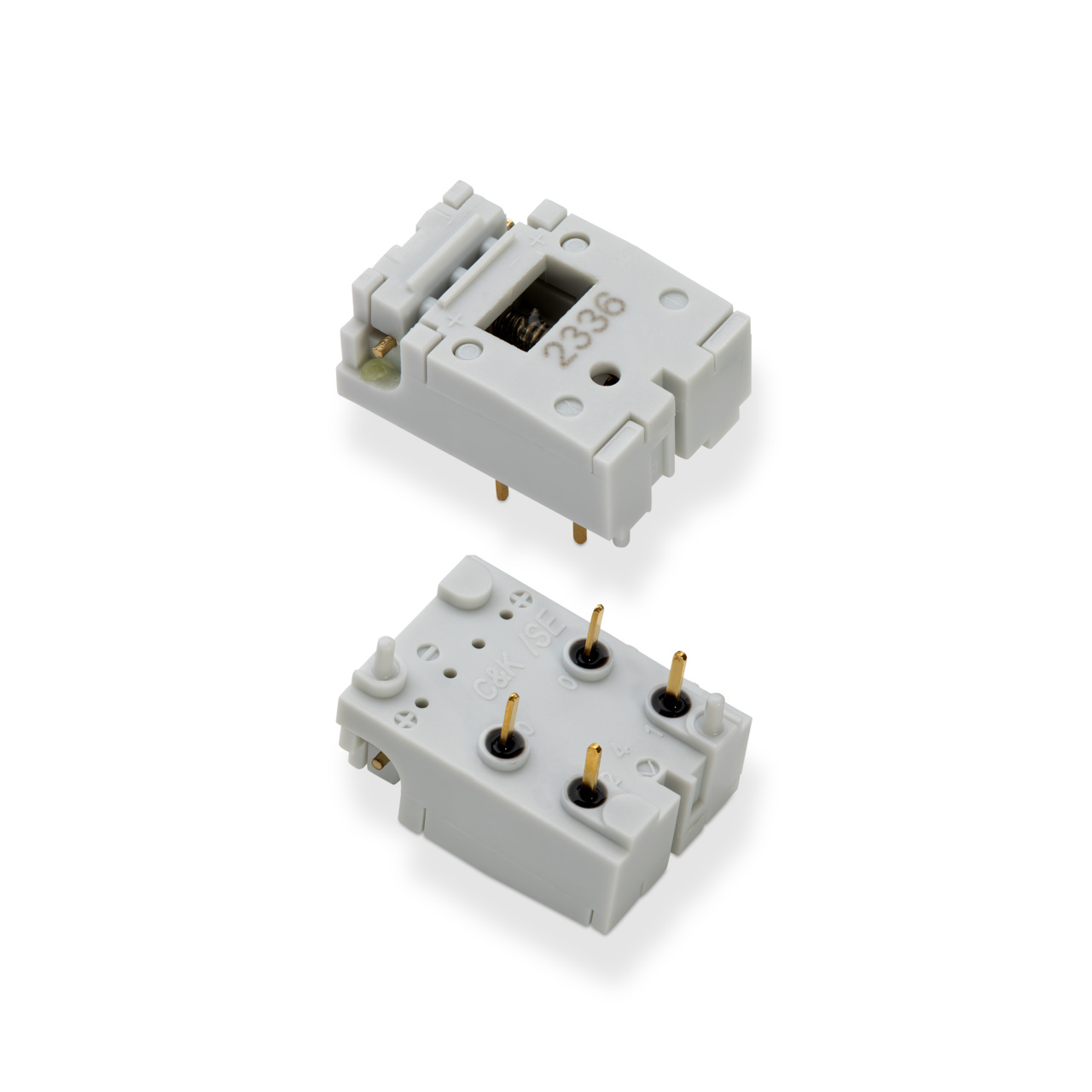

With Digitast Micro-miniature SPDT keyswitches, designers gain a reliable, low-level switching solution for their audio and lighting consoles, instrumentation, and industrial electronics applications that comes ready to implement on a PCB. Available in momentary or push-push formats, Digitast keyswitches can also be delivered in a variety of different button options or with an optional latching function.
| Property | Value |
|---|---|
Circuitry | SPDT NO |
Activation Type | Momentary action |
Switch Function | On-Off-On |
Rating - Maximum Current | 100 mA |
Operating Force | Min 1 N / Nominal 1.5 N / Max 2 N |
Electrical Travel | Nominal 3 mm |
Mechanical Life Cycles | 1000000 |
Illumination | Yes |
Terminals Plating | Gold |
Electrical Rating - Activated - Voltage DC | Max 24 Volt |
Contact Plating | Gold |
Activation Orientation | Top actuated |
Actuator | Without |
Terminals Type | Thru Hole |
Light - Color | Red |
- High reliability/long life
- Designed for low level switching
- Ready to implement on PCB
- Latching function available
- Several button options
- RoHS compliant and compatible
SERULRDAUOA Applications
- Medical
- Instrumentation
- Industrial electronics
- Audio electronics
SERULRDAUOA Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 753000-0003 | SERUL RD AU OA | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
