E112SD1AGE
SWITCH E112SD1AGE | Series: E010

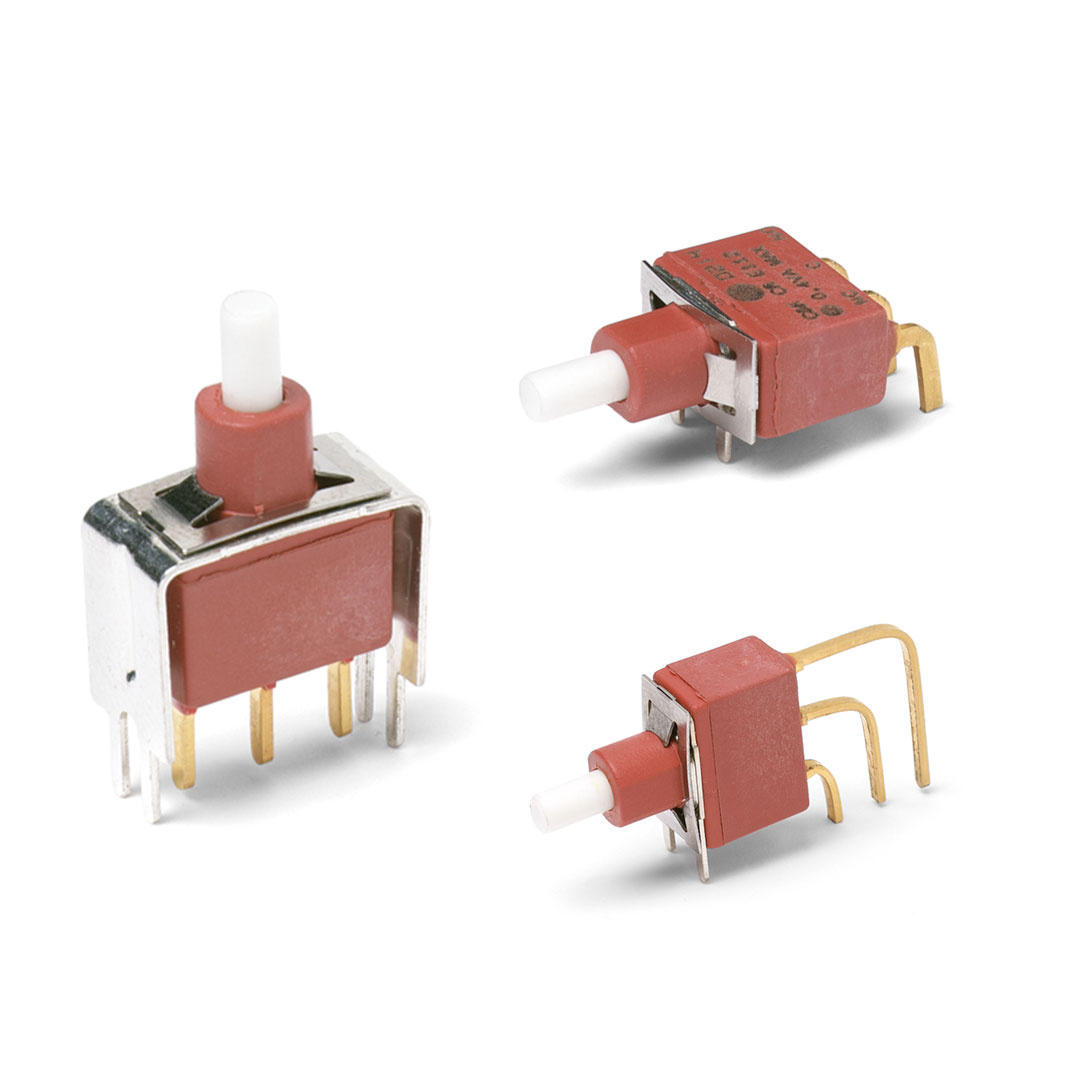

The E010 series of sealed momentary pushbutton switches feature a long-life contact design and come with an optional snap-fitting plunger. Typically found in the telecommunications and networking industry, E010 switches accept a variety of caps, are RoHS compliant and are process sealed to withstand soldering and cleaning.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Momentary action |
Switch Function | On-None-Mom |
Rating - Maximum Current | 4 A |
Electrical Life Cycles | 40000 |
Seal | Epoxy |
Illumination | Not applicable |
Terminals Plating | Gold |
Terminals Complementary Information | Right Angle, PC Thru-hole |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Electrical Rating - Activated - Voltage AC | Max 125 Volt |
Contact Plating | Gold over silver |
Washing Process - Compatibility | Yes |
Actuator | Round, Plunger 0.222inch high |
Terminals Type | Thru Hole |
- Process sealed, withstands soldering and cleaning
- RoHS compliant models available
- Long life contact design
- Snap-fitting plunger available, accepts a variety of caps
E112SD1AGE Applications
- Instrumentation
- Telecommunications and networking equipment
- Computers and peripherals
