KS11R22CQE

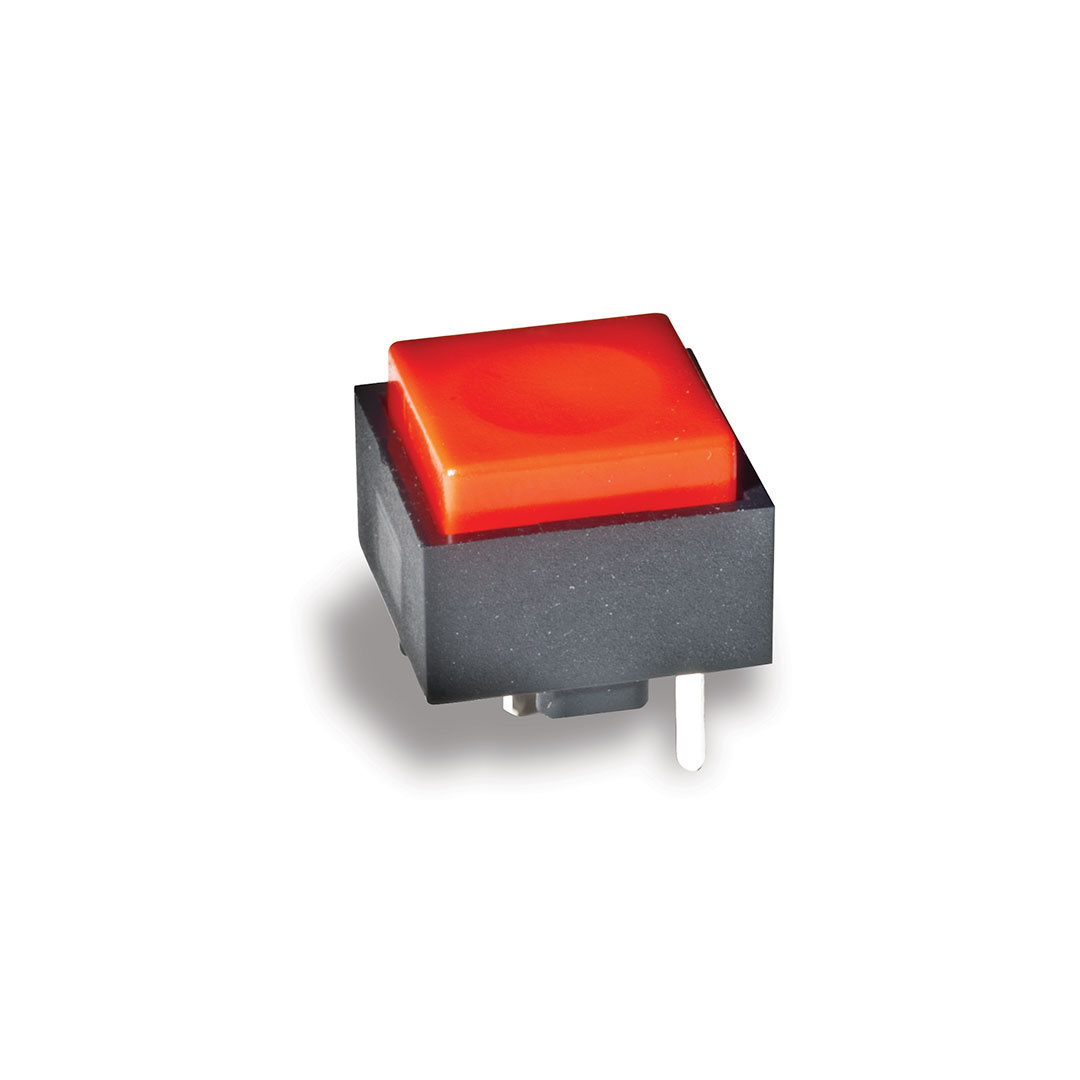

SWITCH KS11R22CQE | Series: KS
Available in a variety of cap colors and either an SPST or SPDT configuration, the KS series single pole keyswitch is found in products throughout the instrumentation and telecommunications industries. KS series keyswitches are built to meet all high performance expectations while still retaining a consistent tactile feel for the end-user over a long period of time.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Switch Function | On-On-Mom |
Rating - Maximum Current | 25 mA |
Electrical Life Cycles | 100000 |
Seal | Epoxy |
Illumination | Not applicable |
Terminals Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 50 Volt |
Electrical Rating - Activated - Voltage AC | Max 50 Volt |
Contact Plating | Silver |
Activation Orientation | Top actuated |
Color & Finish | CAP- Black |
Washing Process - Compatibility | Not Compatible |
Actuator | Square Button CAP- Black |
Terminals Type | Thru Hole |
- Positive tactile feel
- SPST and SPDT configurations
- RoHS compliant
- Variety of cap colors
KS11R22CQE Applications
- Telecommunications
- Industrial
- Instrumentation
