PN21LHNA03QE

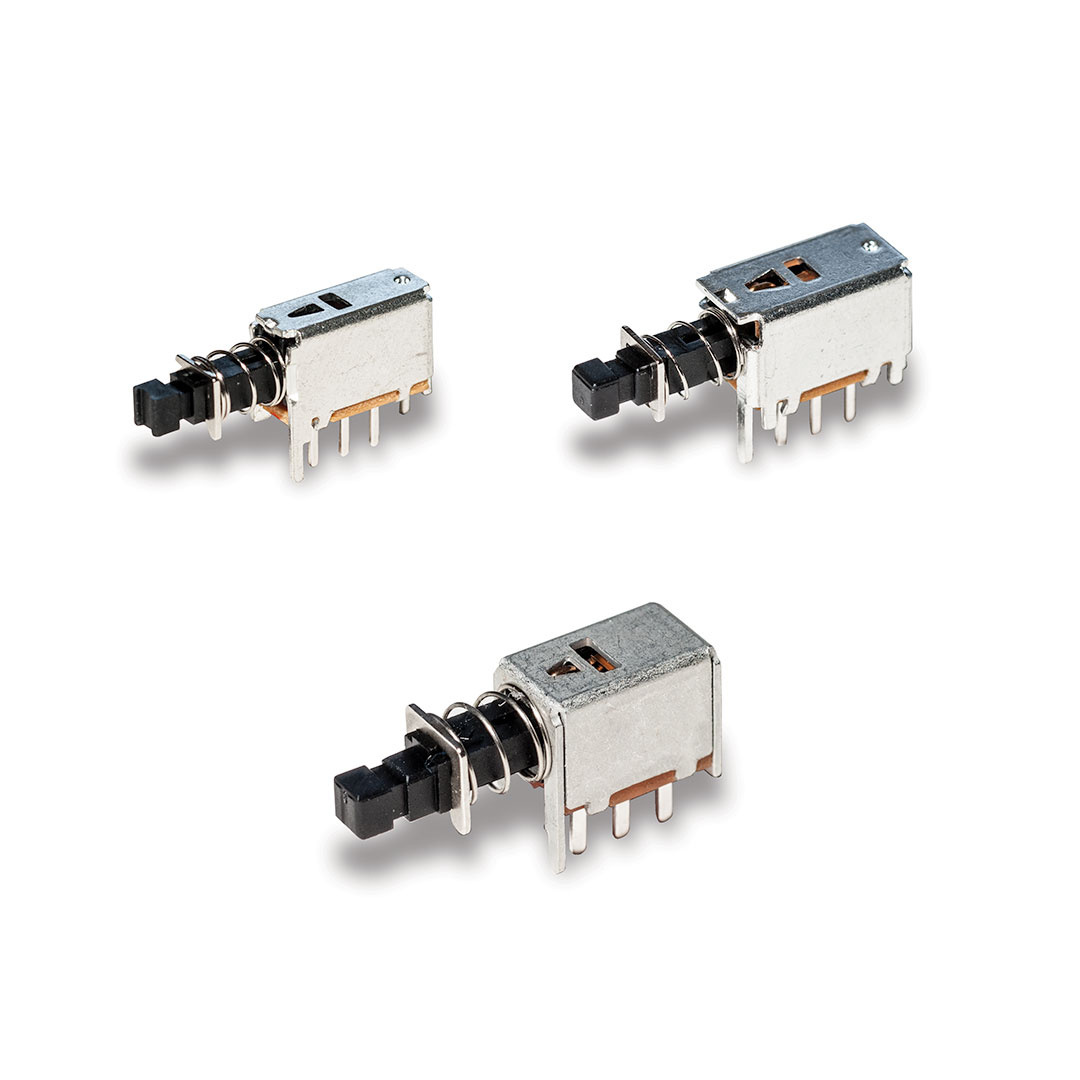

SWITCH PN21LHNA03QE | Series: PN
The PN series alternate and momentary action pushbutton switches are used in computing, instrumentation, and measurement equipment for non-power, on-off switching. With a low-cost, reliable contact design, the high-performance PN switches are available in either momentary or locking action options – and with different actuation forces, giving end-users a customized feel.
| Property | Value |
|---|---|
Circuitry | DPDT |
Activation Type | Momentary action |
Rating - Maximum Current | 200 mA |
Operating Force | Nominal 2.5 N |
Electrical Life Cycles | 10000 |
Seal | Epoxy potted base |
Illumination | Not applicable |
Terminals Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Electrical Rating - Activated - Voltage AC | Max 28 Volt |
Contact Plating | Silver |
Activation Orientation | Side actuated |
Terminals Type | Thru Hole |
- Momentary or locking action
- Single and double pole options
- RoHS compliant
- Different actuation forces for customized feel
- Low cost, reliable contact design
PN21LHNA03QE Applications
- Computers and peripherals
- Instrumentation and measurement equipment
- Non-power, on-off switch applications
PN21LHNA03QE Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| PN21LHNA03QE | SWITCH PN21LHNA03QE | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
