TP12SHCBE

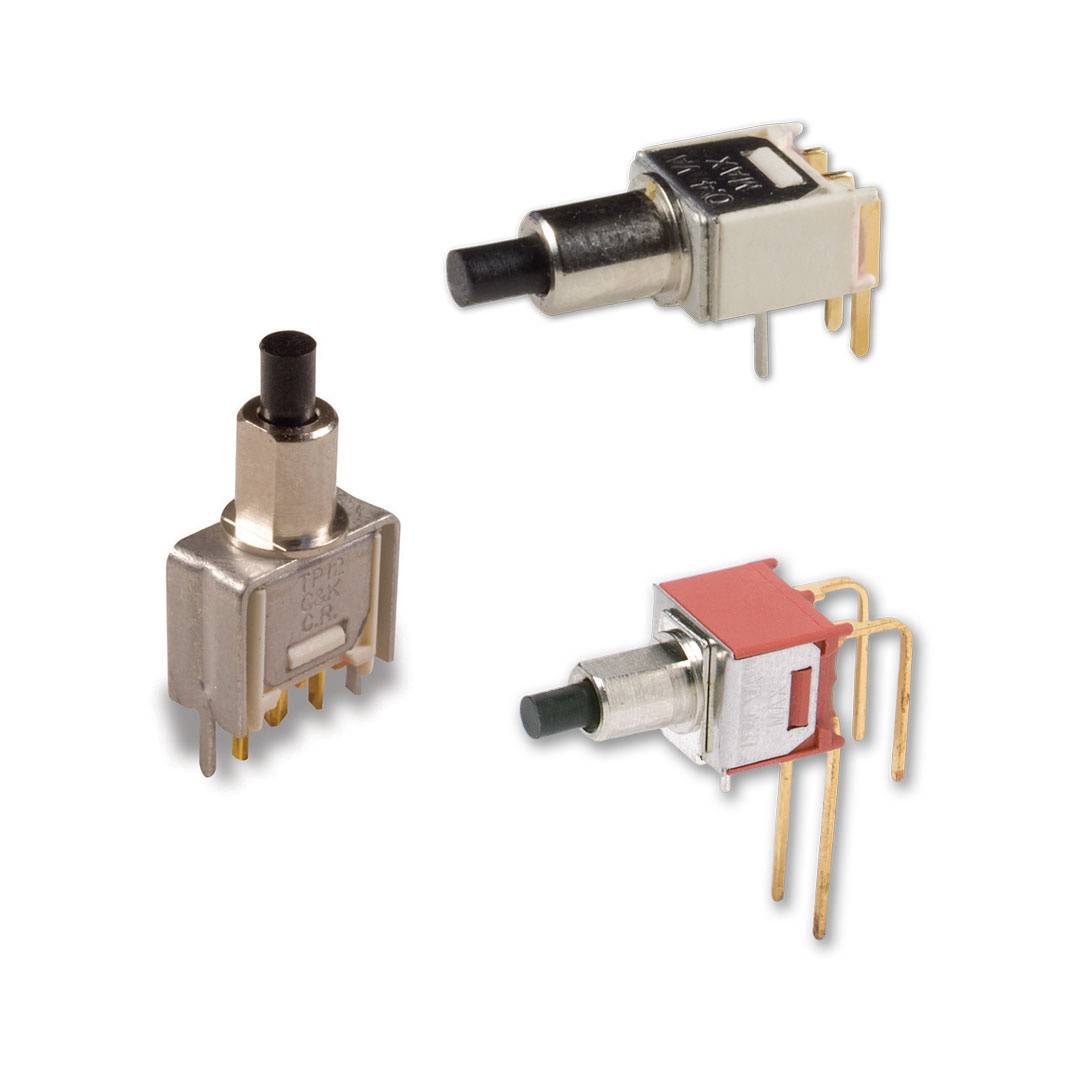

SWITCH TP12SHCBE | Series: TP
TP series of tiny pushbutton switches are used most often in telecommunications, networking and instrumentation applications. The TP switches are well-known for their subminiature size and ability to switch at 1 AMP. Snap-in front panel mounting is available, as are vertical and right angle terminations – and their epoxy terminal seal is compatible with bottom wash cleaning.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Momentary action |
Switch Function | On-None-Mom |
Rating - Maximum Current | 0.02A |
Electrical Life Cycles | 30000 |
Seal | Epoxy |
Illumination | Not applicable |
Terminals Plating | Gold |
Terminals Complementary Information | PC Thru-hole |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Contact Plating | Gold |
Actuator | 0.155inch high Round plunger |
Activation Orientation | Top actuated |
Terminals Type | Thru Hole |
- Sealed against solder & cleaning processes
- Through-hole and surface mount models
- Tape & reel packaging available
- RoHS compliant models available
- Snap-fitting actuator accepts standard caps
TP12SHCBE Applications
- Telecommunications and networking equipment
- Computers and peripherals
- Instrumentation and controls
TP12SHCBE Resources
