7203J37ZBE22

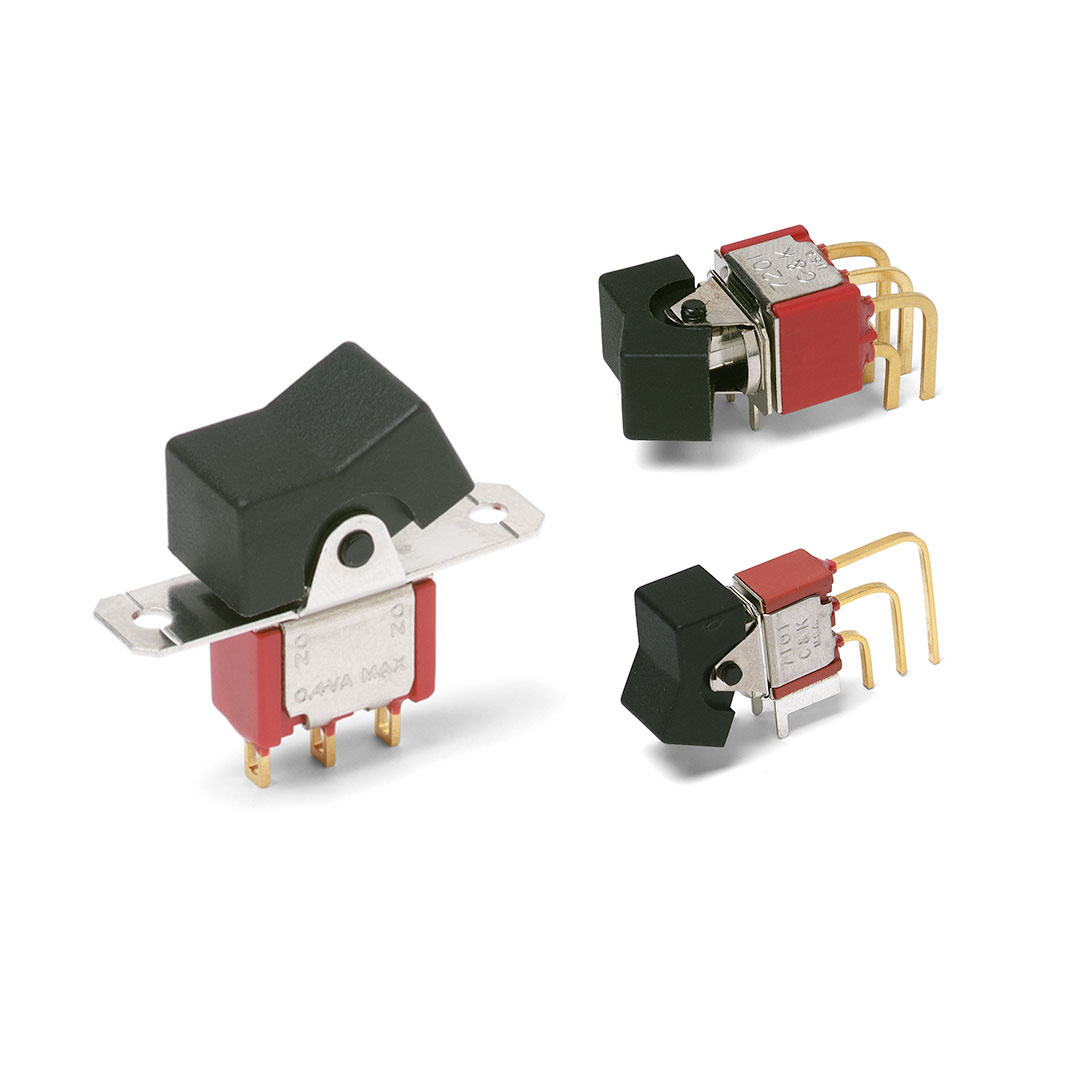

SWITCH 7203J37ZBE22 | Series: 7000
The 7000 series miniature rocker and lever handle switches are multi-pole and multi-position, have a wide variety of actuator and termination options available and use epoxy terminal-seal that’s compatible with bottom wash cleaning. Product designers in the telecommunications, instrumentation and medical equipment industries turn to the 7000 series switches because of their reputation for quality and performance even in the face of harsh environments.
| Property | Value |
|---|---|
Circuitry | DPDT |
Activation Type | Permanent |
Rating - Maximum Current | 50 mA |
Seal | Epoxy |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Terminals Plating | Gold |
Washing Process - Compatibility | Yes |
Color & Finish | Actuator: black Frame: black |
Mechanical Life Cycles | 40000 |
Actuator | Rocker with frame |
Terminals Type | Solder Lugs |
Switch Function | On-Off-On |
Contact Plating | Gold |
- Multi-pole and multi-position
- Wide variety of actuator and termination options
- RoHS compliant
- Epoxy terminal-seal compatible with bottom wash cleaning
7203J37ZBE22 Applications
- Telecommunications
- Instrumentation
- Medical equipment
