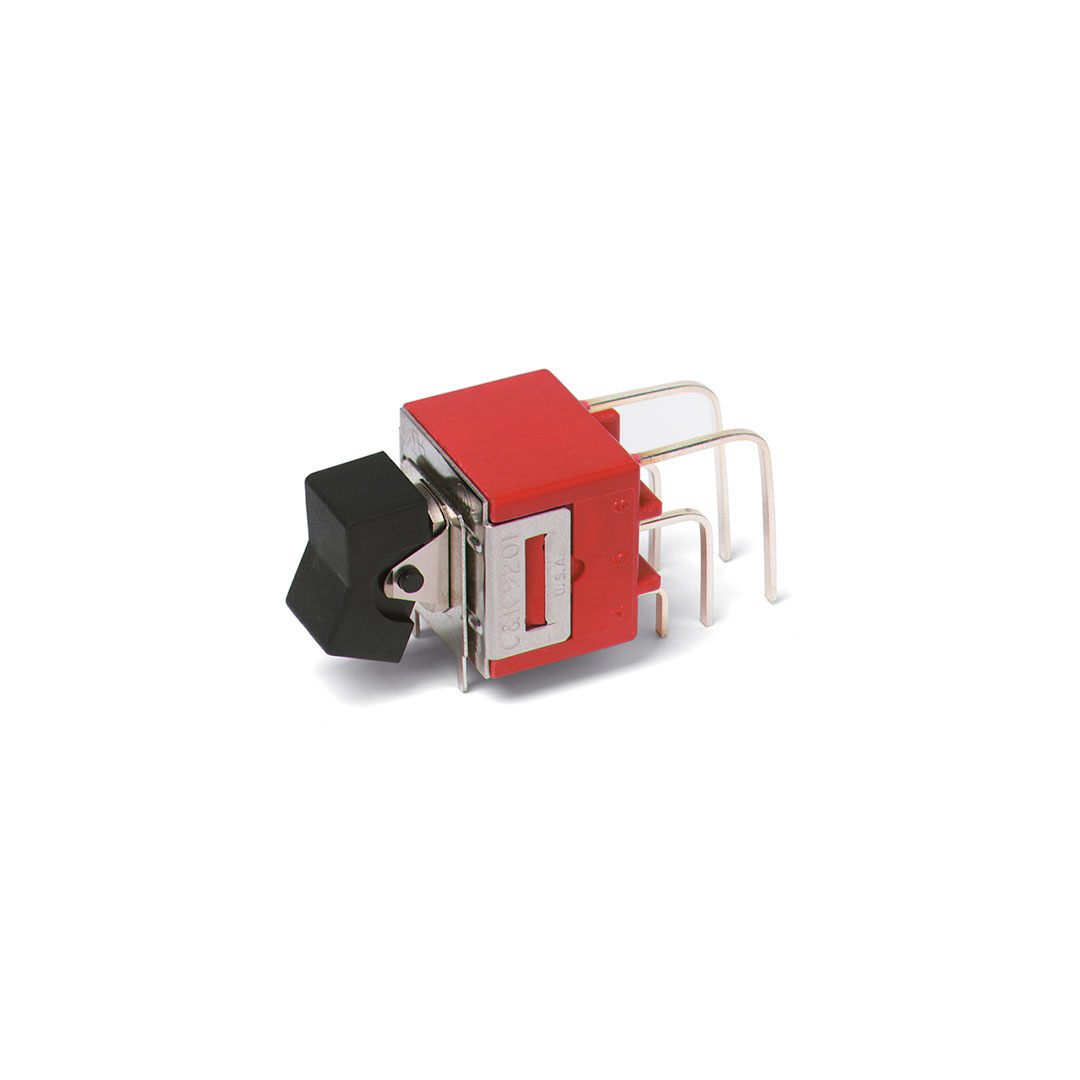

SWITCH 9201J1ZQE1 | Series: 9000
Those designing products that require a shut-off switch need to ensure that the switch they incorporate is durable, resistant to the elements and can withstand repeated use. The 9000 series of power rocker and lever handle switches feature thermoset UL 94V-0 housing, rugged construction and a variety of actuator and termination options, making them perfect for all types of small appliances and shut-off switches.
| Property | Value |
|---|---|
Circuitry | DPDT |
Activation Type | Permanent |
Switch Function | On-None-On |
Rating - Maximum Current | 6 A |
Terminals Type | Solder Lugs |
Electrical Life Cycles | 25000 |
Seal | Epoxy |
Electrical Rating - Activated - Voltage DC | Max 30 Volt |
Electrical Rating - Activated - Voltage AC | Max 125 Volt |
Contact Plating | Silver |
Terminals Plating | Silver |
Mechanical Life Cycles | 25000 |
Actuator | ROCKER WHITE |
- Thermoset UL 94V-0 housing
- Rugged construction
- Variety of actuator and termination options
- RoHS compliant
9201J1ZQE1 Applications
- Small equipment
- Shut-off switch
