CR102JPRS215QF8

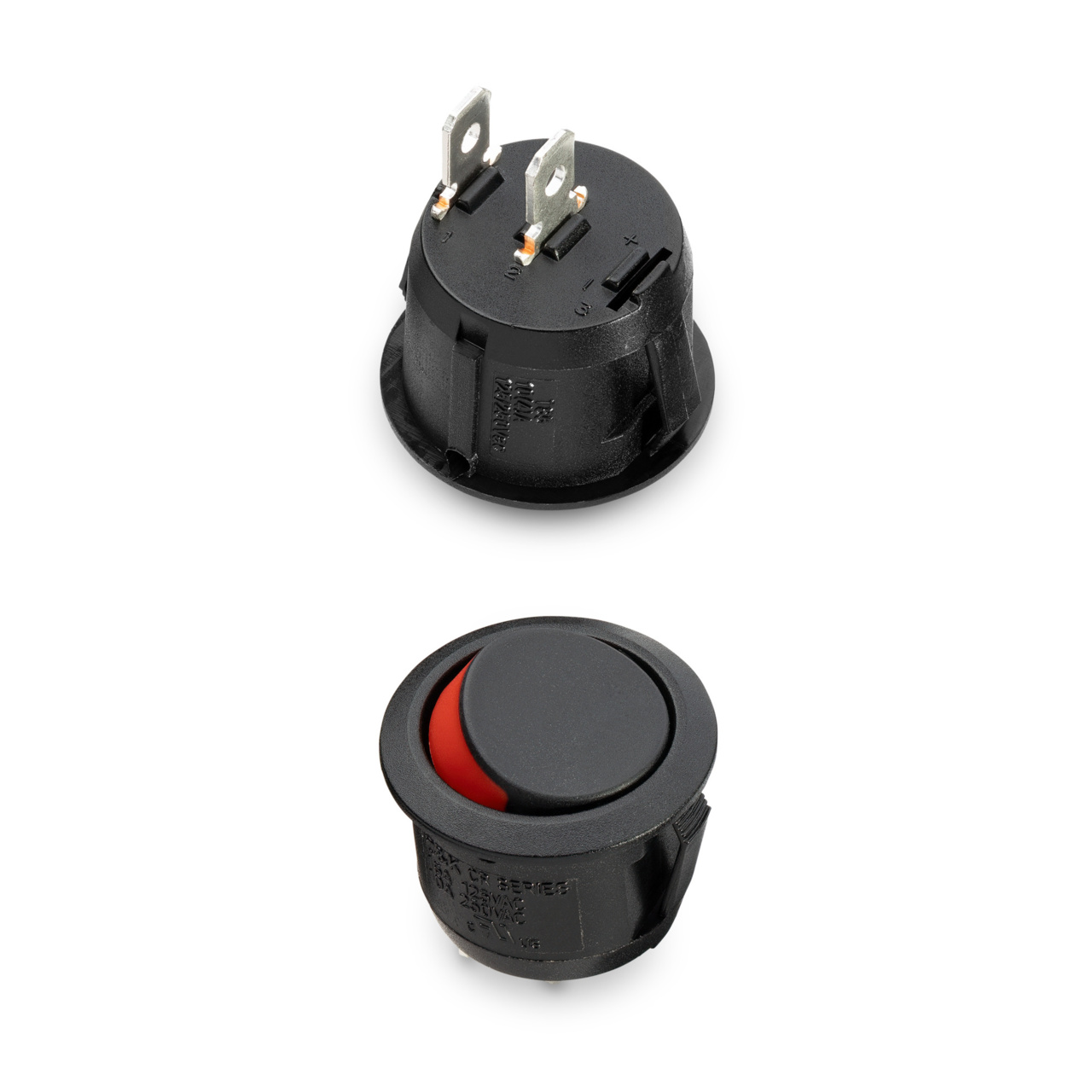

SWITCH CR102JPRS215QF8 | Series: CR
The CR series are round single pole specialty rocker switches, perfect for use in small and large appliances, computers and peripherals and audio/video equipment. With a round actuator and body, an IP65 rated splash proof rubber boot option and multiple illuminated versions available, CR switches are sure to give designers what they need.
| Property | Value |
|---|---|
Circuitry | SPST |
Activation Type | Permanent |
Switch Function | On-None-Off |
Rating - Maximum Current | 16 A |
Mounting Method | Snap-In |
Terminals Type | Quick Connect |
Electrical Life Cycles | 10000 |
Illumination | Yes |
Seal | No |
Electrical Rating - Activated - Voltage AC | Max 250 volt |
Terminals Plating | Silver |
Terminals Complementary Information | 0,187 inches |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Color & Finish | Red |
Light - Typical Forward Voltage | 250 AC |
Light - Color | Red |
Actuator | Rocker |
Contact Plating | Silver |
- Round actuator and body
- Multiple illuminated versions available
- IP65 splash proof rubber boot option
- Nice styling
CR102JPRS215QF8 Applications
- Appliances, small and large
- Office equipment
- Computers and peripherals
- Audio/Video equipment
- RoHS compliant
CR102JPRS215QF8 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| CR102JPRS215QF8 | SWITCH CR102JPRS215QF8 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
