DA103J12S215QF

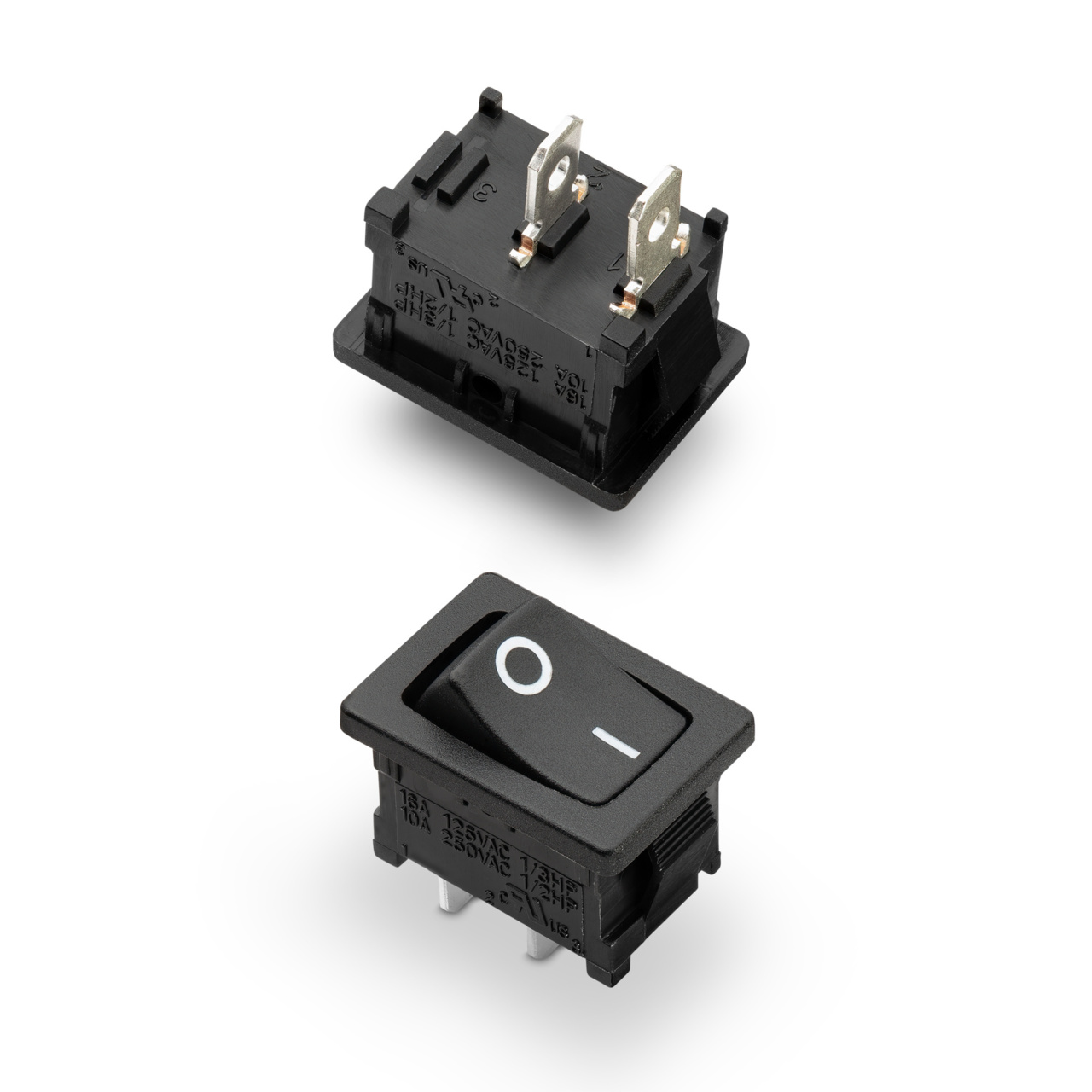

SWITCH DA103J12S215QF | Series: DA
Those designing medical instrumentation need to make sure that the components they use can withstand harsh environments. The DA series miniature single pole rocker switches are perfect for the medical industry because of their IP54 splash proof rubber boot option and guards that prevent accidental actuation. Also used by designers for small appliances, computers and peripherals, the DA series feature options for both momentary and maintained functions.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Maintain |
Switch Function | On-Off-On |
Rating - Maximum Current | 16 A |
Mounting Method | Snap-In |
Terminals Type | Quick Connect |
Electrical Life Cycles | 10000 |
Illumination | Not applicable |
Ingress Protection | IP 54 |
Electrical Rating - Activated - Voltage AC | Max 250 volt |
Terminals Plating | Lead free silver |
Activation Orientation | Top actuated |
Washing Process - Compatibility | Not Compatible |
Actuator | Rocker |
Contact Plating | Silver |
- IP54 splash proof rubber boot option
- Guards to prevent accidental actuation
- Momentary and maintained functions
- RoHS compliant
- Nice actuator styling with multiple options
DA103J12S215QF Applications
- Small appliances
- Computers and peripherals
- Medical instrumentation
