DM64J72S205Q3

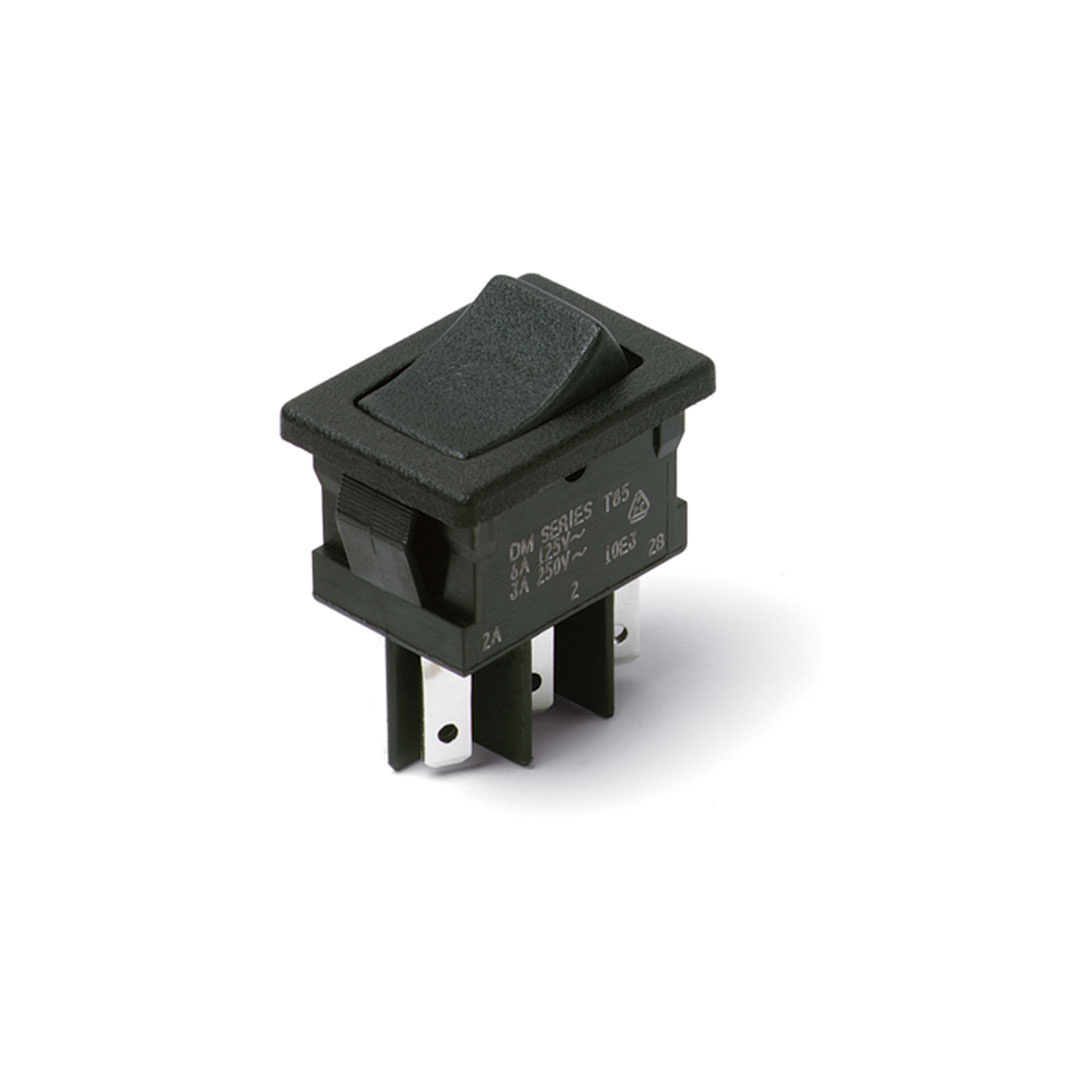

SWITCH DM64J72S205Q3 | Series: DM
The DM series miniature 2 pole power rocker switch is commonly found in computers, appliances and electric tools – applications where there is a need for a quick connection and to ensure a device is not turned on accidentally. DM switches feature quick connect terminals, optional recessed brackets (to prevent accidental actuation) and are double pole in miniature size.
| Property | Value |
|---|---|
Circuitry | DPST NO |
Activation Type | Permanent |
Switch Function | On-None-Off |
Rating - Maximum Current | 10 A |
Mounting Method | Snap-In |
Terminals Type | Quick Connect |
Electrical Life Cycles | 10000 |
Illumination | Yes |
Seal | No |
Electrical Rating - Activated - Voltage AC | Max 125 Volt |
Terminals Plating | Silver |
Terminals Complementary Information | 0.110inch (2.8mm) |
Activation Orientation | Top actuated |
Color & Finish | BLACK |
Washing Process - Compatibility | Not Compatible |
Light - Typical Forward Voltage | 2.1 |
Light - Color | Red |
Actuator | Concave (Curved) |
Contact Plating | Silver |
- 5 amps to 10 amps
- Double pole in miniature size
- RoHS compliant
- Quick connect terminals
DM64J72S205Q3 Applications
- Computers
- Appliances
- Electric tools
DM64J72S205Q3 Resources
