T101J6AVQE2

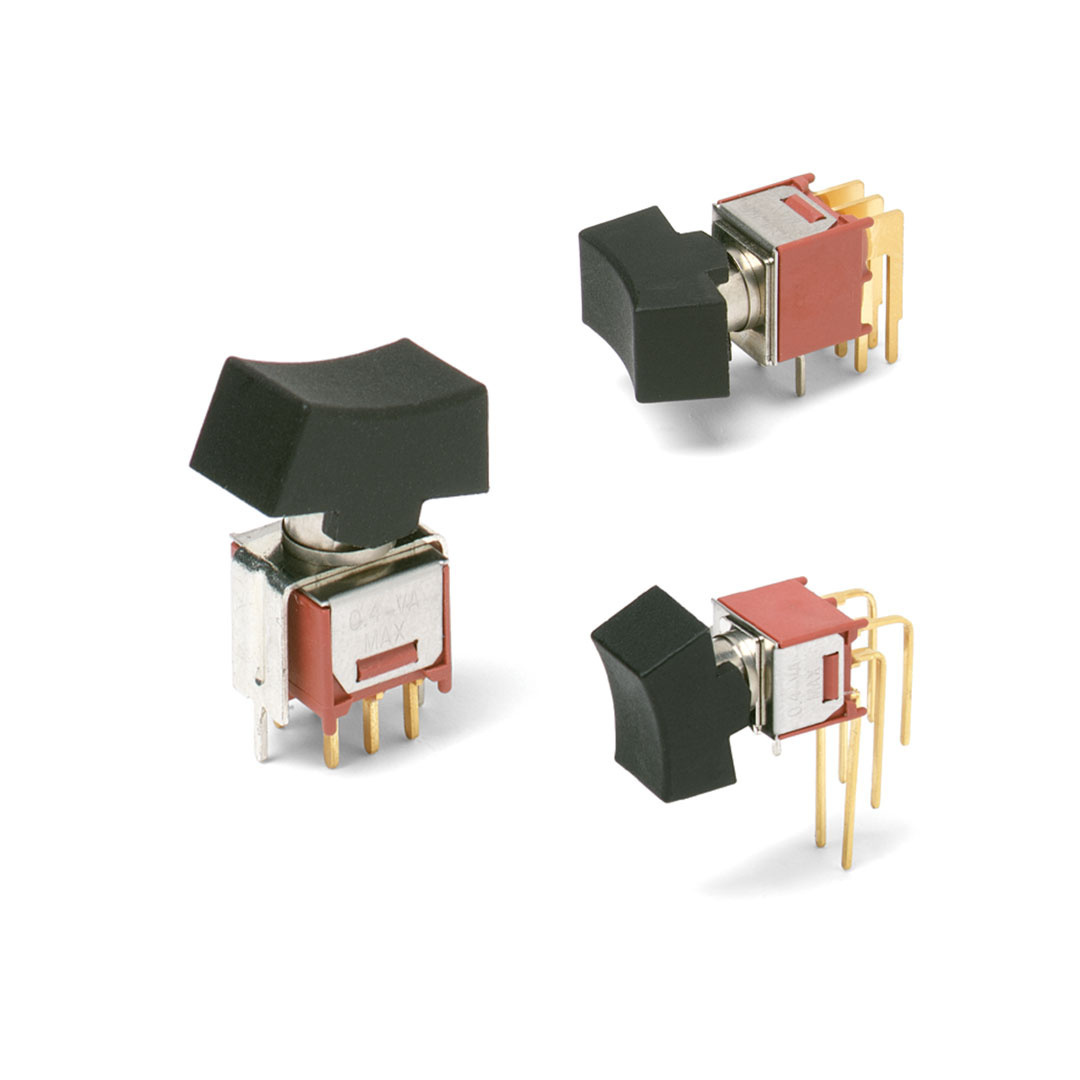

SWITCH T101J6AVQE2 | Series: T Rocker
The T series subminiature rocker switches feature a compact size, giving telecommunications, instrumentation and medical equipment engineers a small footprint to work with. The T series also are available in single and double pole models and with both PC and panel mounting options available to ensure a perfect fit for any design.
| Property | Value |
|---|---|
Circuitry | SPDT |
Switch Function | On-None-On |
Terminals Type | Thru Hole |
Seal | Epoxy |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Electrical Rating - Activated - Voltage AC | Max 120 Volt |
Contact Plating | Silver |
Terminals Plating | Silver |
Terminals Complementary Information | Vertical right angle |
Actuator | Rocker, .230 inch wide |
Activation Orientation | Top actuated |
Color & Finish | Actuator: black |
Mechanical Life Cycles | 60000 |
- Single and double pole models
- PC and panel mounting options available
- RoHS compliant
- Compact size—small footprint
T101J6AVQE2 Applications
- Telecommunications
- Instrumentation
- Computers & peripherals
T101J6AVQE2 Resources
