A216132Y2NCNQ

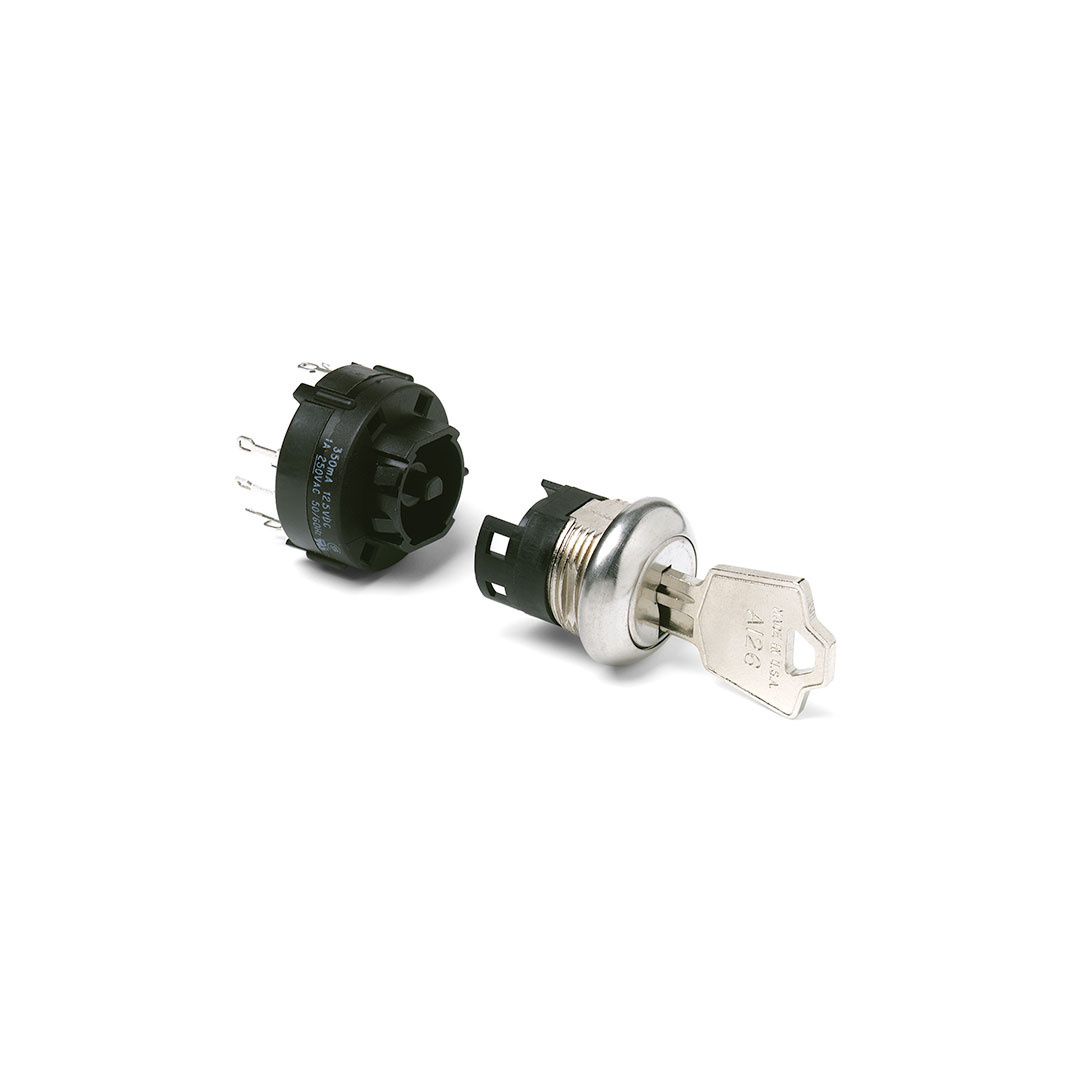

SWITCH A216132Y2NCNQ | Series: A Switchlock
A series switches are 4 & 5 tumbler, 1-4 pole switchlocks that are used regularly by designers of security alarm systems, medical equipment and computer servers. Available with multi-pole and multi-position options, the A series have a low-level power capability and are availability with shorting or non-shorting contacts available.
| Property | Value |
|---|---|
Activation Type | Rotary |
Circuitry | DPDT |
Rating - Maximum Current | 2.5 A |
Mounting Method | Nut |
Seal | No |
Contact Plating | Silver |
Terminals Type | Thru Hole |
Electrical Rating - Activated - Voltage AC | Max 125 volt |
Actuator | Two nickel plated brass keys |
Color & Finish | Stainless steel facing |
Switch Function | On-Off-On |
Illumination | Not applicable |
Terminals Plating | Lead free silver |
- Multi-pole and multi-position
- Shorting and non-shorting contacts available
- Low level and power capability
- PCB mounting
A216132Y2NCNQ Applications
- Security alarm systems
- Medical equipment
- Computer servers
