H20307RR01Q

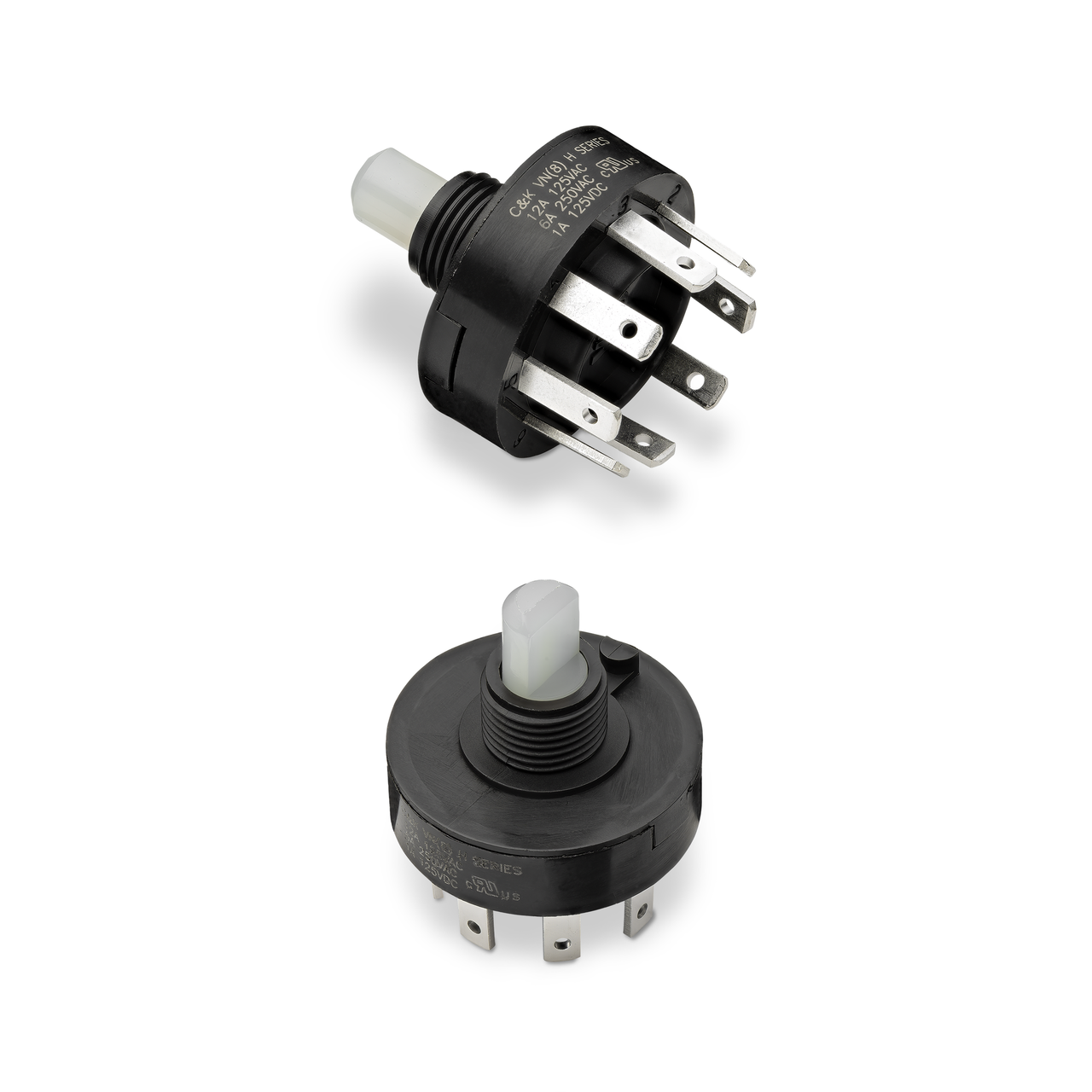

SWITCH H20307RR01Q | Series: H Rotary
Designers of small appliances, industrial equipment and elevators need long-lasting switches that can withstand repeated use. The H series switches are power ROTA-SLIDE® rotary switches that provide power switching up to 12A, provide multi-pole and multi-position options and are positive detent.
| Property | Value |
|---|---|
Activation Type | Rotary |
Circuitry | DP3T |
Rating - Minimum Current | 1 A |
Rating - Maximum Current | 12 A |
Seal | Epoxy |
Electrical Life Cycles | 10000 |
Contact Plating | Silver |
Terminals Type | Solder Lugs |
Terminals Complementary Information | 0.110 Inch (2.8mm) |
Electrical Rating - Activated - Voltage DC | Max 125 Volt |
Electrical Rating - Activated - Voltage AC | Max 250 Volt |
Illumination | Not applicable |
Terminals Plating | Silver |
Actuator | Flatted (6.35mm Dia) Length7.29mm |
- Multi-pole and multi-position
- Positive detent
- Power switching up to 12 AMPS
- Value added capability
- RoHS Compliant
H20307RR01Q Applications
- Small appliances
- Industrial equipment
- Elevators
