H201132C2WCNQ

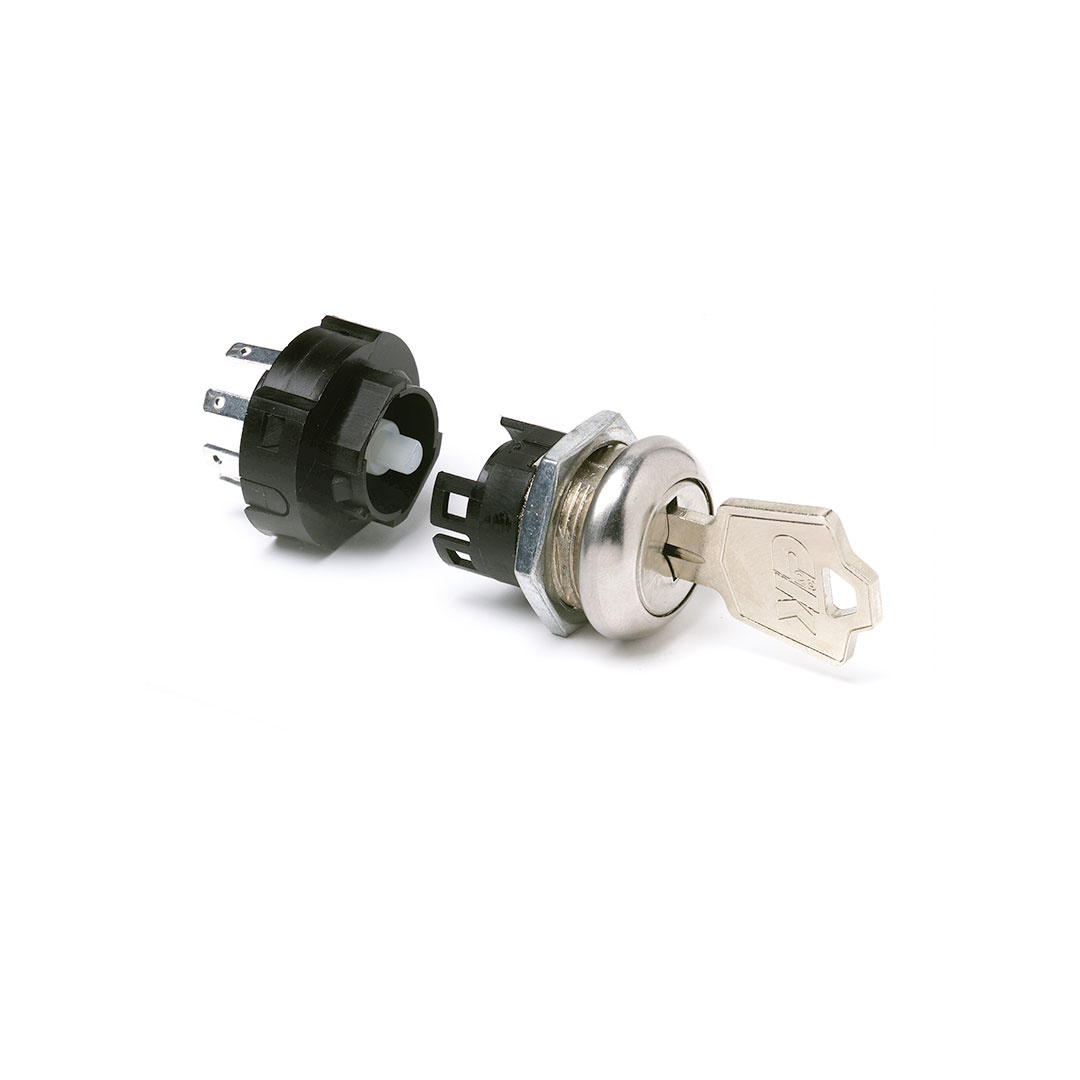

SWITCH H201132C2WCNQ SS-F SC** | Series: H Switchlock
The H series 4 & 6 tumbler power switchlock is designed for use in machine controls and elevators. With positive detent, snap together assembly and power switching, designers turn to the H series when they need a switchlock that’s both reliable and long lasting.
| Property | Value |
|---|---|
Activation Type | Rotary |
Circuitry | DPDT |
Rating - Maximum Current | 12 A |
Mounting Method | Nut |
Seal | Epoxy |
Electrical Life Cycles | 10000 |
Contact Plating | Silver |
Terminals Type | Wires |
Terminals Complementary Information | 16 AWG Insulated wire |
Electrical Rating - Activated - Voltage DC | Max 125 Volt |
Electrical Rating - Activated - Voltage AC | Max 250 Volt |
Switch Function | On-Off-On |
Illumination | Not applicable |
Terminals Plating | Silver |
Actuator | Flat Key |
- Positive detent
- Multi-pole and multi-position
- Snap-together assembly
- Power switching
H201132C2WCNQ Applications
- Machine controls
- Elevators
