P20113TCM03Q22

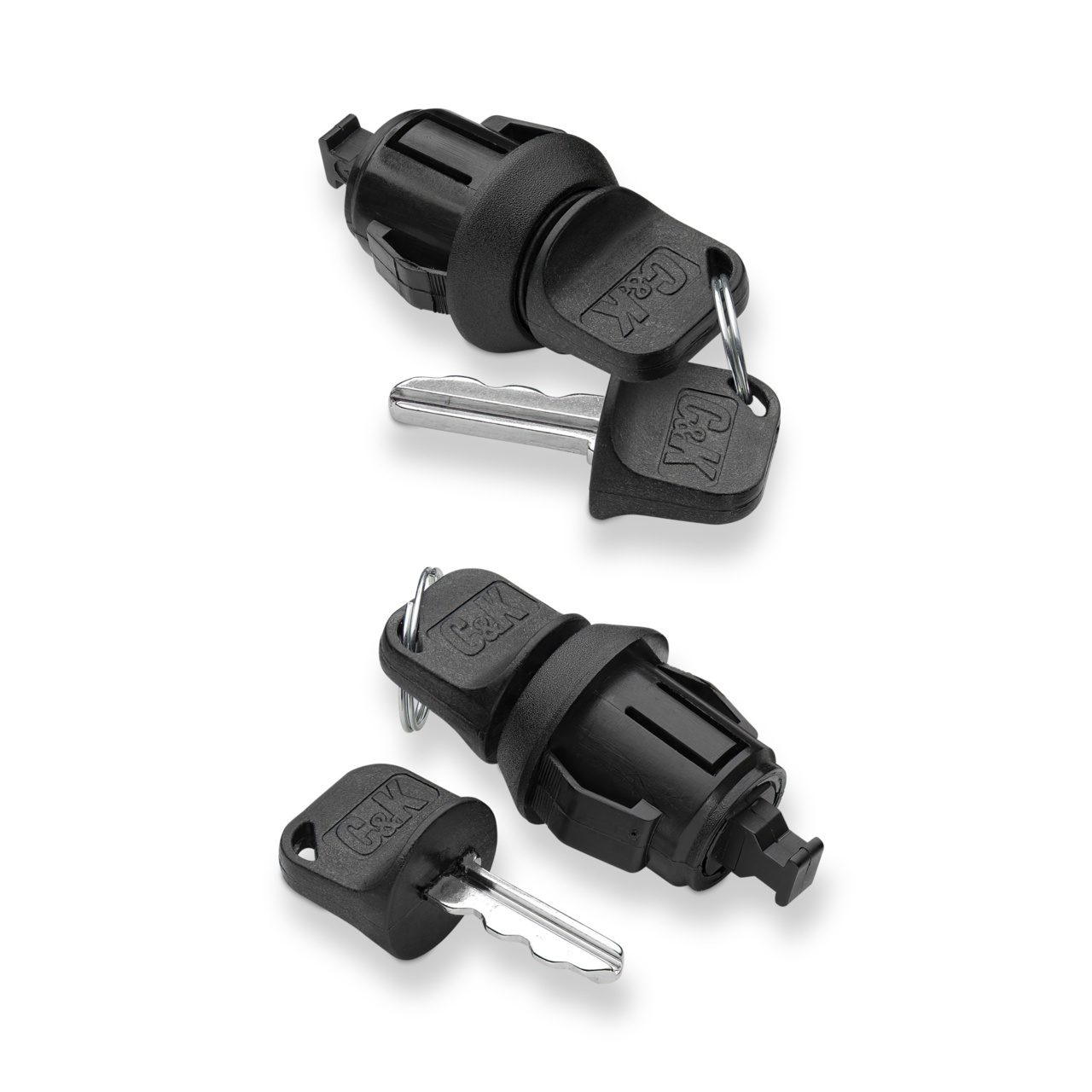

SWITCH P20113TCM03Q22 | Series: P Switchlock
The P series 4 tumbler switchlocks support the needs of those designing security for computers, point-of-sale terminals, and other instrumentation. With snap-in mounting, the P series is known for being long lasting and high-quality.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Circuitry | DPDT |
Rating - Maximum Current | 4 A |
Electrical Life Cycles | 10000 |
Switch Function | On-None-On |
Illumination | Not applicable |
Terminals Plating | Silver |
Terminals Type | Solder Lugs |
Actuator | Flat Key |
Mounting Method | SnapIn |
Electrical Rating - Activated - Voltage AC | Max 125 Volt |
Contact Plating | Silver |
Color & Finish | Plastic lock with matte finish |
- Snap-in mounting
- Multi-pole and multi-position
- Positive detent
P20113TCM03Q22 Applications
- Computers
- Communication equipment
P20113TCM03Q22 Resources
