PM0613EBM05KQ22

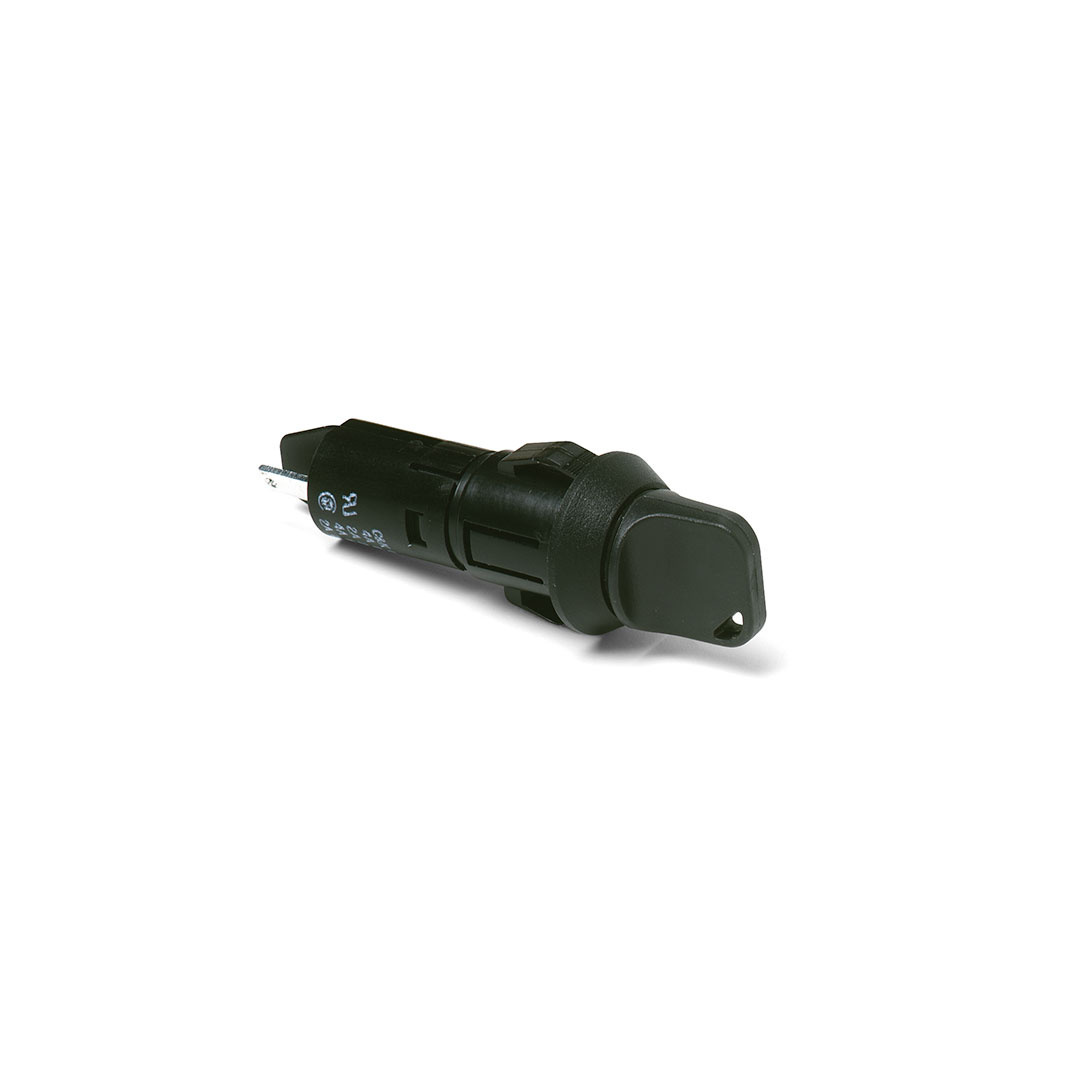

SWITCH PM0613EBM05KQ22 | Series: PM
Those that design point-of-sale terminals and marine equipment need a high-quality switchlock that can stand up to repeated use. That’s why PM series 5 tumbler miniature snap-in switchlock series is so popular. With snap-in mounting, optional wire lead terminations and positive detent, it gives designers exactly what they need to create a successful product.
| Property | Value |
|---|---|
Activation Type | Rotary |
Circuitry | SPST NC |
Rating - Maximum Current | 4 A |
Mounting Method | Nut |
Electrical Life Cycles | 10000 |
Contact Plating | Silver |
Terminals Type | Quick Connect |
Terminals Plating | Silver |
Terminals Complementary Information | 0.110 Inch (2.8mm) |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Electrical Rating - Activated - Voltage AC | Max 125 Volt |
Color & Finish | Plastic lock with matte finish |
Switch Function | Off-None-On |
Illumination | Not applicable |
Actuator | Flat key removable position 1 only |
- International agency listings
- Snap-in mounting
- Wire lead terminations available
- 5 Tumbler lock with positive detent
PM0613EBM05KQ22 Applications
- Computers
- Point-of-sale terminals
- Marine equipment
