RTAP36BCSSDM15S

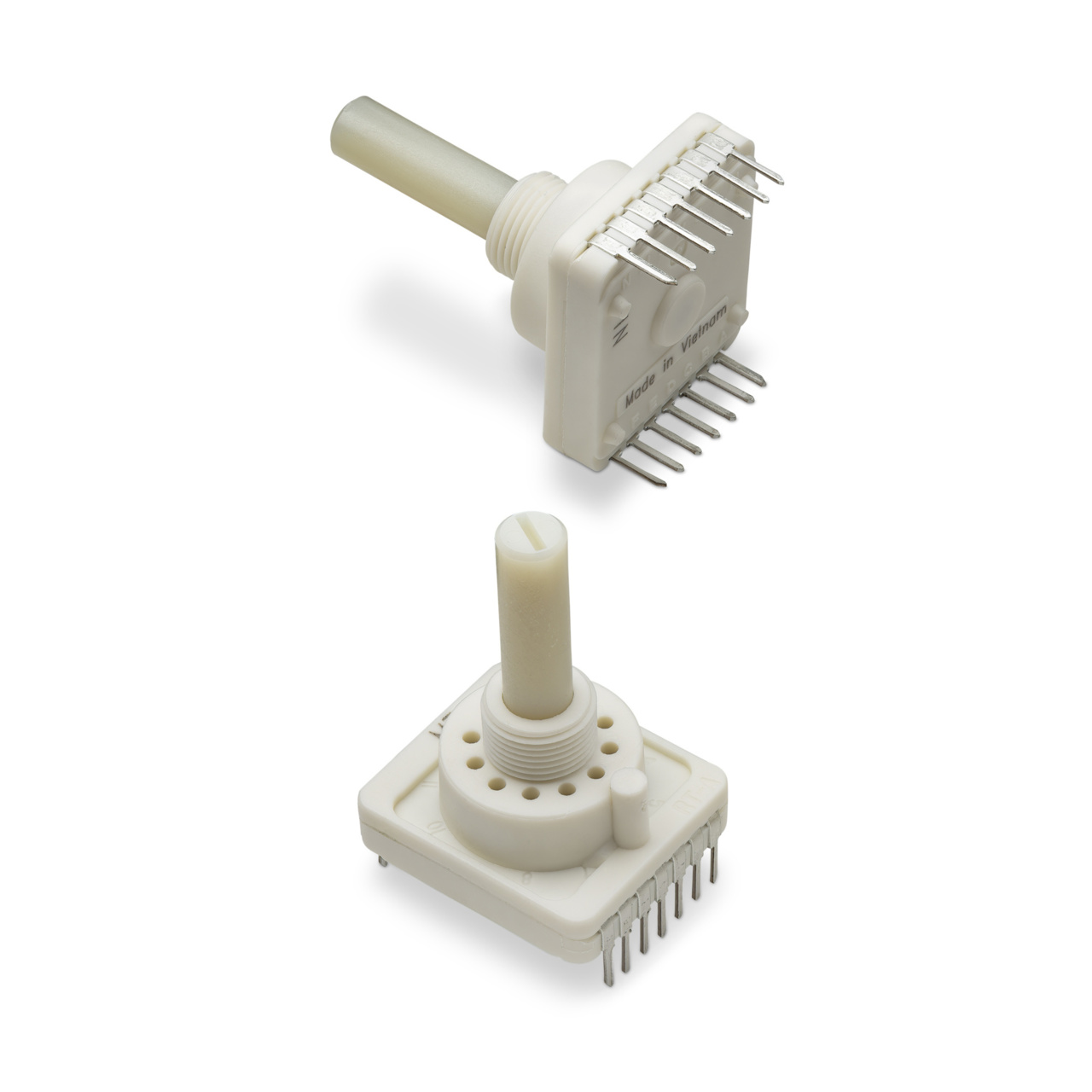

RTA P36 BC SSD M 15S LFT | Series: RTA
The RTA series are 1–4 pole coded rotary switches, found most often in appliances, off-road vehicles, medical building automation applications, and HVAC air conditioning equipment. The RTA series are available in PCB or hand soldering versions, with bushing mounting and multiple poles.
| Property | Value |
|---|---|
Activation Type | Rotary |
Rating - Maximum Current | 150 mA |
Mechanical Life Cycles | 10000 |
Contact Plating | Silver |
Terminals Type | Thru Hole |
Electrical Rating - Activated - Voltage DC | Max 32 Volt |
Electrical Rating - Activated - Voltage AC | Max 60 volt |
Activation Orientation | Top actuated |
Illumination | Not applicable |
Terminals Plating | Silver |
- PCB or hand soldering versions
- Bushing mounting
- Multiple poles
- Decimal and hexadecimal codes
- Screwdriver slot or extended actuator
- RoHS Compliant
RTAP36BCSSDM15S Applications
- Appliances
- Electronic alarm systems
- Medical
- Building automation
- HVAC air conditioning
RTAP36BCSSDM15S Resources
