SAMXDH2MR14SPGA

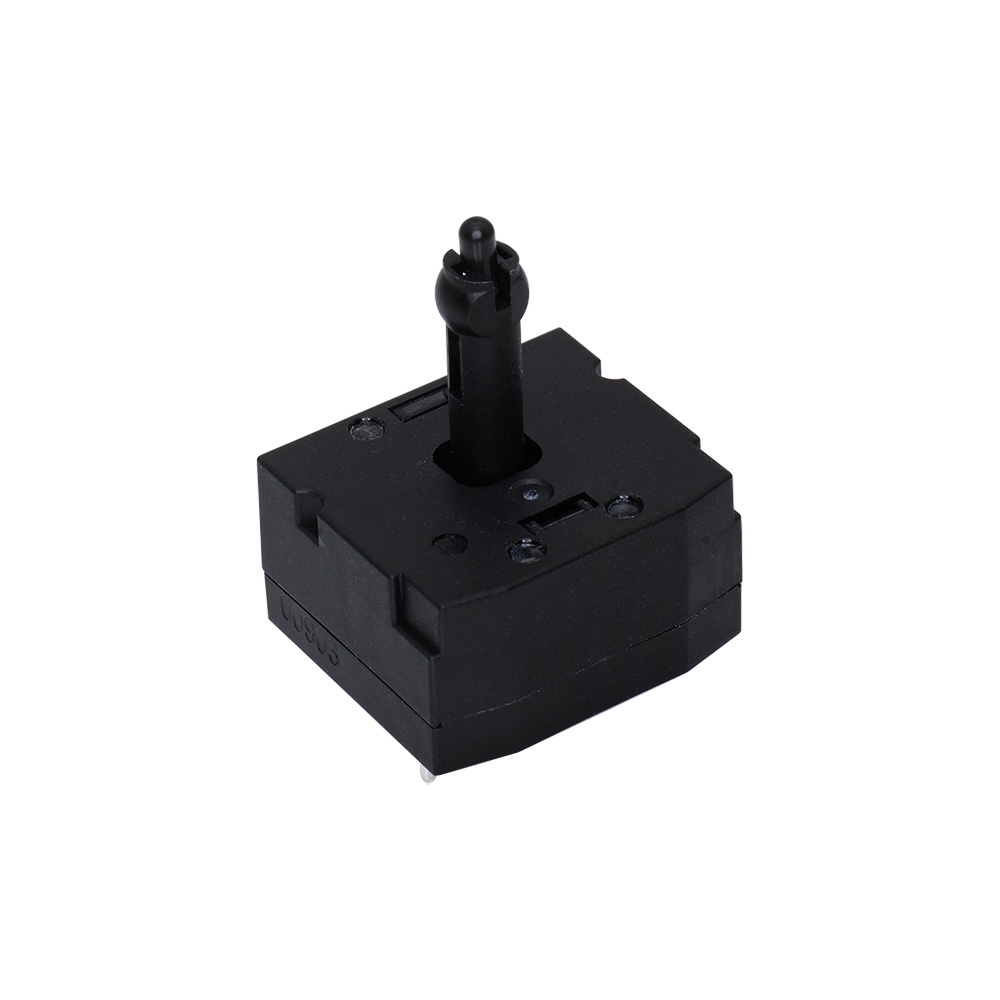

SWITCH SAMXDH2MR14SPGA. | Series: SAMXD
2 and 4 ways power switches for seat adjustment. Capable of handling 15A at 14VDC power, this SAMXD new version is dust proof and can offer different style of actuators, with or without spring pin for interface button tolerance management.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Circuitry | SPDT NO |
Rating - Maximum Current | 15 A |
Mounting Method | Post |
Electrical Life Cycles | 30000 |
Contact Plating | Silver |
Terminals Type | Thru Hole |
Terminals Plating | Lead free silver |
Terminals Complementary Information | THT |
Electrical Rating - Activated - Voltage DC | Min 14 Volt |
Activation Orientation | Side actuated |
Illumination | Not applicable |
- Multi-directional 2 & 4 ways
- Power handling for motor direct drive
- IP5x
- THT terminations
SAMXDH2MR14SPGA Applications
- Seat adjustment module for passenger cars
- Seat adjustment module for commercial vehicles
- Industrial Joystick
SAMXDH2MR14SPGA Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| SAMXDH2MR14SPGA | SWITCH SAMXDH2MR14SPGA. | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
