ES02MSABE

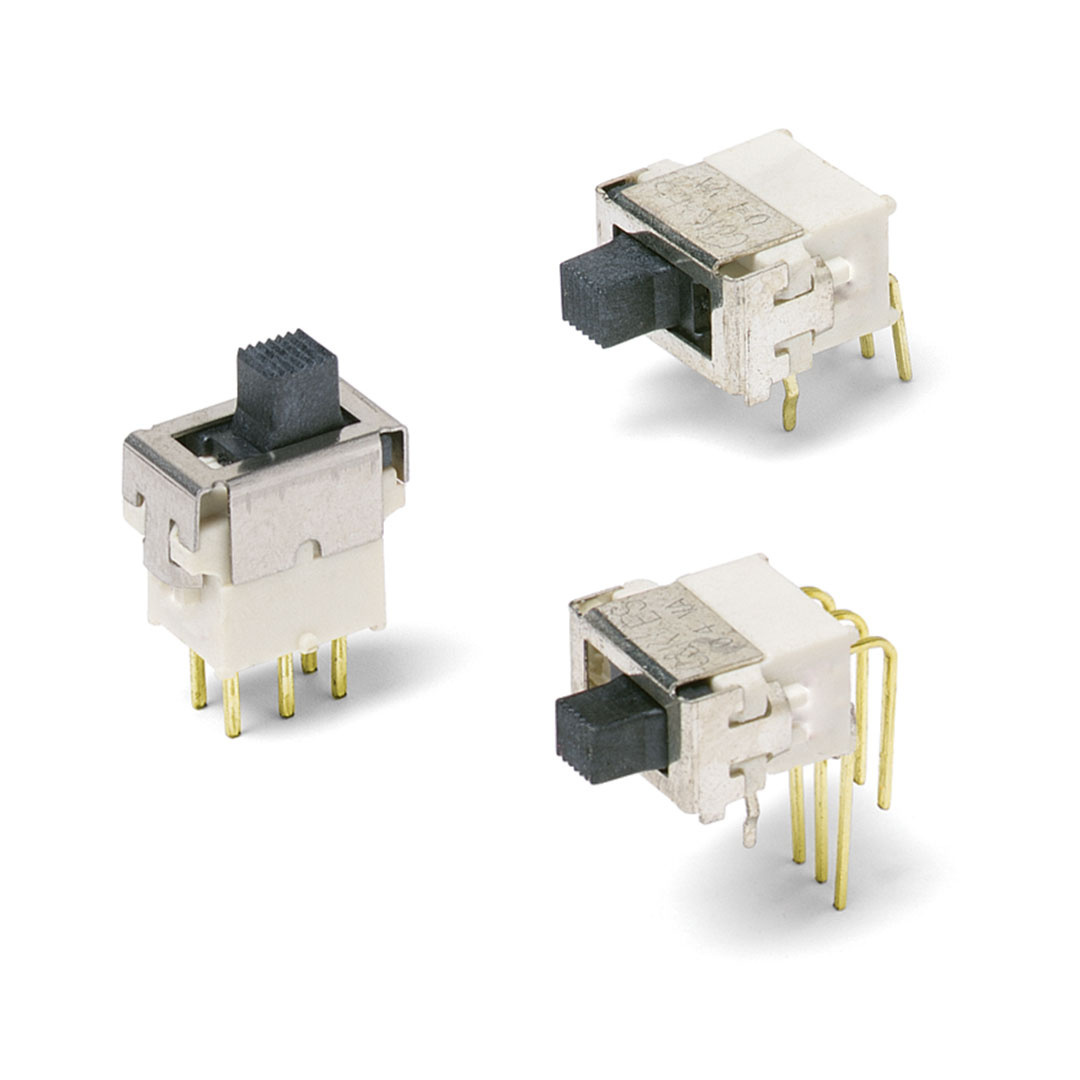

SWITCH ES02MSABE | Series: ES
ES series sealed tiny slide switches are perfect for applications in the computer peripherals & network products, test & measurement equipment, and general telecom industries. With process compatible internal o-ring, epoxy base seals, and a robust actuator for easy actuation, its reliable contact design ensures a long electrical life.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Maintain |
Switch Function | On-Off-On |
Rating - Maximum Current | 20 mA |
Actuator | Standard 3.07 mm Length |
Activation Orientation | Side actuated |
Seal | Epoxy |
Illumination | Not applicable |
Contact Plating | Gold |
Terminals Type | Surface mount |
Terminals Plating | Gold |
Terminals Complementary Information | Copper alloy with gold over nickel plate |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Ingress Protection | IP 57 |
- Process compatible—internal o-ring and epoxy base seal
- Thru-hole & surface mount models
- RoHS compliant
- Reliable contact design ensures long electrical life
- Robust actuator for easy actuation
ES02MSABE Applications
- Computer peripherals & network products
- Test & measurement equipment
- Telephone & cable modems
