GS01MABE

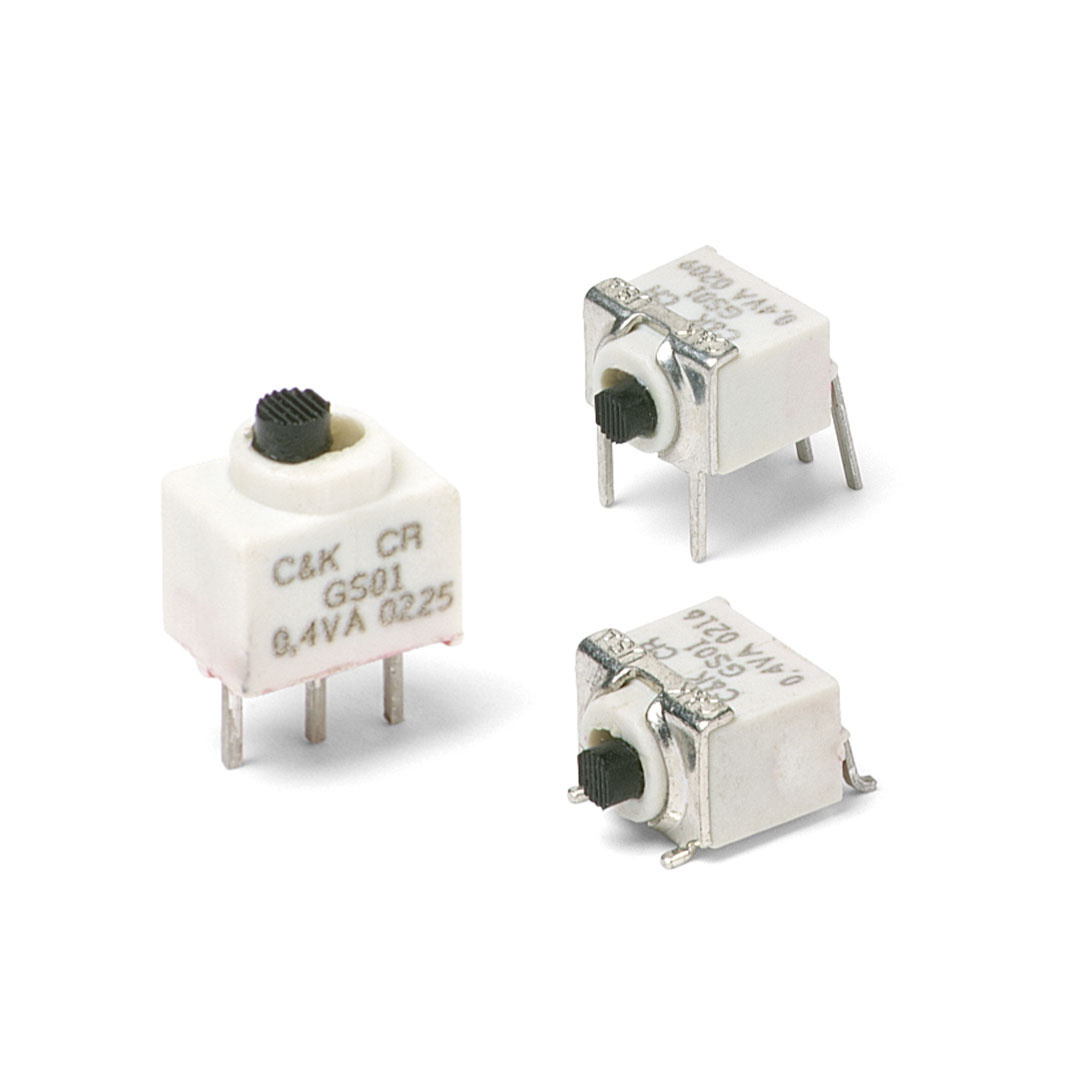

SWITCH GS01MABE | Series: GS
The GS series sealed ultraminiature slide switches are typically found in computer peripherals & network products, test & measurement equipment, and telephone & cable modem industries. Featuring an ultraminiature design that saves PCB space, the GS series have sealed construction, processes compatible with most PCB wash processes, long-life contact design, and are available in thru-hole or surface mount options.
| Property | Value |
|---|---|
Activation Type | Maintain |
Switch Function | On-Off-On |
Rating - Maximum Current | 20 mA |
Actuator | Standard. 1.27mm |
Seal | Epoxy |
Illumination | Not applicable |
Contact Plating | Gold |
Terminals Type | Thru Hole |
Terminals Plating | Gold |
Terminals Complementary Information | Right angle |
Electrical Rating - Activated - Voltage AC | Max 20 Volt |
Electrical Rating - Activated - Voltage DC | Max 20 Volt |
Circuitry | SPDT |
- Sealed construction, process compatible with most PCB wash processes
- Available in thru-hole and surface mount
- RoHS compliant
- Ultraminiature design saves PCB space
- Long life contact design
GS01MABE Applications
- Computer peripherals & network products
- Telephone & cable modems
- Test & measurement equipment
GS01MABE Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| GS01MABE | SWITCH GS01MABE | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
