JSX08001SAQNL

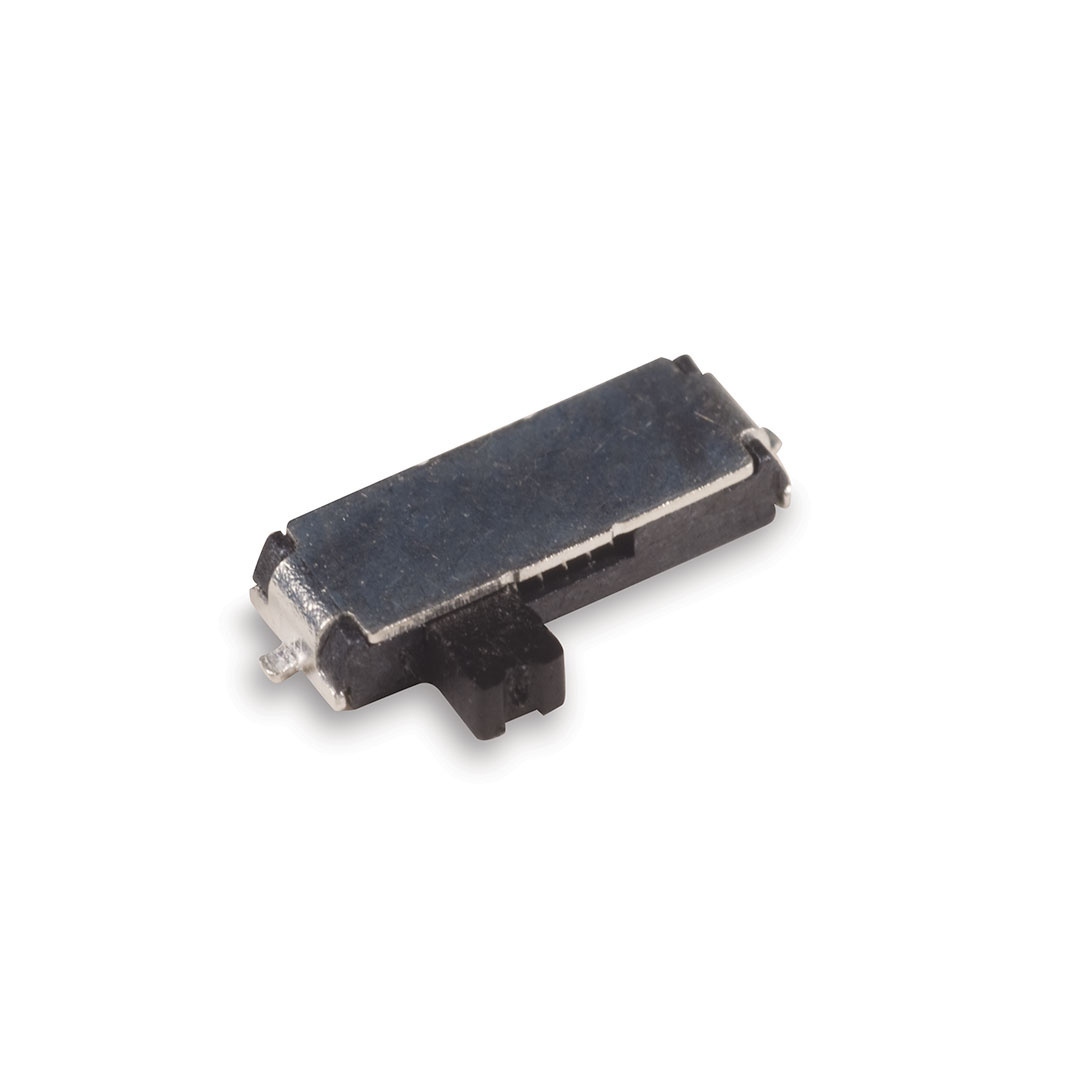

SWITCH JSX08001SAQNL | Series: JSX
JSX switches feature a low profile, SPDT momentary action and a long electrical and mechanical life, making them perfect for designers of on/off touch screens, handheld games and remote controls.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 10 mA |
Activation Orientation | Side actuated |
Mechanical Life Cycles | 5000 |
Contact Plating | Silver |
Terminals Type | Surface mount |
Terminals Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 6 Volt |
Circuitry | SPDT NO / NC |
- Low profile
- SPDT momentary action
- Long electrical and mechanical life
JSX08001SAQNL Applications
- On/Off touch screens
- Handheld games
- Remote controls
- Instrumentations
JSX08001SAQNL Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| JSX08001SAQNL | SWITCH JSX08001SAQNL | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
