OS103011MS8QP1

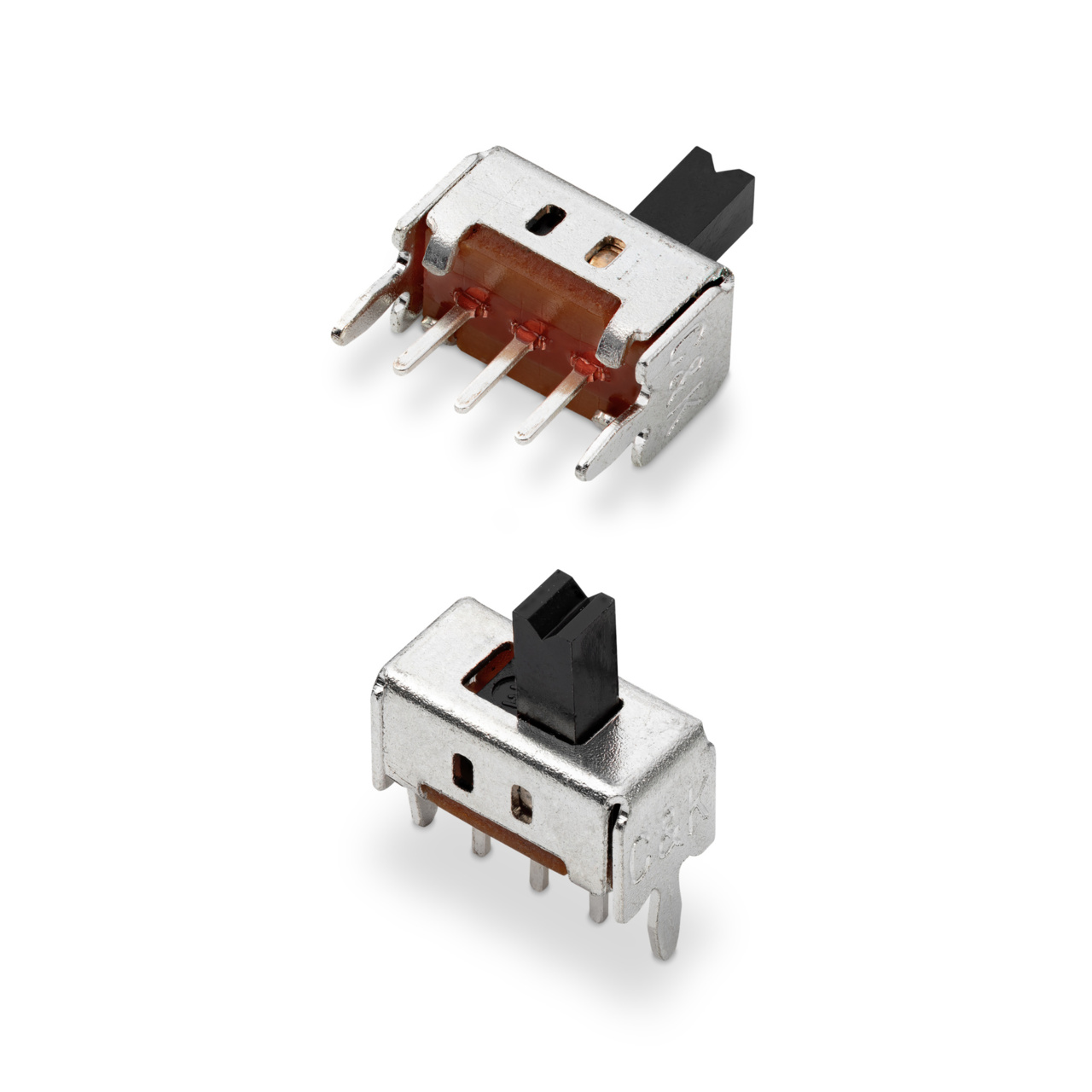

SWITCH OS103011MS8QP1 | Series: OS
The OS series miniature slide switch is made with Halogen-free materials and comes with a variety of actuators and terminations, optional PC or panel mounting, shorting or non-shorting contacts, and gold or silver plating. These features make the OS series attractive to designers in test & measurement equipment, computer peripheral & network products, and consumer products industries.
| Property | Value |
|---|---|
Circuitry | SP3T |
Activation Type | Maintain |
Switch Function | On-On-On |
Rating - Maximum Current | 0.2 A |
Activation Orientation | Top actuated |
Mechanical Life Cycles | 10000 |
Illumination | Not applicable |
Contact Plating | Silver |
Terminals Type | Thru Hole |
Terminals Plating | Lead free silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Operating Force | Min 1.5 N / Nominal 2.5 N / Max 3.5 NMin 150 gf / Nominal 250 gf / Max 350 gf |
Terminals Complementary Information | THT |
- Variety of actuators & terminations
- Shorting or non-shorting contacts
- RoHS compliant
- Halogen free material
- PC and panel mounting
OS103011MS8QP1 Applications
- Test & measurement equipment
- Computer peripherals & network products
- Consumer products
OS103011MS8QP1 Resources
