TS01CQE

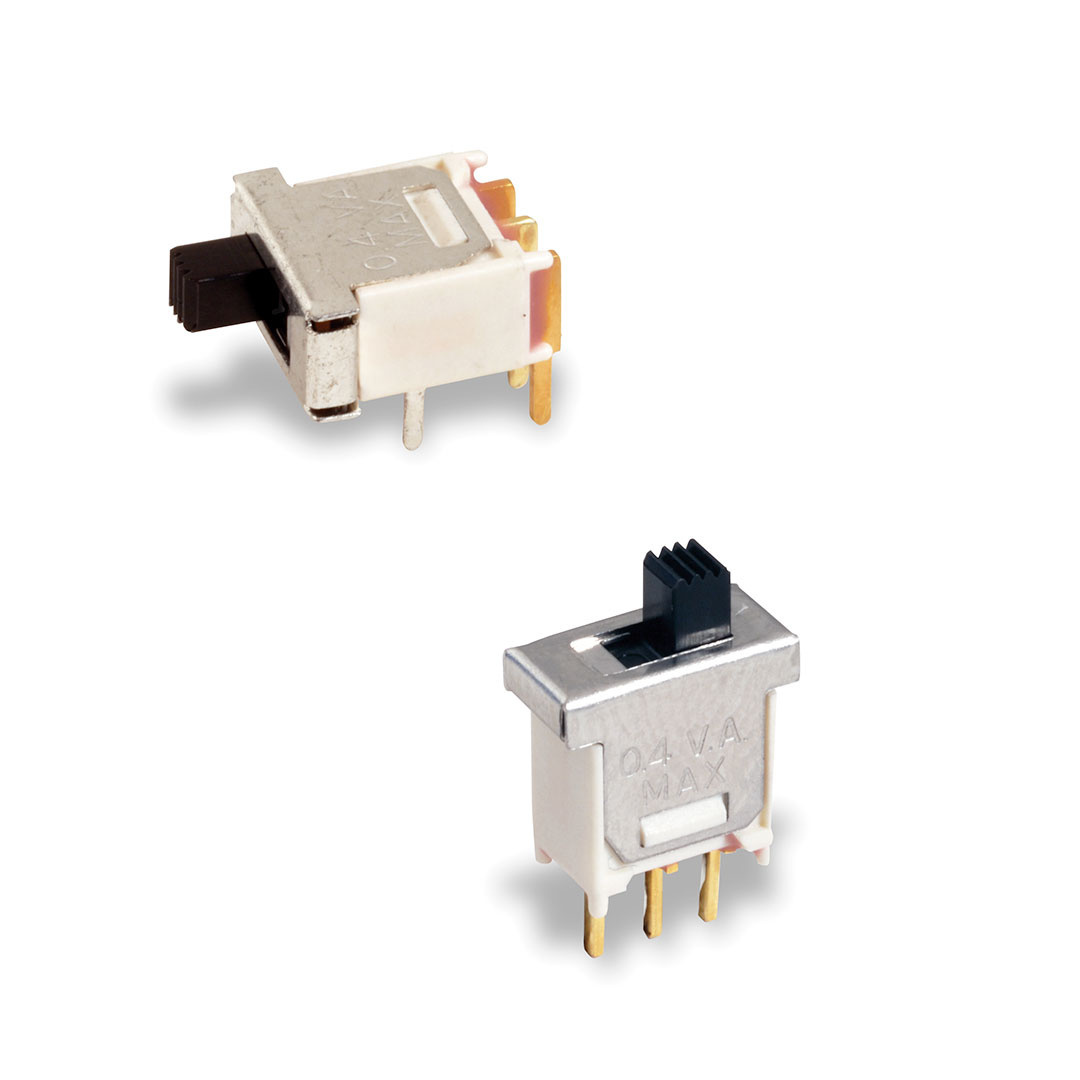

SWITCH TS01CQE | Series: TS
The TS series tiny slide switches feature reliable contact design, which ensures a long electrical life. With ratings up to 3 A, the TS series are epoxy terminal-seal compatible with bottom wash cleaning capabilities. TS switches are found in test & measurement equipment, computers & peripherals, and telecommunications & networking equipment.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Switch Function | On-None-On |
Rating - Maximum Current | 3 A |
Contact Plating | Silver |
Terminals Type | Thru Hole |
Operating Force | Min 1 N / Nominal 2 N / Max 3 N |
Electrical Rating - Activated - Voltage AC | Max 120 Volt |
Activation Orientation | Top actuated |
Electrical Rating - Activated - Voltage DC | Max 28 Volt |
Terminals Plating | Lead free gold |
Terminals Complementary Information | THT |
Circuitry | SPDT |
- Ratings up to 3 amps
- Epoxy terminal-seal compatible with bottom wash cleaning
- RoHS compliant
- Reliable contact design ensures long electrical life
TS01CQE Applications
- Test & measurement equipment
- Computers & peripherals
- Telecommunications & networking equipment
TS01CQE Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| TS01CQE | SWITCH TS01CQE | View More |
