HBS1GFA2SP011C

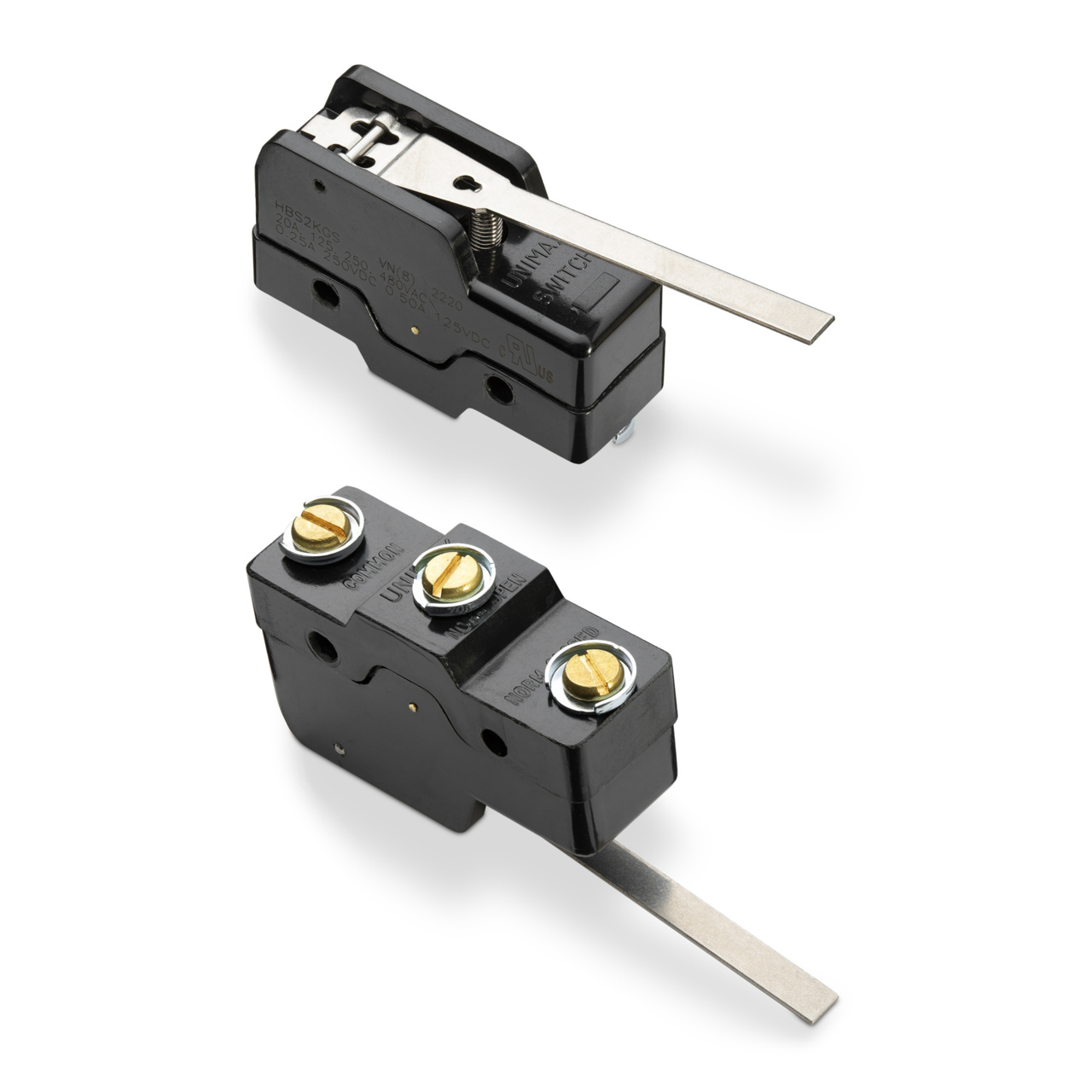

SWITCH HBS1GFA2SP011C | Series: HB
Designers of thermostats, motors and industrial controls need a highly-responsive, protected switch that can withstand repeated use. That’s why so many turn to HB series single pole standard precision snap-acting switch. The HB series features low differential travel and high repeatability, comes in a sealed actuator and case, and is available with single and double pole circuitry, to ensure that thermostats and other controls respond to use the same way – regardless of whether it’s the first or the thousandth use.
| Property | Value |
|---|---|
Circuitry | SPDT NO / NC |
Activation Type | Momentary action |
Switch Function | On-Off-On |
Rating - Maximum Current | 20 A |
Ingress Protection | IP 65 |
Terminals Plating | Lead free tin |
- Low differential travel, high repeatability
- Single and double pole circuitry
- Sealed actuator and case
- Long life—150.000 cycles typical
HBS1GFA2SP011C Applications
- Thermostats
- Motors
- Industrial controls
