LCS012S26SDC

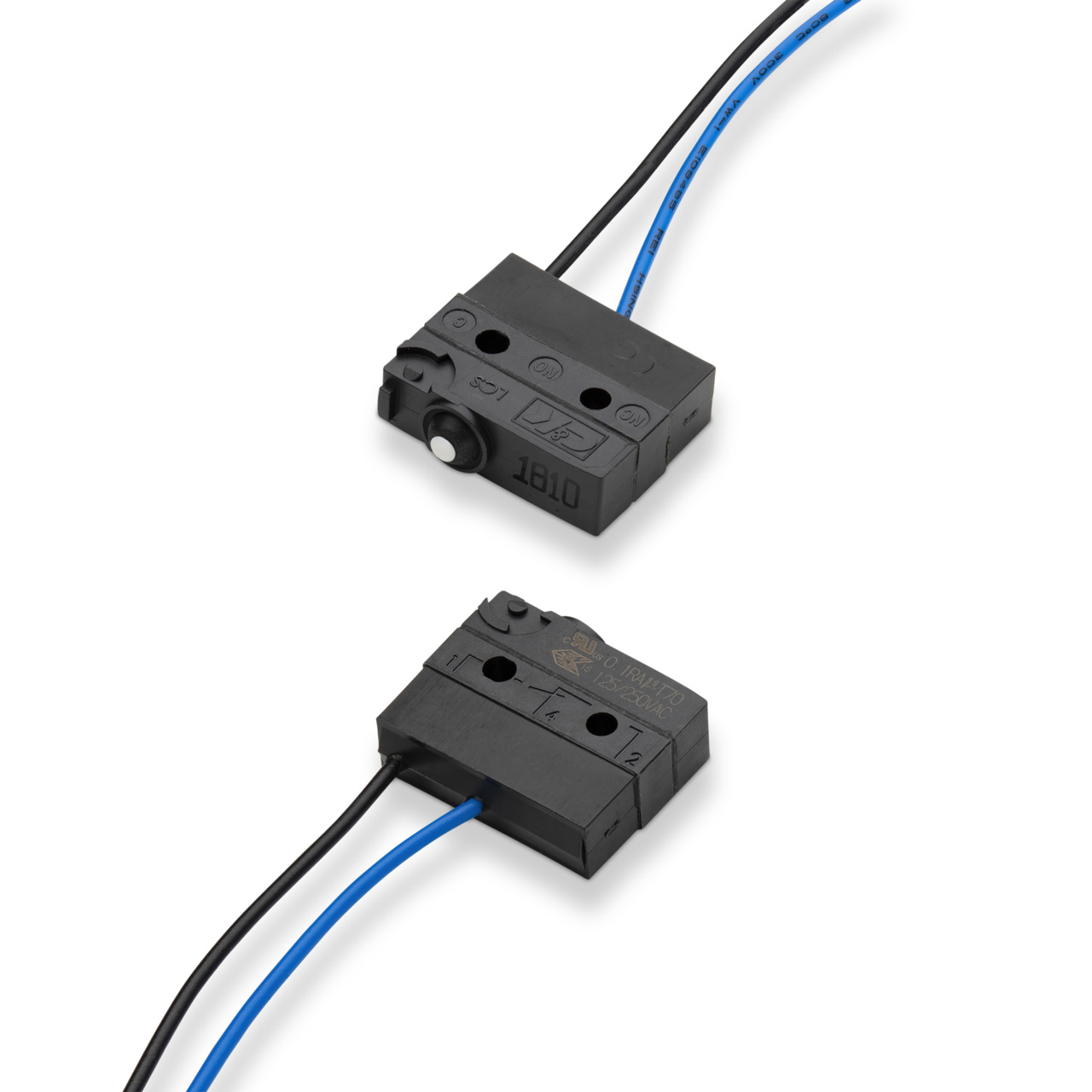

SWITCH LCS012S26SDC | Series: LCS
The LCS series small size sealed snap-acting switch is used in applications for motorized equipment, sump pumps and thermostatic controls because of its ability to perform in harsh environmental conditions. The LCS series feature a compact design, quick connect features, solder terminals, PC terminals and wire leads – and give applications a long life and a high electrical capacity.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Momentary action |
Rating - Maximum Current | 0.1 A |
Activation Orientation | Top actuated |
Ingress Protection | IP 67 |
Terminals Plating | Lead free silver |
Mechanical Life Cycles | 1000000 |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage AC | Max 250 Volt |
Operating Force | Max 0.68 NMax 68 gf |
Illumination | Not applicable |
- Compact design
- Long life and high electrical capacity
- Quick connect, solder terminals, PC terminals, wire leads
- RoHS compatible, RoHS compliant
- IP67 for standalone switch except the metal terminal part; full IP67 protection when potted with wire version
- Wide variety of actuator styles
LCS012S26SDC Applications
- Motorized equipment
- Sump pump
- Thermostatic controls
- Computers
- Air conditioners
- Automotive: door latch, seat position detection, EV charging
