MS-118305-G
MS-118305-G | Series: MS

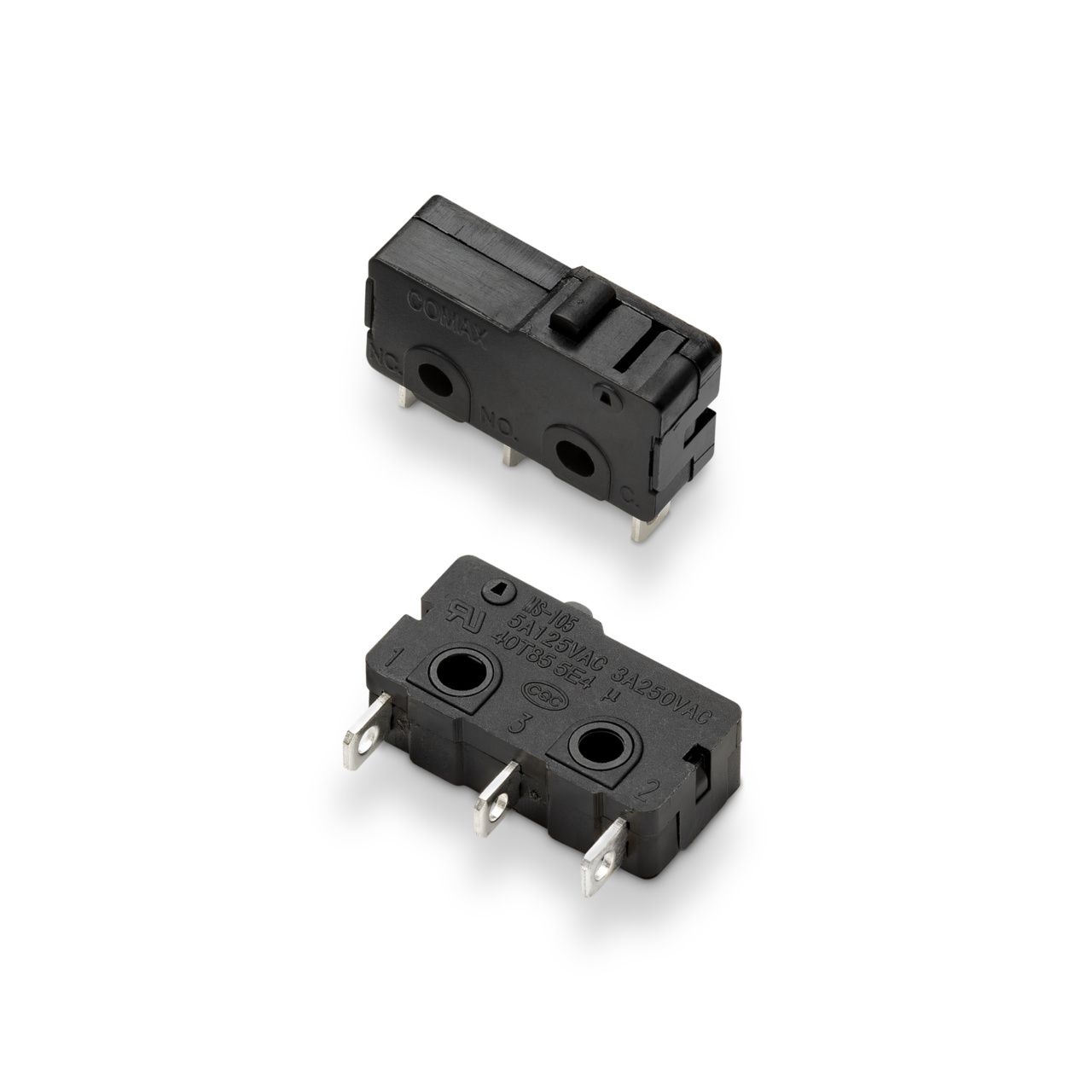

The MS series mini size snap-acting switch is perfect for use in industrial applications, appliances and consumer electronics because of its ability to withstand repeated use while continuing to respond to various levels of operating force. The MS series features detect interlock and movement as well as different lever options, giving designers the options they need to continue to innovate.
| Property | Value |
|---|---|
Circuitry | SPDT NO |
Activation Type | Momentary action |
Switch Function | On-Off-On |
Rating - Maximum Current | 5 A |
Activation Orientation | Top actuated |
Mounting Method | Post |
Terminals Type | Solder Lugs |
Terminals Plating | Lead free silver |
Contact Plating | Silver |
Operating Force | Min 0.1 N / Nominal 0.25 N / Max 0.4 N |
Contacts | Solder Lugs |
- Detect interlock and movement
- Different lever options
- Various operating forces
- Extended mechanical life
- UL Recognition on some designs
- RoHS compatible and compliant
- Customization available
MS-118305-G Applications
- Office equipment
- Consumer electronics
- Appliances
- Audio & visual equipment
- Medical
- Industrial meters
MS-118305-G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| HAMS0012 | MS-118305-G | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
