TFCJH8VA155AC

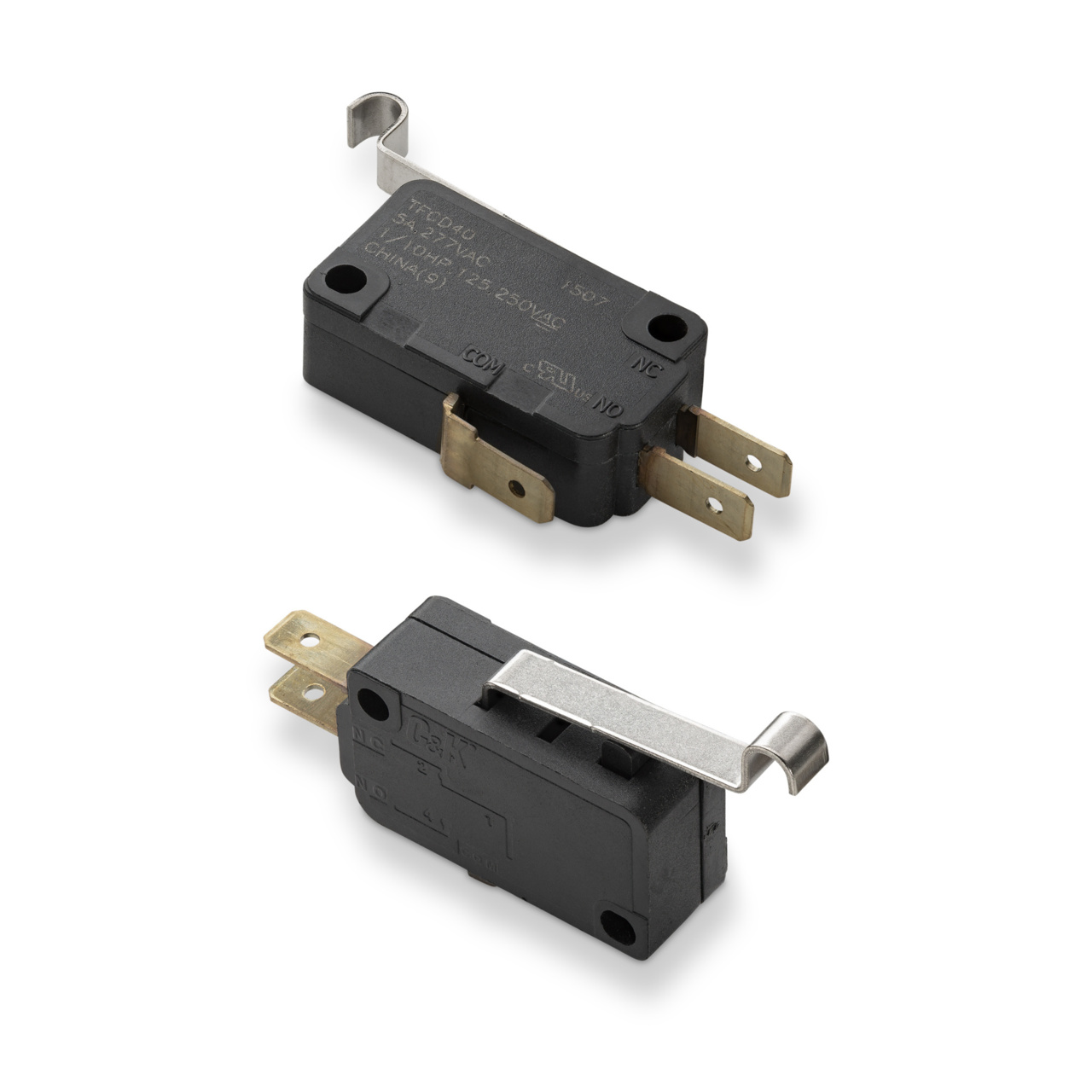

SWITCH TFCJH8VA155AC | Series: TF
The TF series mid size snap-acting switch features a broad range of operating forces, ratings up to 21A and a wide variety of actuator styles to fit the specific needs of any design. Often used in motor controls, thermostatics and portable tools, designers across the globe turn to the TF series for its performance and resilience.
| Property | Value |
|---|---|
Circuitry | SPDT |
Activation Type | Momentary action |
Terminals Type | Offset Quick Connect |
Terminals Complementary Information | 0.25 |
Terminals Plating | Without plating |
Contact Plating | Silver |
Operating Force | Max 85 gfMax 3 oz |
Electrical Height | Min 19.81 mm / Nominal 20.57 mm / Max 21.33 mm |
Height | 15.7 |
Electrical Rating - Activated - Voltage AC | Min 125 Volt / Max 277 Volt |
Rating - Maximum Current | 5 A |
Contacts | Offset Quick Connect |
- Broad range of operating forces
- Ratings up to 21 amps
- Quick connect terminations
- Wide variety of actuator styles
TFCJH8VA155AC Applications
- Motor controls
- Thermostatics
- Portable tools
