ZMW00AT11PCAA
ZMW00AT11PCAA | Series: ZMW

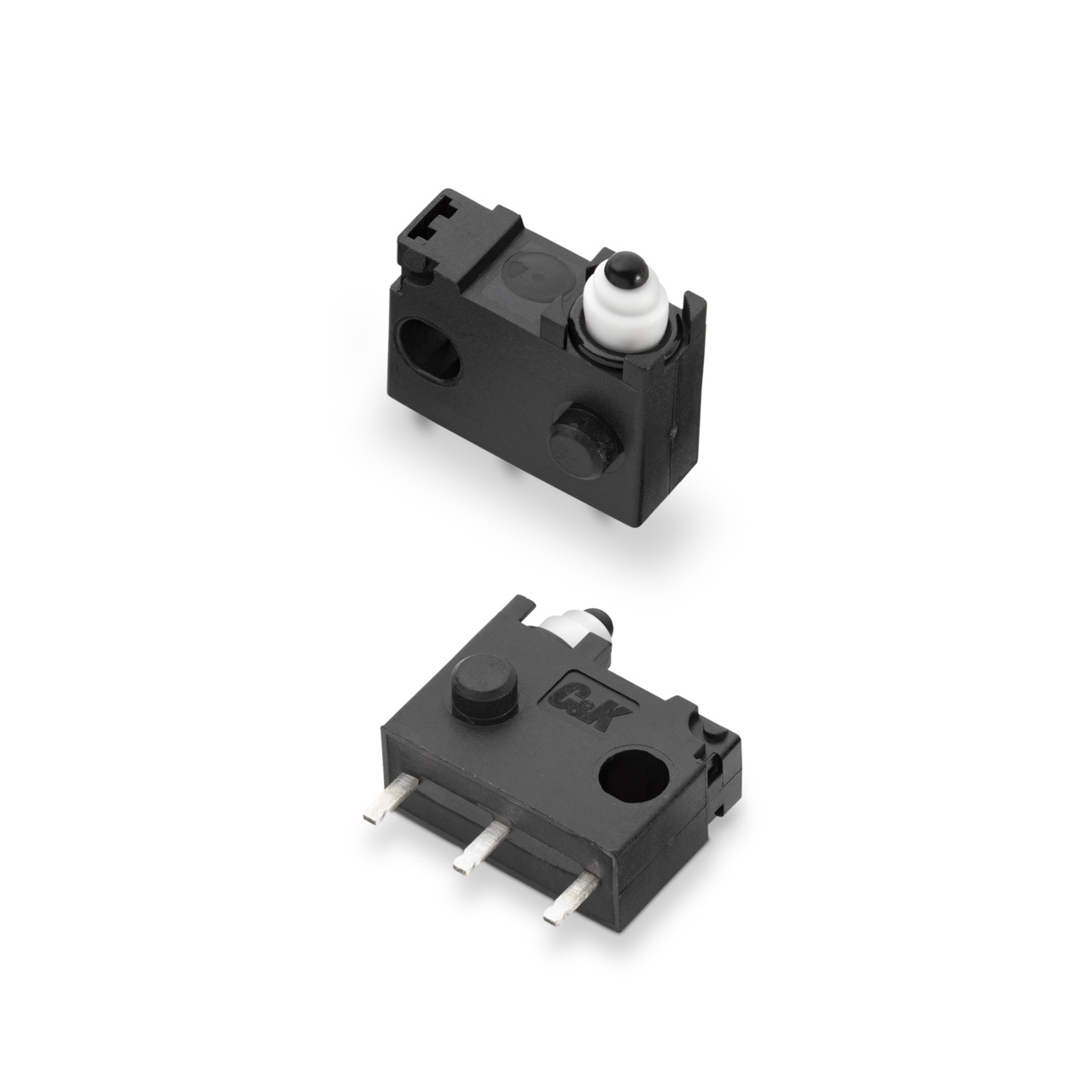

ZMW series mini size snap-acting switches are often found used in automotive applications. Featuring a compact size (which is ideal when space is limited) and a reliable snap-acting mechanism, the ZMW series fulfill adequate long stroke requirement, ensuring they stand up to repeated use.
| Property | Value |
|---|---|
Circuitry | SPDT NO / NC |
Activation Type | Momentary action |
Rating - Maximum Current | 0.1 A |
Terminals Type | Thru Hole |
Terminals Plating | Lead free silver |
Mechanical Life Cycles | 500000 |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 30 Volt |
Operating Force | Max 1.85 NMax 185 gf |
Illumination | Not applicable |
Contacts | Thru Hole |
- Long & adequate stroke setting for high reliability & insulation
- Silent actuation for reduced audible click
- IP67 for standalone switch except the metal terminal part; Full IP67 protection when potted with wire version
- RoHS compatible & compliant
- Compact size – ideal when space is limited
- Twin contacts design – sliding contacts prevent pollution of foreign materials
ZMW00AT11PCAA Applications
- Industrial
- Home appliances
- Automotive: door latch, seat position detection, EV charging
ZMW00AT11PCAA Resources
