EDM650GAC
EDM 650 G AC LFS | Series: ED and EDM

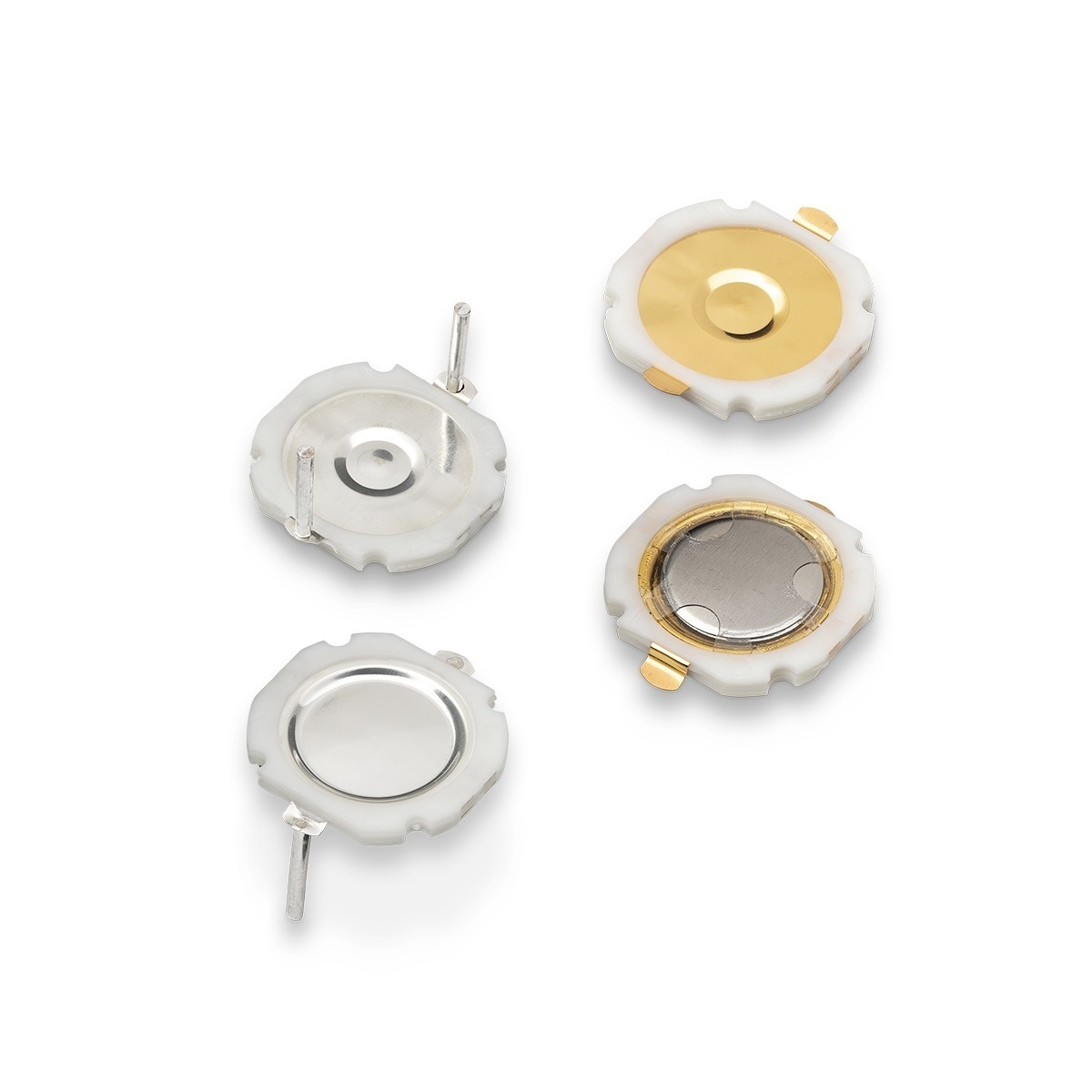

The ED keyswitches are self-cleaning, short travel sealed tact switches commonly found in panels and various forms of instrumentation. Known for providing great tactile feedback, the ED series is available in three actuation forces and is compliant with RoHS regulations. Throughout the aerospace industry, the EDM sealed tact keyswitches are used in a variety of instrument panels, giving users a high-performance, long-lasting switch with great tactile feedback. EDM keyswitches are built for short travel and are self-cleaning, with three actuation forces available.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 0.05 mA |
Operating Force | Min 4.88 N / Nominal 6.5 N / Max 8.13 N |
Electrical Travel | Min 0.35 mm / Nominal 0.6 mm / Max 0.85 mm |
Mechanical Life Cycles | 1000000 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 100 Volt |
Terminals Plating | Lead free silver |
Terminals Complementary Information | with pc pins |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Short travel
- Good tactile feedback
- Self cleaning
- 3 actuation forces
EDM650GAC Applications
- Aircraft
- Instrument
- Panels
- Radio equipment
