ILSTA18050
ILS TA180 50 | Series: ILS

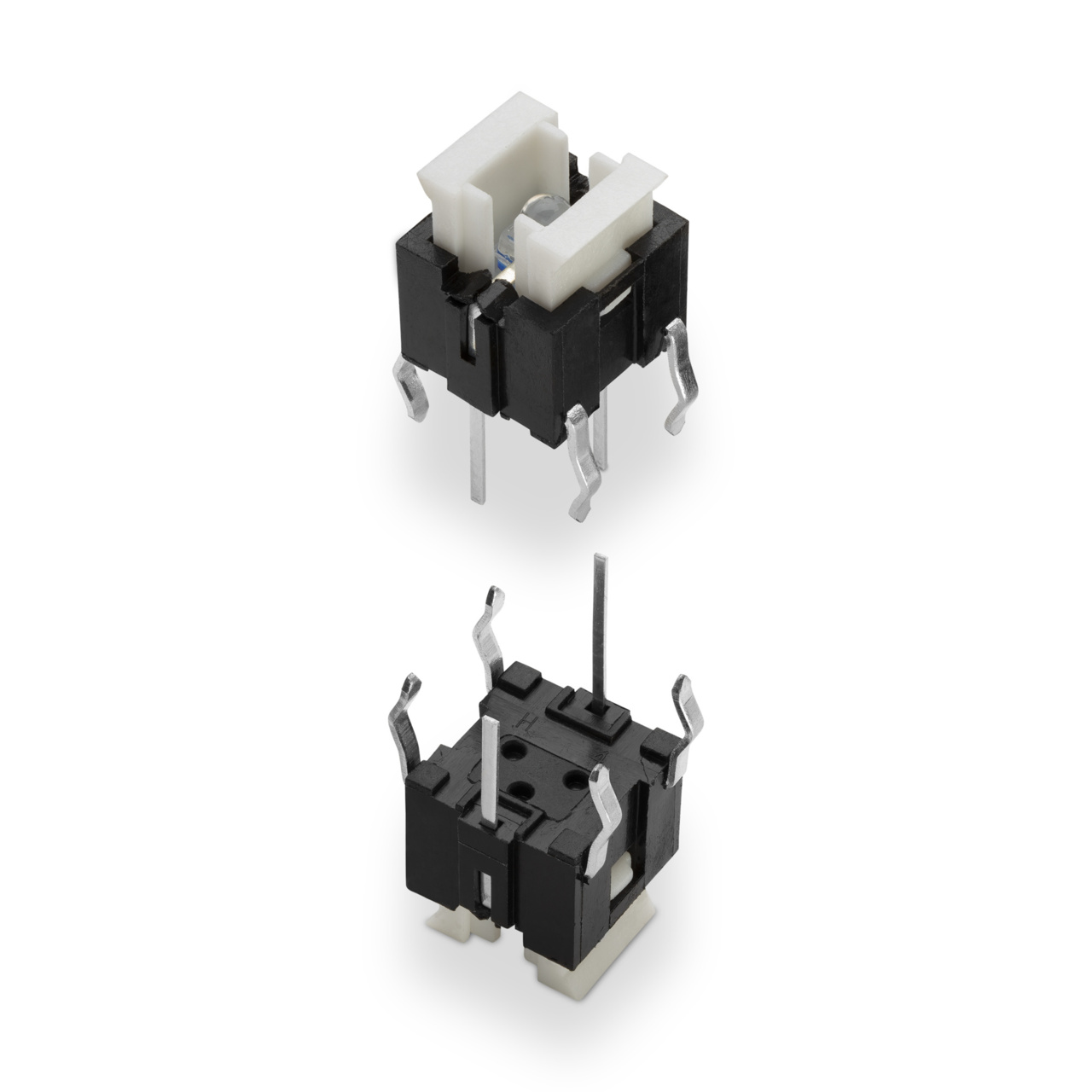

The ILS series is a new range of illuminated tact switch with different height and integrated LED in THT soldering leads.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 100 mA |
Operating Force | Min 1.49 N / Nominal 1.77 N / Max 2.06 NMin 150 gf / Nominal 180 gf / Max 210 gf |
Electrical Travel | Min 0.15 mm / Nominal 0.25 mm / Max 0.35 mm |
Mechanical Life Cycles | 100000 |
Illumination | Yes |
Light - Color | White |
Electrical Rating - Activated - Voltage DC | Max 30 Volt |
Terminals Type | Thru Hole |
Terminals Complementary Information | THT |
Light - Typical Forward Voltage | 3.6 |
Circuitry | SPST NO |
- Compact Size
- THT versions
- Different heights
- Several LED colors
- High life cycles
ILSTA18050 Applications
- Consumer electronics
- Health monitoring device
- Test & measurement
- Audio/Video control board
