ITS13FR2ST
SWITCH ITS13FR2ST | Series: ITS

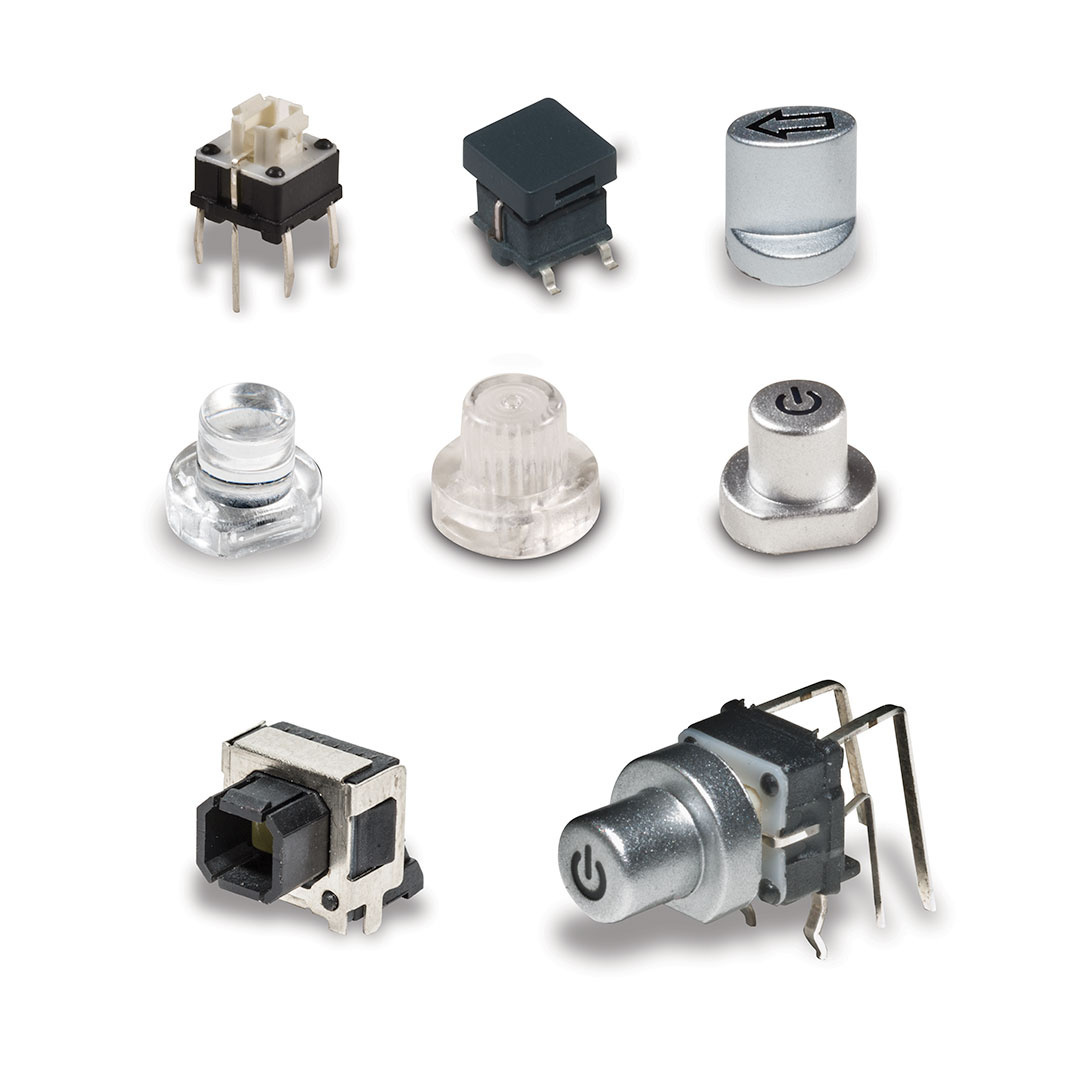

The ITS series illuminated tactile switch features vertical and right angle thru-hole and SMT models, ideal for a wide range of products – such as consumer electronics, medical devices and audio/video applications. In addition, multiple custom caps and legends are available to meet application-specific requirements.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Maximum Current | 50 mA |
Operating Force | Min 1.1 N / Nominal 1.6 N / Max 2.1 NMin 110 gf / Nominal 160 gf / Max 210 gf |
Electrical Travel | Min 0.15 mm / Nominal 0.25 mm / Max 0.35 mm |
Illumination | Yes |
Light - Color | Red |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Max 12 Volt |
Terminals Type | Thru Hole |
Terminals Plating | Silver |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Vertical and right angle SMT models
- Vertical and right angle thru-hole models
- Multiple caps and legends
- Several LED colors and bi color option
- RoHS compliant /compatible
ITS13FR2ST Applications
- Consumer electronics
- Server/storage
- Medical devices
- Test/Measurement/ Instrumentation
- Audio/Video
- Computers/Peripherals
- Security
