K5ATWH43GP

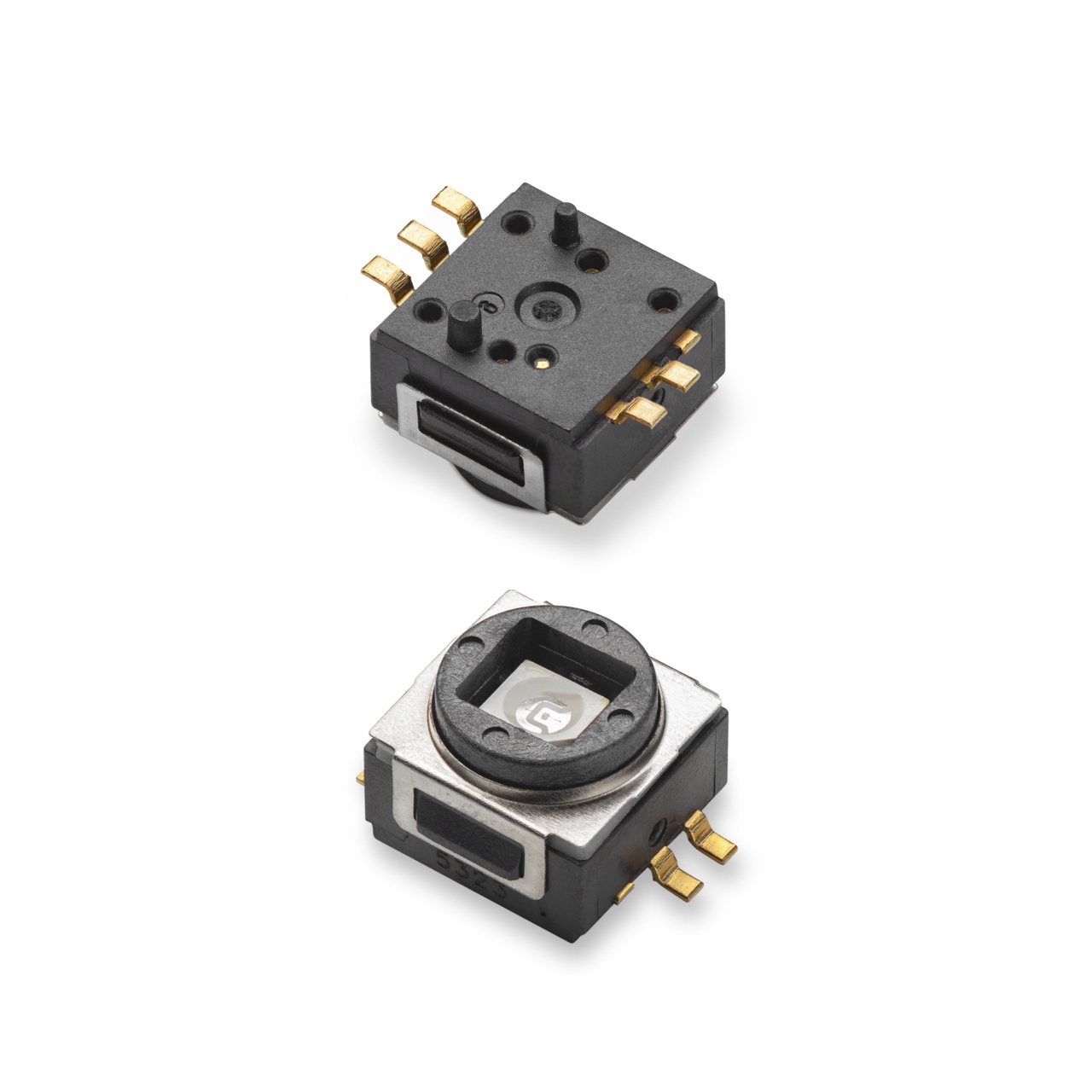

K5ATWH43GP | Series: K5AT
The K5AT series illuminated SMT tact switch offers high, bright LED lights and reduced space usage on board “2 in 1”. Its excellent ergonomics, sharp tactile feel, and audible click make it ideal for network infrastructure, telecom, and medical applications which need to perform in the harshest environments.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Rating - Maximum Current | 100 mA |
Operating Force | Min 3 N / Nominal 4 N / Max 5 N |
Electrical Travel | Min 0.3 mm / Nominal 0.45 mm / Max 0.6 mm |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Terminals Plating | Lead free gold |
Activation Orientation | Top actuated |
Mounting Type | Post |
Terminals Complementary Information | G |
Terminals Type | Surface mount |
Circuitry | SPST NO |
- High bright LEDs
- Gold plated dome contact offering superior contact reliability in time
- 40 N overload
- Tape and reel
- RoHS compliant and compatible
- Excellent ergonomics: sharp tactile feel and audible click
- Reduced space usage on board “2 in 1”
K5ATWH43GP Applications
- Application requiring illumination
- Server, storage
- Network infrastructure
- Telecom
- Medical
