KMT223GHF
KMT223G HF LFG | Series: KMT2

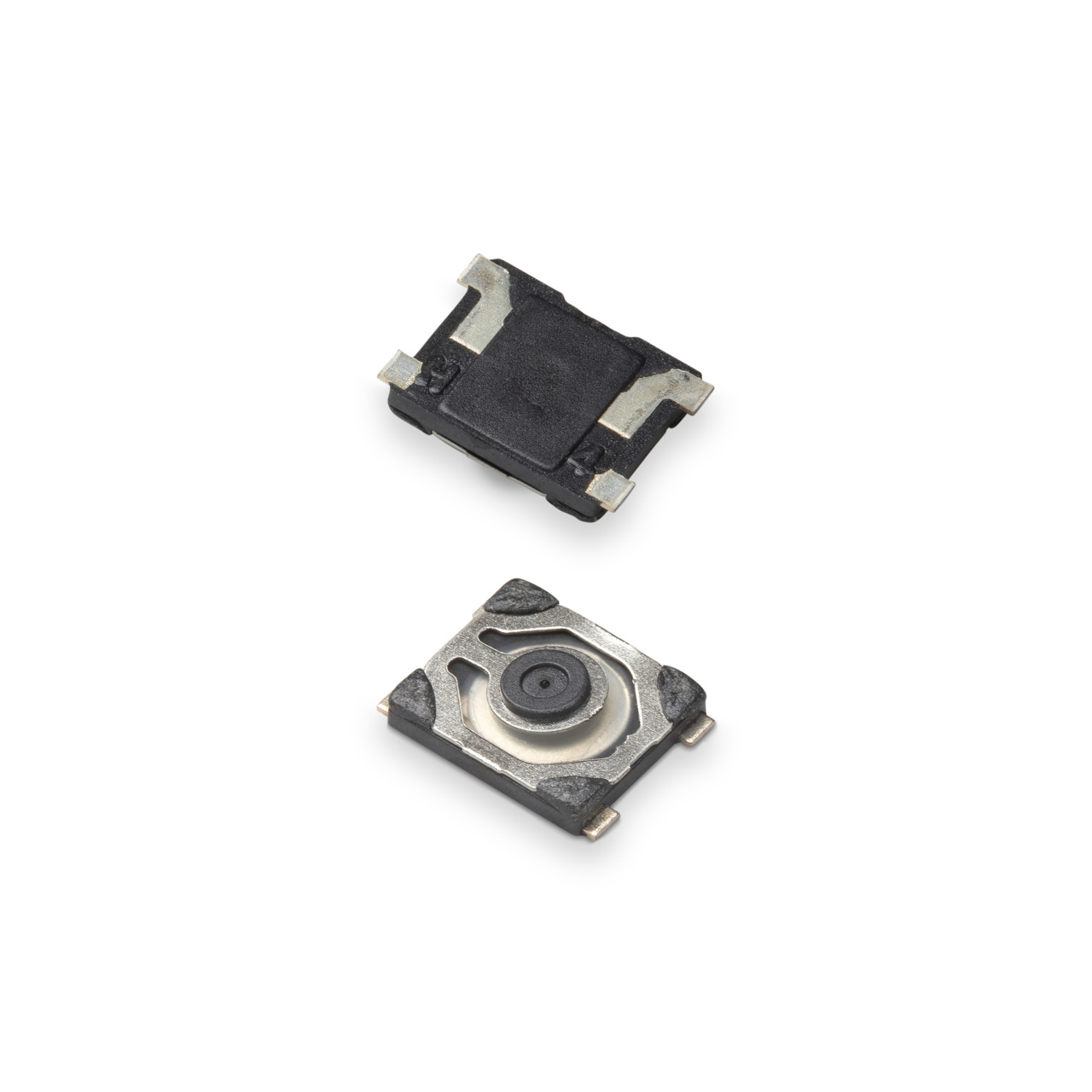

The KMT2 series nano-miniature SMT top actuated switch has the smallest footprint and thickness with an integrated actuator. Its high number of cycles within the smallest packaging makes it an ideal choice for designers working with limited space in applications such as hearing aids, Bluetooth headsets, and MP3 accessories.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 1.2 N / Nominal 1.6 N / Max 2 N |
Electrical Travel | Min 0.05 mm / Nominal 0.15 mm / Max 0.25 mm |
Mechanical Life Cycles | 150000 |
Ingress Protection | IP 54 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 0.7 |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | G |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
- Smallest footprin
- High number of cycles within the smallest packaging
- Smallest thickness with integrated actuator
- Ground pin option
- Halogen free
KMT223GHF Applications
- Mobile Phones
- Hearing Aids
- MP3 accessories
- Bluetooth Headset
KMT223GHF Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y34H22310FP | KMT223G HF LFG | View More |
