KSA0V331
KSA0V331 LFGR | Series: KSA and KSL

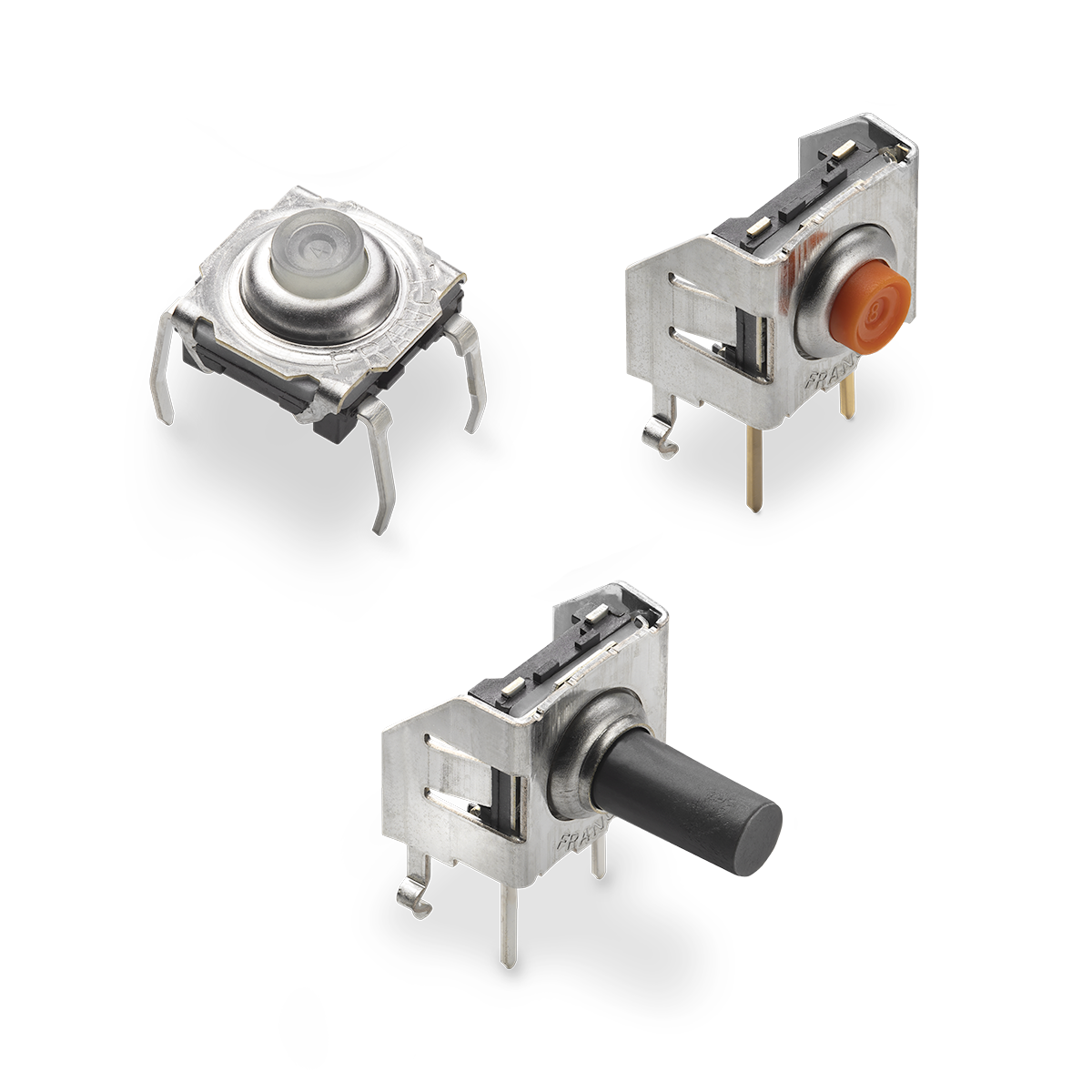

The KSA and KSL series sealed tact switches feature top or side actuation and cambered terminals for secure self-retention. Designed for both automated and manual insertion processes, these switches offer high reliability and ease of integration. Their robust construction and versatile mounting options make them ideal for use in telecommunication networks, industrial systems, and automation applications.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 1 N / Nominal 1.4 N / Max 1.8 N |
Electrical Travel | Min 0.3 mm / Nominal 0.5 mm / Max 0.7 mm |
Mechanical Life Cycles | 1000000 |
Ingress Protection | IP 60 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 7.7 |
Terminals Type | Thru Hole |
Terminals Plating | Lead free gold |
Terminals Complementary Information | V |
Washing Process - Compatibility | Yes |
Activation Orientation | Side actuated |
Circuitry | SPST NO |
- Designed for automatic or manual insertion
- Cambered terminals to ensure self retention
- Top or side actuated
- Large choice of caps
- RoHS compliant and compatible
KSA0V331 Applications
- Automotive
- Industrial
- Telecommunication networks
KSA0V331 Resources
Link has been copied to clipboardShowing 1 to 2 of 2 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y33R33119FPLFG | KSA0V331 LFGR | View More | |||||||
| Y33R33119FPLFT | KSA0V331 LFTR | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
