KSC442G70SHPF
KSC442G 70SH LFS PF | Series: KSC PF

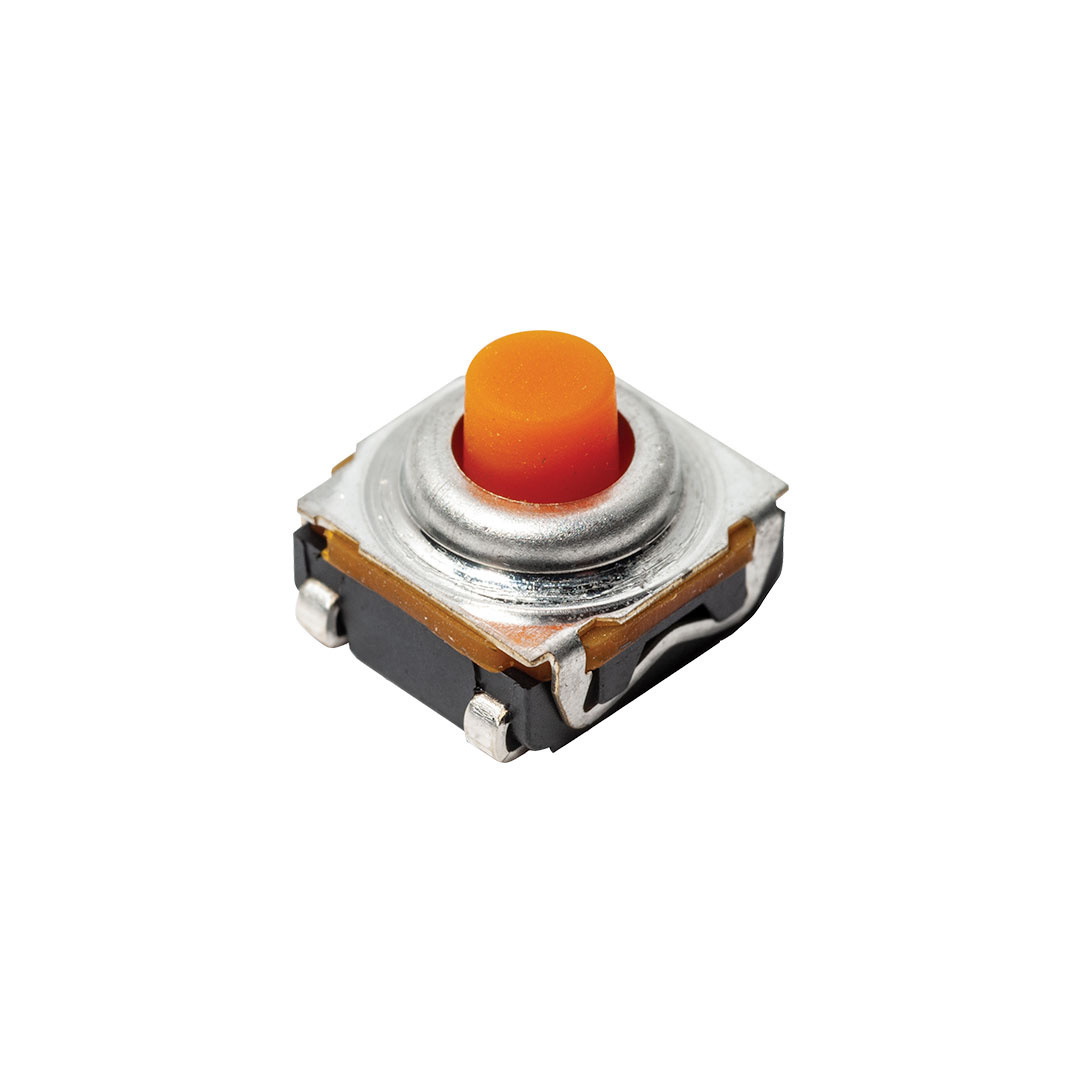

The KSC PF series of sealed tactile switches for SMT are IP67 rated, 5.2mm high momentary action switches featuring a soft actuator with an extended cage, designed to be encapsulated in protective potting material, which helps safeguard its components from environmental damage. It is ideal for use in rugged applications in which moisture, dust or vibration may be present. The switches are available with a variety of operating forces and in a range of electrical lifespans, depending on model. The KSC PF series are designed to give users a positive adaptable tactile feeling.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 3 N / Nominal 4 N / Max 5 N |
Electrical Travel | Min 0.4 mm / Nominal 0.65 mm / Max 0.9 mm |
Mechanical Life Cycles | 1000000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 5.2 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Max. power 1 VA @ 32 VDC
- Gullwing or J-bend termination
- Operating life of up to 1 Mio cycles
- IP67 sealed
- Compact footprint fits applications where space is limited
- Extended cage allows for potting material to encapsulate the switch
- SMT automated assembly compatibility for high-volume production efficiency
KSC442G70SHPF Applications
- Transportation
- Medical equipment
- Industrial electronics
- High end consumer electronics
