KSCSLT221J

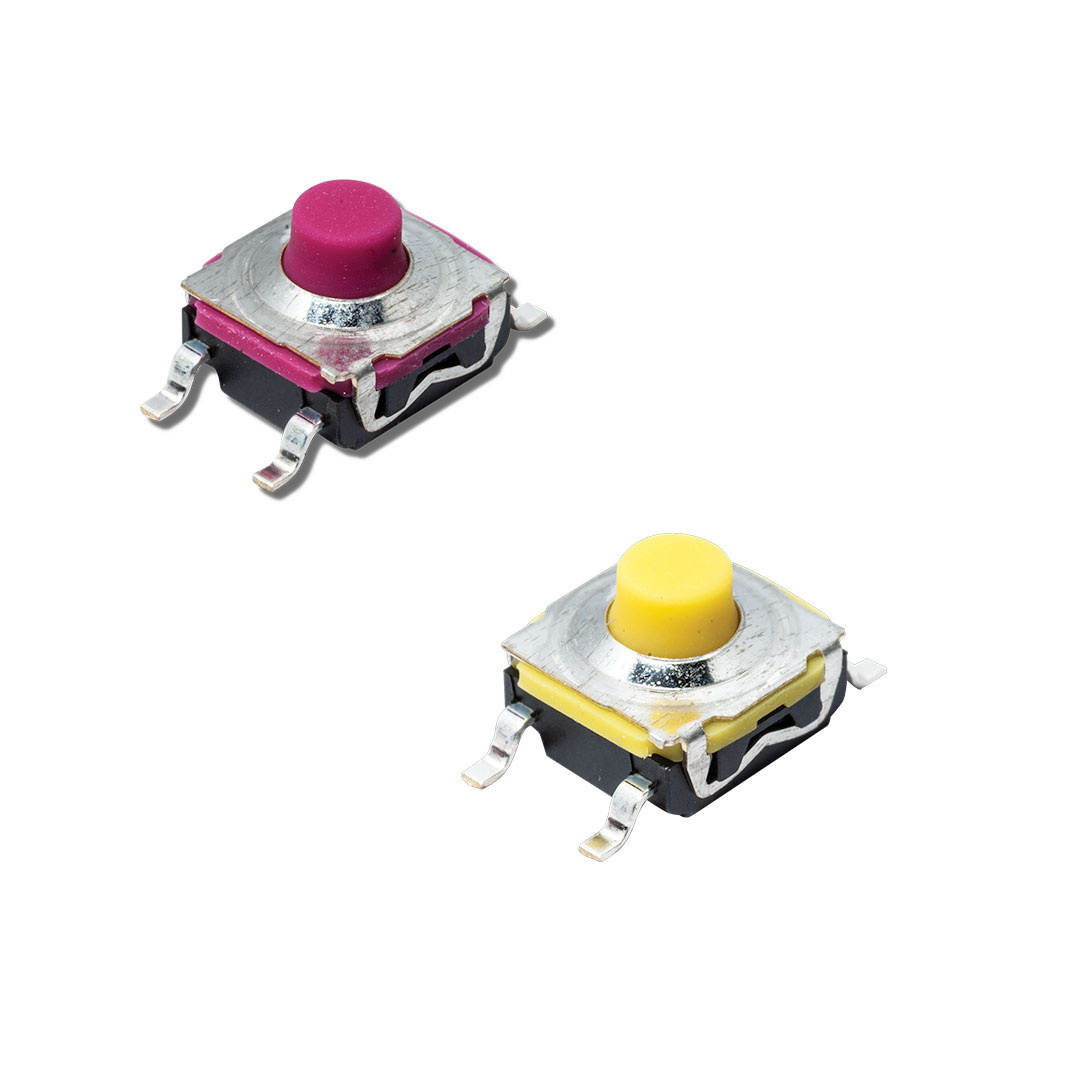

KSC SLT 221J LFS | Series: KSC SLT
The KSC SLT series of tactile switches for SMT offers long travel and soft sound. The 5.0 mm high momentary action tactile switches feature a soft actuator and are IP40 rated. The switches are available with 2.4N or 3.5N operating force and have a lifespan of 200,000 cycles, providing good tactile feeling. They are ideal for automotive interior, front panel, and instrumentation applications.
| Property | Value |
|---|---|
Circuitry | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 1.7 N / Nominal 2.55 N / Max 3.4 N |
Electrical Travel | Min 1.1 mm / Nominal 1.35 mm / Max 1.6 mm |
Mechanical Life Cycles | 200000 |
Ingress Protection | IP 40 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 5 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | J |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
- Long travel
- Soft sound
- IP40
- J & G terminations
- Tape & reel
- Compatible with lead free reflow soldering process of SMT devices
- Low halogen, RoHS and REACH compliant
KSCSLT221J Applications
- Automotive interior
- Front panel
- Instrumentation
