KSC421V2RT

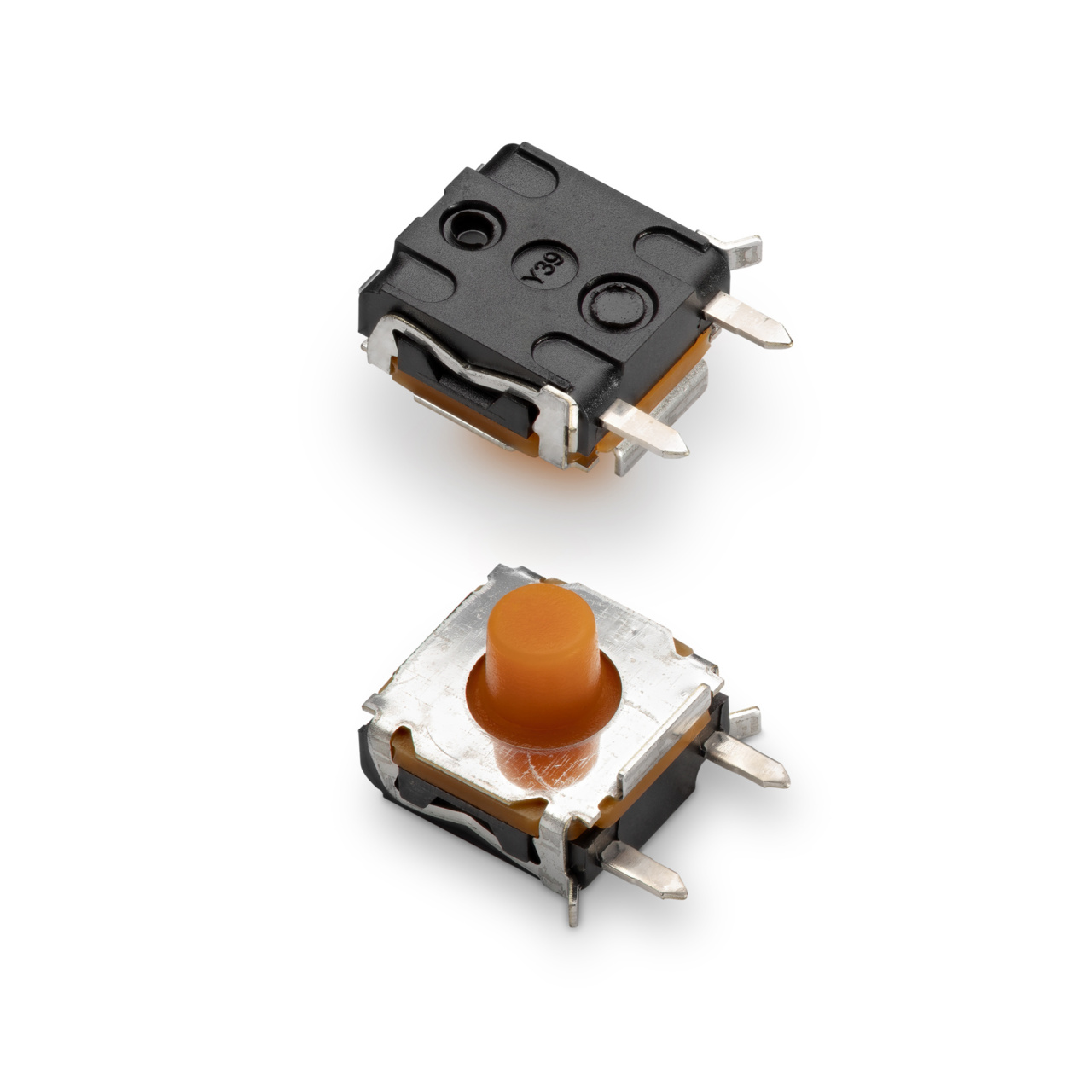

KSC421 V2 RT LFS | Series: KSC V2
The KSC V2 series of side actuated sealed tactile switches feature a unique design that allows for easy side or rocker integration, which permits haptic adaptability and ensures that the switch meets specific tactile feedback and sound requirements. The KSC V2 switches are IP67 rated and feature a soft actuator of 2.3 or 3.9 mm height. They are available with a variety of operating forces and in a range of electrical lifespans, depending on the model - ideal for industrial electronics, network equipment, and automotive applications.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 1.3 N / Nominal 1.8 N / Max 2.3 N |
Electrical Travel | Min 0.1 mm / Nominal 0.3 mm / Max 0.5 mm |
Mechanical Life Cycles | 300000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 6.7 |
Terminals Type | Pin in paste |
Terminals Plating | Lead free silver |
Terminals Complementary Information | V |
Washing Process - Compatibility | Yes |
Activation Orientation | Side actuated |
Circuitry | SPST NO |
- Full SMD side actuated
- Haptic adaptability
- Pin in paste terminations
- Tape & reel
- IP67
- Compatible with lead free reflow soldering process of SMT devices
- Low halogen, RoHS and REACH compliant
KSC421V2RT Applications
- Transportation
- Industrial electronics
- Network equipment
- Telecommunications
KSC421V2RT Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y31A21948FPLFS | KSC421 V2 RT LFS | View More |
