KSC143G
KSC143G LFG | Series: KSC1

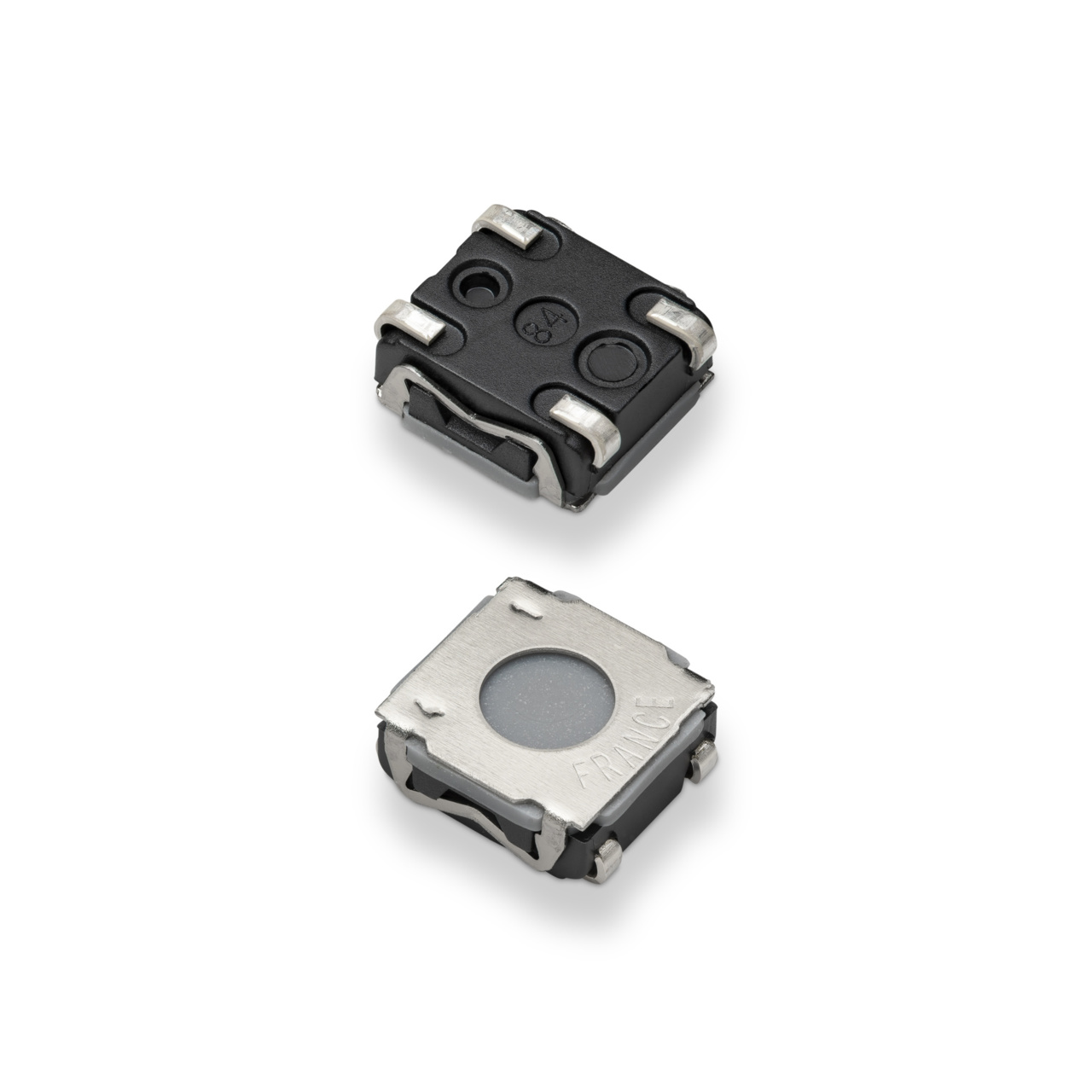

The KSC1 series sealed tact switch for SMT is a 2.5mm high switch, designed to give users a positive tactile feeling when used. Perfect for industrial electronics, consumer products, instrumentation or automotive applications, the KSC1 Series is IP67 rated and built to be highly responsive and long-lasting, even when used in the harshest of environments.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 0.1 mA |
Operating Force | Min 2.5 N / Nominal 3.3 N / Max 4.1 N |
Electrical Travel | Min 0.15 mm / Nominal 0.3 mm / Max 0.45 mm |
Mechanical Life Cycles | 200000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Gold |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 2.6 |
Terminals Type | Surface mount |
Terminals Plating | Lead free gold |
Terminals Complementary Information | G |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Without actuator, product height 2.5 mm
- Positive tactile feeling
- IP67
KSC143G Applications
- Industrial electronics
- Consumer products
- Instrumentation
- Transportation
KSC143G Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| Y31B43135FPLFG | KSC143G LFG | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
