KSC1001J
KSC1001J LFS | Series: KSC10

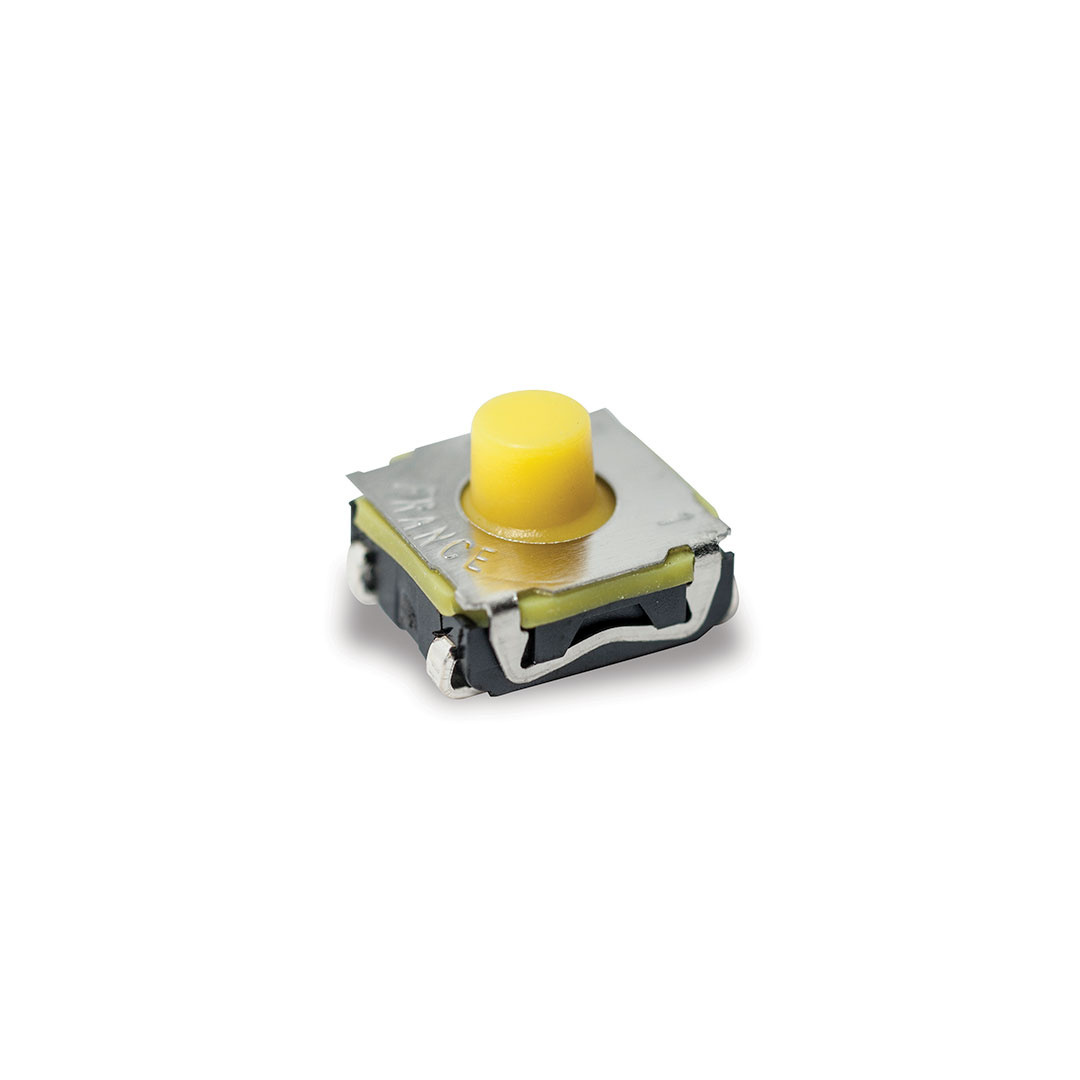

The KSC10 series sealed tactile switch for SMT gives users a positive adaptable tactile feeling – and its small size is ideal for products made specifically for industrial, consumer, automotive and instrumentation applications. The KSC10 is an IP67 rated, 4.9 mm high soft actuator switch.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 0.9 N / Nominal 1.45 N / Max 2 N |
Electrical Travel | Min 0.2 mm / Nominal 0.45 mm / Max 0.7 mm |
Mechanical Life Cycles | 5000000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
Height | 4.9 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | J |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- Positive adaptable tactile feeling
- J or G terminations
- Soft actuator 4.9mm high
- IP67
KSC1001J Applications
- Industrial electronics
- Instrumentation
- Automotive
- Consumer
