KSC241JDCT
KSC241J DCT LFS | Series: KSC2 DCT

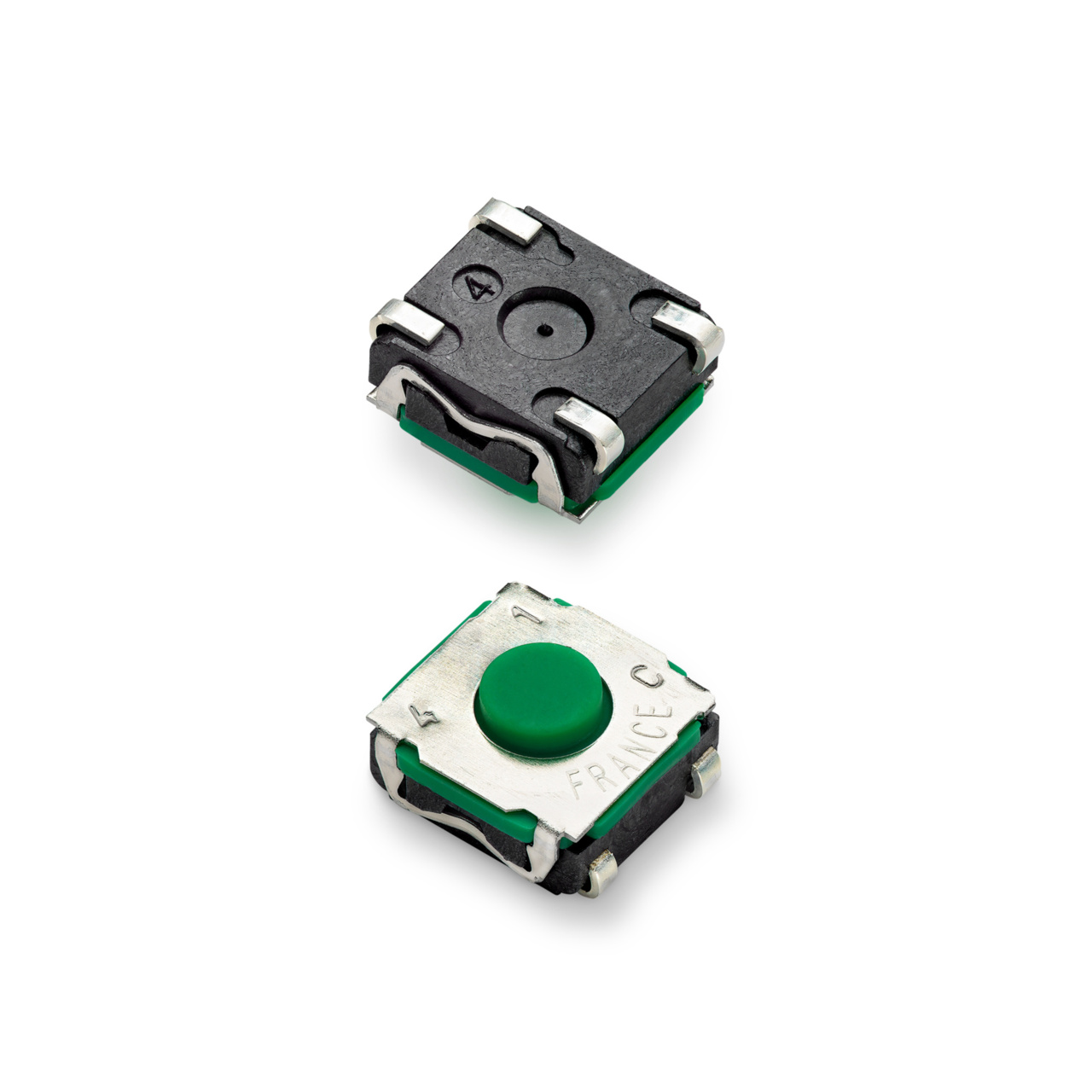

The KSC2 DCT series of sealed tactile switches for SMT are IP67 rated, 3.5mm high momentary action tactile switches, featuring a soft actuator. The switches have an operating force of 4.75N +/-1.25N and a lifespan of 300K cycles. The KSC2 series is designed to give users a positive tactile feeling.<.p>
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 3.5 N / Nominal 4.75 N / Max 6 N |
Electrical Height | Min 2.9 mm / Nominal 3.2 mm / Max 3.5 mm |
Mechanical Life Cycles | 300000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 24 Volt |
Electrical Rating - Released - Voltage | Min 0.04 Volt / Max 12 Volt |
Height | 3.5 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | J |
Washing Process - Compatibility | Yes |
Activation Orientation | Top actuated |
Circuitry | SPDT NO / NC |
- SPDT NC-NO function
- Electrical Height for easier integration due to more precise tolerances
- Soft actuator 3.5mm high
- IP67
- Compatible with JEDEC reflow soldering process of SMT devices
- Low halogen, RoHS and REACH compliant
- J bend terminals
KSC241JDCT Applications
- Industrial electronics
- Consumer products
- Transportation
- Medical
KSC241JDCT Resources
