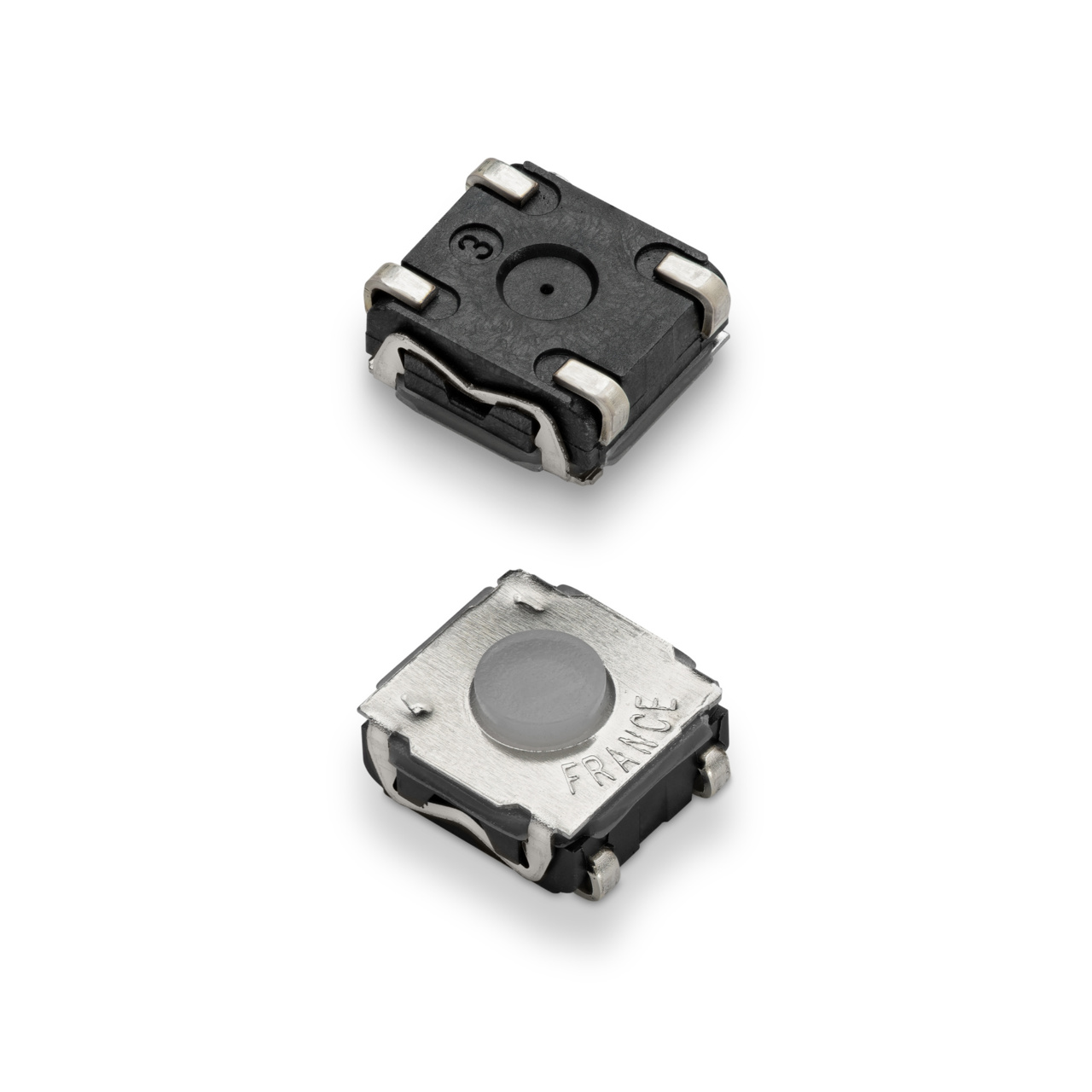

KSC2TE31J
KSC2TE31J LFS | Series: KSC2 TE
KSC2 TE tireless endurance tactile switch is a new KSC2 configuration with J leads, a soft actuator and a renewed combination of dome and support, upgrading the lifetime up to 10 million cycles. With a size of 6.2 x 6.3 mm and actuation forces at 1.6N, 2.8N and 4N, the switch is perfect for demanding applications such as applications in the industrial segment.
| Property | Value |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 2.1 N / Nominal 2.8 N / Max 3.5 N |
Electrical Travel | Nominal 0.3 mm |
Electrical Height | Min 3.05 mm / Nominal 3.25 mm / Max 3.45 mm |
Mechanical Life Cycles | 5000000 |
Ingress Protection | IP 67 |
Illumination | Not applicable |
Contact Plating | Silver |
Electrical Rating - Activated - Voltage DC | Min 1 Volt / Max 24 Volt |
Height | 3.5 |
Terminals Type | Surface mount |
Terminals Plating | Lead free silver |
Terminals Complementary Information | J |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
Circuitry | SPST NO |
- New combination of dome/support
- Silicone actuator
- J terminations
- Tape & reel
- IP67
KSC2TE31J Applications
- Elevator
- Game controllers/drones
- Industrial applications
- Medical applications
